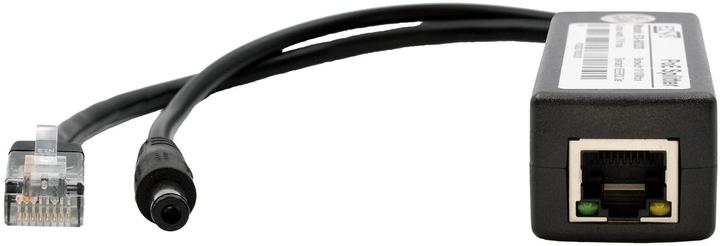

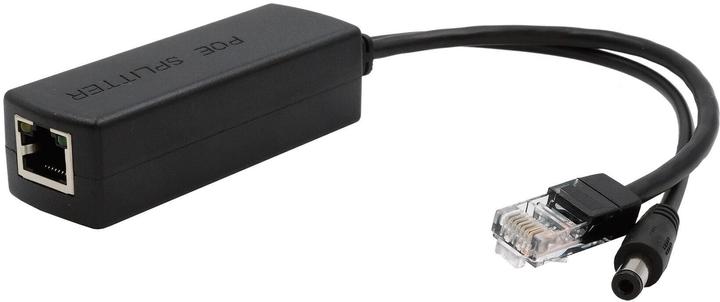

Exsys Ethernt PoE+ Splitter 10/100Mbps 802.3at,12VDC/2A/24W

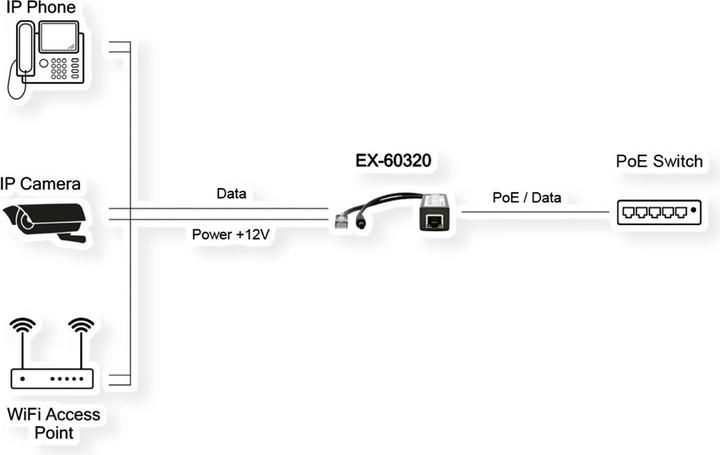

The Ethernet PoE+ Splitter EX-60320 separates the signal from a PoE power source (PSE) into data and power, outputting both signals separately. This allows non-PoE-capable Ethernet devices such as IP cameras and Wi-Fi access points to be connected to a PoE switch or other PSEs and utilize their power supply. It complies with the PoE+ standard IEEE 802.3at and provides a voltage of 12 VDC with a maximum power of 21 W at the DC connector for powering the device. The compact design as an adapter cable offers extremely flexible application possibilities.

• Separates data and power from a PoE signal for powering non-PoE-capable Ethernet devices
• Reduces system cabling, improves system stability and security, and lowers maintenance costs
• Output voltage at the DC connector: 12 VDC, maximum 21 W
• Fully compliant with IEEE 802.3af/at Power Over Ethernet (PoE)
• 10/100Base-TX Ethernet
• Plug and Play, no configuration or installation required
• LED status indicator for PoE power supply
• Compact design as a cable adapter
• Housing made of ABS and flame-retardant polycarbonate plastic
• 2 kV isolation protection, protection against short circuit, overcurrent, and overheating.
