Best Uni-T products in the Multimeter category
On this page you'll find a ranking of the best Uni-T products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Uni-T UT-131C
The UT-131C handheld multimeter from Uni-T is a compact and versatile measuring device suitable for a variety of applications in electrical engineering and electronics. With a digital display of 2000 counts, it allows for precise measurements of voltage, current, and resistance. The device supports both AC and DC measurements up to 250 V and offers a resistance measurement range of up to 20 MΩ. Additionally, the UT-131C features extra functions such as continuity and diode testing, making it a useful tool for both professionals and hobbyists alike. Weighing only 206 g, it is lightweight and portable, making it ideal for on-site use. Its simple operation and clear displays make it a practical choice for anyone needing reliable measurements.
- Maximum current measurement range of 10 A for DC applications
- Resistance measurement range up to 20 MΩ for precise resistance measurements
- Continuity and diode testing functions for added versatility
- Compact design for easy handling and transport.

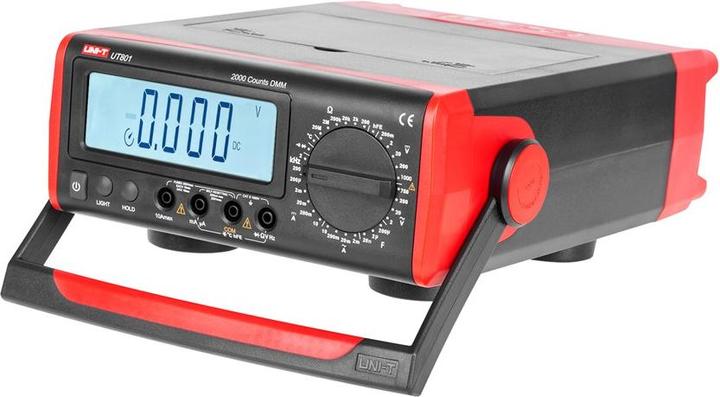

2. Uni-T Laboratory multimeter UT801
The UT801 laboratory multimeter is a high-precision bench multimeter designed for a variety of measurement applications. It offers a wide range of functions suitable for both professional and academic use. With the ability to measure DC and AC voltages, DC and AC currents, resistances, capacitances, frequencies, and temperatures, the UT801 is a versatile tool for technicians and engineers. Its measurement accuracy and various measurement ranges allow for precise results in different scenarios. The device features a backlit LCD display that ensures clear readability of measurements, even in poor lighting conditions. Additionally, the multimeter includes functions such as diode testing, continuity testing, and transistor hFE testing, making it a comprehensive measuring instrument. Its ease of use and the ability to manually switch measurement ranges make the UT801 a practical choice for anyone needing reliable measurements.
- Advanced measurement functions for DC and AC voltage as well as current
- High measurement accuracy of ±(0.5% + 2) for DC voltage
- Backlit LCD display for better visibility
- Functions for diode testing, continuity testing, and transistor hFE testing
- Maximum measurement value of 2000 with a voltage measurement input resistance of approximately 10 MOhm.

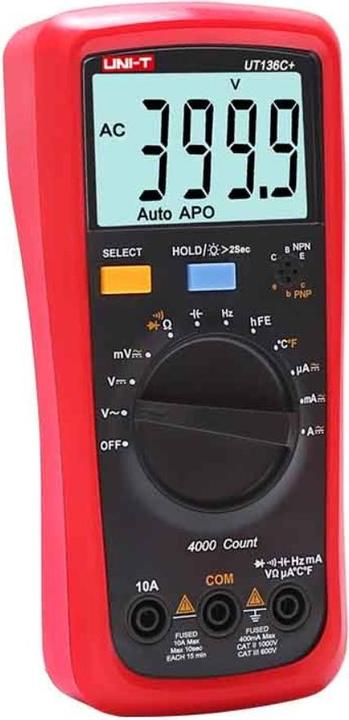

3. Uni-T UT136C+
This UT136C+ multimeter from UNI-T is the successor to the popular UT136B, this compact digital multimeter is perfect for electronics and Arduino enthusiasts. As it has an autorange function, measurements are always taken with the best accuracy and there is no need for tedious repositioning of the measuring device. The multimeter is ideal for the laboratory, workshop, hobby and household. The UT136C multimeter can now also measure temperatures and transistors, which the previous model could not do. Two AA batteries are still required, these are not included in the scope of delivery.

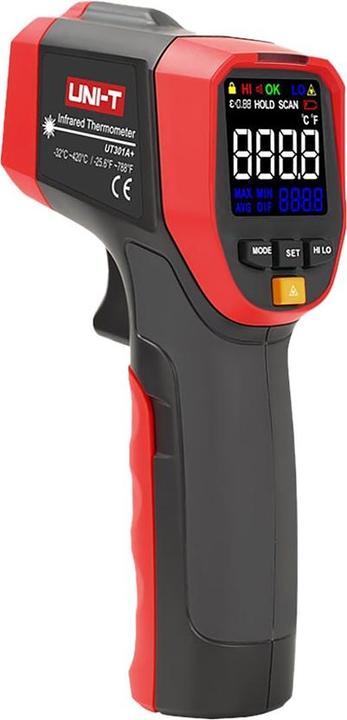

4. Uni-T Temperature measuring device UT301A+
UT301 series infrared thermometers are professional tools for fast and accurate non-contact temperature measurement. TEMPERATURE RANGE: -32 °C ~ 420 °C; -25.6 °F ~ 788 °F Accuracy: > 0 °C: ± 1.5 °C or ± 1.5 %, - 32 °F: ± 3 °C or ± 1.5 %, - <32 °F: ± (3 °F + 0.1 °F / °F) Repeatability: 0.7 °C or 0.7 %; 1.5 °F or 0.7 % Ratio distance to test surface: 12:1 (95 %) Response time: <= 250 ms (95 % of reading) Emissivity: 0.1 ~ 1 (adjustable) Spectral sensitivity: 8 µm ~ 14 µm Laser type: class 2 (II) Laser power: <1 mW Laser wavelength: 630 nm ~ 670 nm ADDITIONAL FUNCTION Selection: ° C / ° F Freeze last measurement Auto power off Low battery indicator Displays maximum/minimum/average/different temperature. LCD display with illumination Can be mounted on a tripod. Upper and lower limit alarms. GENERAL FEATURES. Power supply: 9 V battery. Display size: 30 x 30 mm. Dimensions: 160 x 74 x 48 mm. Product weight (without batteries): 204 g. Accessories: Battery, case.

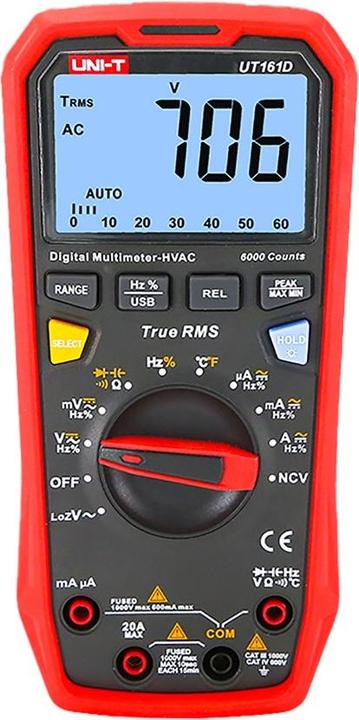

5. Uni-T UT161D
The UT161D is a versatile handheld multimeter designed for precise measurements in various applications. It features automatic range switching, which makes operation easier and increases efficiency. With the capability for true RMS measurement, the device provides accurate results when measuring alternating voltages and currents. A notable feature is the measurement of electromagnetic field intensity, which is significant for professionals in electrical engineering. The multimeter includes a low-pass filter that minimizes interference in the measurements. Additionally, users can freeze the last measurement and record maximum, minimum, and peak values, allowing for comprehensive analysis of the measurement data. The analog bar graph with 31 segments offers a visual representation of the readings, while the automatic shutdown helps save energy.
- True RMS measurement for precise AC measurements
- Measurement of electromagnetic field intensity
- Low-pass filter to minimize interference
- Recording of maximum, minimum, and peak values
- Analog bar graph with 31 segments for visual representation.

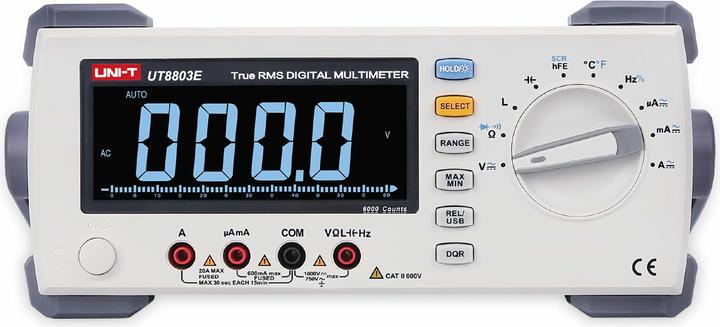

6. Uni-T True RMS Desktop Multimeter UT8803E
The UT8803E True-RMS bench multimeter from UNI-T features a large, easy-to-read display and a USB interface, allowing the device to be remotely controlled and read from a PC. It is suitable for the following measurements:.

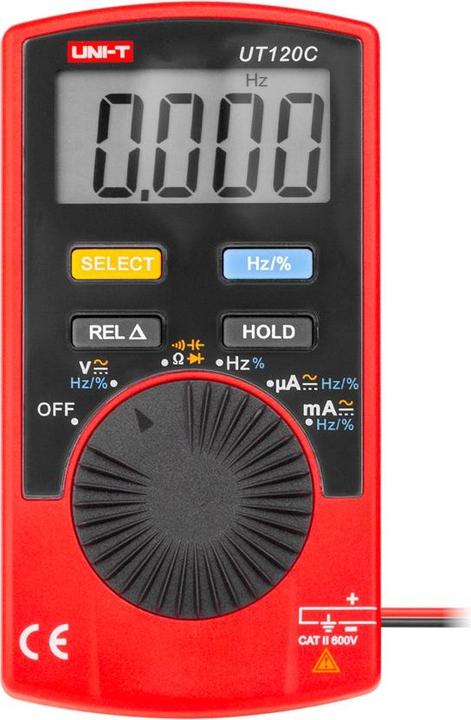

7. Uni-T Universal multimeter UT120C
Lightweight, portable pocket-sized multimeter with automatic range selection. It allows for the measurement of DC and AC voltage, frequency, impedance, and capacitance. With the data storage function, you can save the result of the last measurement, and the standby mode helps to conserve energy. Powered by a 3V battery, which is also included. A digital display indicates the battery level. Built-in buzzer for circuit continuity testing.
Specifications:
- DC Voltage: 400 mV / 4000 mV / 40 V / 600 V DC
- AC Voltage: 4 V / 40 V / 400 V / 600 V AC
- DC Current: 400 μA / 4 mA / 40 mA / 400 mA DC
- AC Current: 400 μA / 4 mA / 40 mA / 400 mA AC
- Resistance: 400 Ω / 4 kΩ / 40 kΩ / 400 kΩ / 4 MΩ / 40 MΩ
- Capacitance: 4 nF / 40 nF / 400 nF / 4 µF / 40 µF / 200 µF
- Frequency: 10 Hz to 100 kHz
- Automatic range selection
- Standby mode
- Buzzer
- Data storage function
- Battery indicator
- LCD 4000 (43 x 22 mm) screen
- Dimensions: 110 x 58 x 11 mm
- Power source: 3 V battery (CR2032)
- Weight: 62 g
Included in the package: test leads, case, 3V battery, instructions in Polish and English. Warranty: 24 months.

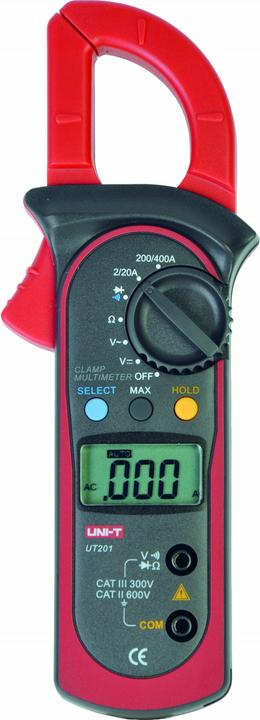

8. Uni-T Miernik uniwersalny UT-201 (MIE0067)
The universal multimeter UT-201 is a digital measuring device designed for a variety of applications in electrical engineering and electronics. It offers the capability to measure both direct and alternating voltages and meets measurement category CAT II up to 600V. With a compact design and a weight of only 0.284 kg, it is both portable and user-friendly. The current clamp has an opening range of 28 mm, allowing for easy handling when measuring current. The dimensions of the device are 5.5 cm in length, 9.5 cm in width, and 27.5 cm in height, making it a practical tool for technicians and hobbyists. The UT-201 is ideal for precise measurements in various electrical applications and provides reliable performance in a robust housing.
9. Uni-T UT139S True RMS Digital Multimeter
The UNI-T UT139S True RMS Digital Multimeter is a versatile measuring instrument for electricians. It can measure voltage, current, resistance, capacitance, frequency, and temperature. It features a True RMS function for accurate measurements of non-linear signals. Additionally, it has a NCV function that can effectively check the electrical status by measuring the EM field intensity. A special feature of the UT139S is the LoZ function (ACV), which is used to measure "ghost voltages." The device also has a built-in 31-segment analog bar display that provides a better visual representation of the measurement results. The UT139S has a black EBTN display and is ideal for working in dark environments. The device is CAT III 600V rated and comes with batteries, test leads, and a temperature probe.
Features:
- MAX/MIN/REL modes
- Data Hold, LED backlight, automatic shutdown
- Full range protection (600V)
- True RMS
- NCV
- Selectable auto/manual ranges
Technical Details:
- Manufacturer: UNI-T
- Manufacturer SKU: UT139S
- DC Voltage (V): 0~600V ± (0.5%+2)
- AC Voltage (V): 0~600V ± (0.8%+3)
- DC Current (A): 0~10A ± (0.7%+2)
- AC Current (A): 0~10A ± (1%+3)
- Resistance (Ω): 0~60MΩ ± (0.8%+2)
- Capacitance (F): 0~99.99mF ± (4%+5)
- Frequency (Hz): 10Hz~10MHz ± (0.1%+4)
- Temperature (°C): -40°C~1000°C ± (1%+4)
- Number of Displays: 6000
- Auto Range/Manual Range/True RMS: Yes
- Bandwidth (Hz): 45Hz~400Hz
- NCV/Continuity Buzzer: Yes
- Duty Cycle: 0.1%~99.9%
- Diode: Approximately 3V
- LPF/LoZ (ACV): Yes
- Analog Bar: Yes
- Power Supply: 1.5V Battery (R6) x 2
- Display: 58mm x 36mm
- Dimensions: 170 x 80 x 48mm
- Weight: 560g
Included in the package:
- 1x UNI-T UT139S True RMS Digital Multimeter
- 2x AA Batteries
- 1x Black/Red Test Leads
- 1x Temperature Probe
- 1x English Manual.

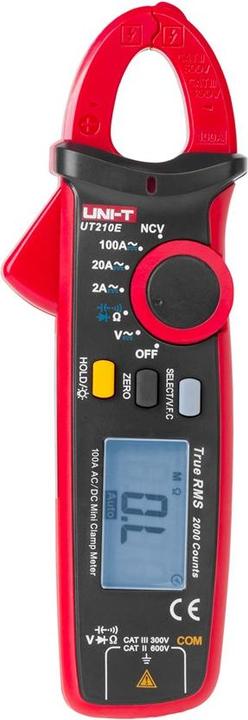

10. Uni-T UT-210E
The UT-210E is a universal digital multimeter with connections that can measure high voltages. Thanks to the device, it is possible to measure voltage, electrical current, resistance and capacitance. In addition, the measuring device has an electric field detection function (NCV). The meter has a True RMS converter, thanks to which it is possible to accurately measure the efficiency of electric current and voltage, both sinusoidal and shapeless currents.
