Best Schneider Electric products in the Multimeter category
On this page you'll find a ranking of the best Schneider Electric products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

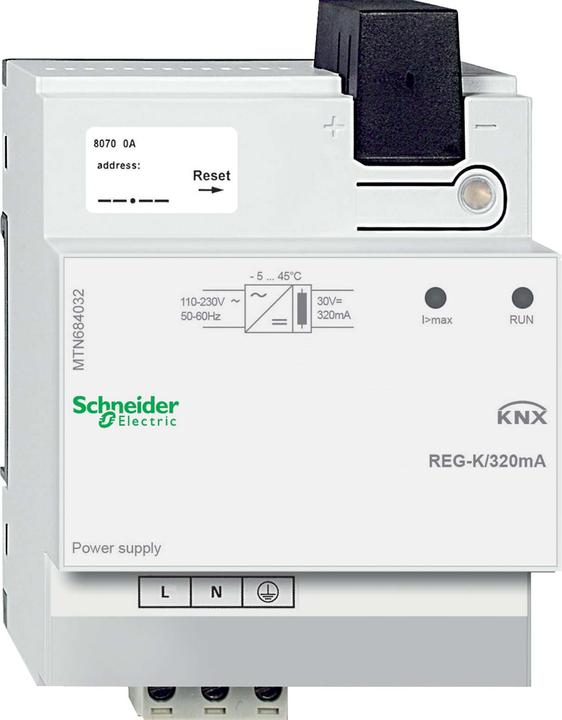

1. Schneider Electric KNX power supply REG-K/320 mA, light grey
Schneider Electric KNX Power Supply MTN684032
Manufacturer: Schneider Electric
Designation: KNX Power Supply REG-K/320 mA
Type: MTN684032
KNX Bus System: yes
KNX Wireless Bus System: no
Wireless Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: none
Mounting Type: REG
Width in Division Units: 4
With LED Display: yes
Bus Voltage Bufferable: no
Number of Integrated Chokes: 1
Number of Supplyable Lines: 1
Max. Output Current: 320 mA
Secondary Voltage: 30 V
The Schneider Electric KNX Power Supply MTN684032 generates the bus voltage for a line with a maximum of 64 bus participants. It features an integrated choke to decouple the power supply from the bus, as well as a button for power interruption and resetting the bus participants connected to the line. Installation is done on TH35 DIN rails according to EN 60715. The bus connection is made via a bus connection terminal; a data rail is not required.
Mains Voltage: AC 110 - 230 V, 50-60 Hz
Output Voltage: DC 30 V
Output Current: maximum 320 mA, short-circuit proof
Device Width: 4 TE, approximately 72 mm
Scope of Delivery: With bus connection terminal and wiring cover.
Color: light gray.
EAN: 3606485104935.
2. Schneider Electric Lighting block LED white 24V
Block type: Light block
Series: Harmony XB
Illumination color: White
Operating voltage: 24 V
Illumination type: LED
Connection type: Screw mounting
UL, CSA, IEC, JIS. Integrated LED housing, front mounting. For use with XB4 and XB5 series pushbutton stations and signal devices. Not suitable for use with XAL rear mount enclosures.

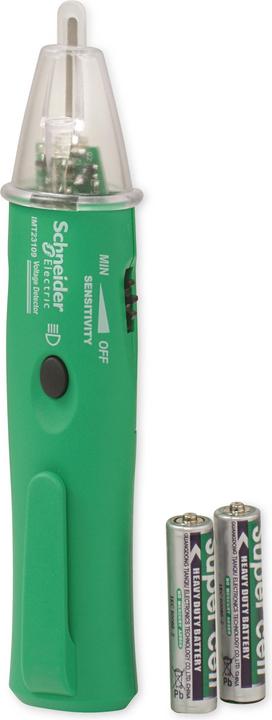

3. Schneider Electric THORSMAN Voltage Detector IMT23209, contactless
The THORSMAN IMT23209 from Schneider Electric is a non-contact voltage tester designed for the safe and efficient inspection of electrical circuits and cables. With a compact design and user-friendly operation, this voltage tester allows for quick and precise detection of alternating voltage in the range of 5 to 1000 V. The acoustic and optical indicators, supported by a bright red LED, ensure reliable signaling even in noisy environments. The voltage tester is suitable for use in demanding electrical environments, as it meets the measurement category CAT IV up to 1000 V. Additionally, the ergonomic design provides comfortable handling, while the integrated flashlight function adds extra versatility. The THORSMAN IMT23209 is therefore an essential tool for professionals working in electrical installation and maintenance.
- Acoustic and optical voltage indication with bright red LED
- Adjustable detection sensitivity for precise measurements
- Ergonomic design for comfortable handling
- Integrated flashlight for additional functionality
- Battery status indicator to monitor power supply.

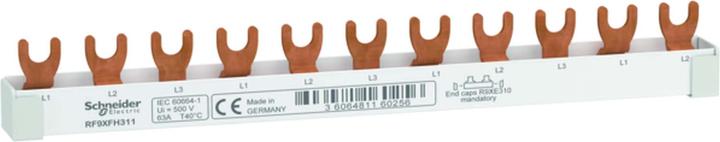

4. Schneider Electric Resi9 Fork phase bar, 3P, 11 TE, 63A, can be cut to length
Phase bar fork Resi9 3-pole, 11HP, can be cut to length, rated current 63A, operating voltage 230/400V AC, insulation voltage 500V. Colour RAL 7035.
Touch-proof busbar block, three-phase busbar block, three-phase busbar system, three-phase busbar, single-phase busbar, fork comb rail, equipment mounting rail, comb rail, compact phase rail, slotted rail, line bridge, phase rail, busbar block, busbar system, rail, rail block, pin comb rail, busbar, universal comb rail, connection, wiring bridge, wiring rail, busbar system.
5. Schneider Electric THORSMAN Multimeter IMT23212
The THORSMAN Multimeter IMT23212 from Schneider Electric is a compact and handy digital measuring device designed for basic electrical measurements. It is ideal for use in various applications, both professional and private. With an ergonomic design and an LCD display, it allows for easy and precise reading of measurement values. The multimeter supports a variety of measurement functions, including the measurement of DC and AC voltage, current, resistance, and continuity. The integrated test leads and hands-free operation make it particularly user-friendly. With a measurement category of CAT III 300V, it also offers high safety during use.
- Ergonomic design for hands-free operation
- Integrated test leads for easy handling
- LCD display for clear readability of measurement values
- Supports basic measurements: voltage, current, resistance, continuity
- Safety certification: CAT III 300V.
6. Schneider Electric Reversing contactor LC2K0910P7
Area: TeSys K
Series: LC2K
Number of Poles: 3
Coil Voltage: 230 Vac
Rated Contact Current: 9 A
Rated Contact Voltage: 690 Vac
Contact Configuration: 3 Normally Open
Number of Auxiliary Contacts: 1
Power: 4 kW
Connection Type: Screw Terminal
Width: 90 mm
Maximum Operating Temperature: +50 °C
3-pole reversing contactors with screw terminal connection. The contactors have a switching voltage of 440 Vac and a power consumption (AC coils for 50/60 Hz) of 4.5 VA (holding) and 30 VA (inrush current). These are complete units, meaning that two switches from the "K" series are interconnected with an integrated mechanical interlock to ensure that only one set of 3 poles is closed at a time.

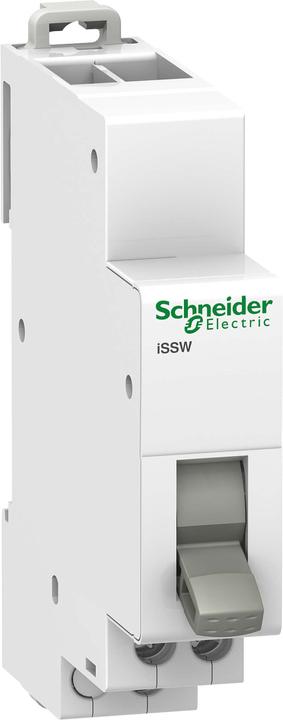

7. Schneider Electric ISSW White Electric Switch
The ISSW White Electric Switch from Schneider Electric is a versatile group switch designed for use in various electrical applications. With a switching function as a toggle switch and a rated current of 20 A, this switch is ideal for controlling circuits in residential and commercial installations. The switch is rated for a voltage of 250 V and offers high reliability and safety. Its compact design, with a width of 18 mm, allows for easy integration into standard installations. The ISSW Electric Switch meets the requirements of protection class IP40, which protects it from dust and splashes. This makes it a robust choice for various environments. The thermal-magnetic release unit provides additional protection against overload and short circuits, while the option to combine it with optional auxiliary modules expands its functionality. The switch is finished in a classic white, making it aesthetically pleasing and versatile.
- Switching function as a toggle switch with 3 positions
- Thermal-magnetic release unit for additional protection
- Can be combined with optional auxiliary modules for functionality expansion
- Complies with standards IEC/EN 60898-1 and IEC/EN 60947-2
- Protection class IP40 for increased robustness.
8. Schneider Electric Reversing contactor LC2D25P7
The LC2D25P7 reversing contactor from Schneider Electric is a versatile and reliable device designed for controlling electric motors and other applications in the industry. With a rated current of 25A and an operating voltage of up to 440V at AC 50/60 Hz, this reversing contactor offers high performance and flexibility. The mounting on DIN rails allows for easy installation and integration into existing systems. The LC2D25P7 is equipped with three main contacts and two integrated auxiliary contacts, enabling versatile use in various applications. The IP20 protection rating provides adequate protection against contact and the ingress of solid foreign objects. This product is ideal for applications that require reliable and efficient control.
- 3-pole reversing contactor combination with 1 normally closed and 1 normally open contact
- Expandable by up to four additional auxiliary contacts
- DIN rail mounting for easy installation
- Spatially and color-coded control and power levels
- Sealable base design for added safety.
9. Schneider Electric THORSMAN Multifunction Cable Finder with Transmitter and Receiver
Multifunction Cable Locator
The transmitter is a compact handheld device that allows you to detect and trace cables within walls. It is especially useful for repairing old wiring. The device should only be used with power circuits turned off. It is designed to emit a specific tone in de-energized wires or cables, which can be detected by the receiver. An LED serves as a visual indicator, signaling that the device is powered on.
Features:
- Multifunction device consisting of a transmitter and a wireless receiver
- Audible detection of de-energized electrical lines
- Handy ergonomic receiver
- Connectors for telephone lines, coaxial cables, and two alligator clips
- DC vehicle wiring
Power:
- Transmitter: 4 pieces of 1.5V type LR44 or equivalent
- Receiver: 2 pieces of 1.5V type AAA or equivalent
Weight: 220 g (with battery)
Dimensions (H x W x D): 183 x 80 x 46 mm
Measuring devices: Digital multimeter.
