Best Pancontrol products in the Multimeter category
On this page you'll find a ranking of the best Pancontrol products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Pancontrol PAN185 Multisensor Meter
- Digital display 20 mm
- Backlighting
- Display value up to 3999
- Automatic and manual range selection
- Data retention
- Capacity measurement
- Frequency measurement
- Temperature measurement
- Humidity measurement
- Light intensity measurement
- Relative value measurement
- Measurement of the sound level
- Service factor in % (PBM) 1 - 99
- Automatic shutdown
Technical data.
- DC voltage (V =): 0.1 mV - 1000 V
- AC voltage (V ~): 0.1 mV - 750 V
- DC current (A =): 0.1 μA - 10 A
- AC current (A ~): 0.1 μA - 10 A
- Resistance (Ω): 0.1 Ω - 40 MΩ
- Frequency (Hz): 0.01 Hz - 100 kHz
- Capacitance (F) : 10 pF - 100 µF
- Temperature (°C) (K type probe) : -20 °C - +1000 °C
- Relative humidity (% RH): 30-95 %.
- Ambient temperature: 0 °C - 40 °C
- Noise level (dB): 35 dB - 100 dB
- Light intensity (lux) : 1 lux - 40 000 lux
- Acoustic continuity tester -)))): <50 Ω
- Accuracy (%): 0.7 % - 5.0 %.
Dimensions 204 x 93 x 57 mm
Weight (gross / net) 846 / 361 g
Required battery(ies): 4x 1,5V AAA
Measurement category (CAT) CAT III 1000 V / CAT IV 600 V
Scope of delivery :
- Operating instructions
- Test cable
- Type K temperature sensor
- Bag.
2. Pancontrol PAN200A Digital Current Clamp
The PAN200A Digital Clamp Meter from Pancontrol is a versatile multimeter designed for precise measurements in various electrical applications. With a digital display that shows up to 5999 values, this device provides a clear and easily readable representation of measurement data. The backlight allows for use even in low-light conditions. The clamp has an opening of 20 mm, making it ideal for measuring currents in tight spaces. It supports a variety of measurement functions, including resistance measurement, frequency measurement, and a single-pole phase test. The automatic range selection ensures user-friendly handling, while the Data Hold function makes it easy to retain measurement values. Additionally, the clamp meter is equipped with a non-contact voltage tester, allowing for safe voltage checks. With a measurement tolerance of 0.5 to 2.5% and a CAT III 600V certification, this device is suitable for professional use.
- Digital display with up to 5999 display values
- Automatic range selection for easy operation
- Non-contact voltage tester (NCV) for added safety
- Acoustic continuity tester with a threshold of < 30Ω
- CAT III 600V certification for professional applications.
3. Pancontrol PAN 3000 Flexible Current Clamp
The PAN 3000 Flexible Clamp Meter from Pancontrol is a versatile multimeter designed for precise measurements in demanding electrical applications. With True RMS technology, this device allows for accurate measurements of both alternating and direct current, even with non-sinusoidal signals. The digital display is dual-line and features a backlight, ensuring easy readability even in low light conditions. The clamp has a generous opening width of 160 mm, making it easier to measure thick cables. Additionally, the PAN 3000 offers a variety of functions, including resistance measurement, frequency measurement, and an acoustic continuity tester that activates for resistances below 50 Ohms. The automatic shut-off and data hold function enhance user-friendliness, while the robust construction and safety certification according to CAT IV 600V ensure suitability for use in demanding environments.
- True RMS measurement for precise results
- Dual-line digital display with backlight
- Acoustic continuity tester for resistances < 50 Ohms
- Automatic range selection for easy handling
- LED measurement point illumination for better visibility.
4. Pancontrol Allgemeines Produkt
5. Pancontrol PAN POCKETMETER Pocket multimeter
The PAN POCKETMETER pocket multimeter from Pancontrol is a compact and versatile measuring device that is ideal for various applications in electrical engineering. With its True-RMS function, it allows for precise measurements of AC and DC voltages up to 600 V. The illuminated 21.5 mm digital display ensures clear readability, even in low light conditions. The automatic function selection simplifies operation and enables quick adjustment to different measurement requirements. The device is equipped with a non-contact voltage tester that provides a three-level display and is complemented by an acoustic alarm. Additionally, the multimeter offers a variety of functions, including frequency measurement, capacitance measurement, and diode testing, making it an indispensable tool for professionals and hobbyists alike.
- True-RMS for precise measurements
- Non-contact voltage tester with 3-level display and acoustic alarm
- Automatic range selection for easy operation
- LED flashlight for additional lighting
- Includes test leads and storage pouch.
6. Pancontrol PAN Volttester 400 2-pole voltage tester
The PAN Volttester 400 is a reliable 2-pole voltage tester designed for measuring alternating and direct current voltages in the range of 6 to 400 V. With a clear LED display, it allows for easy and precise reading of voltage values. The voltage tester is particularly user-friendly as it does not require a battery, making it ready for use at any time. Thanks to its robust design and IP 64 protection class, it is splash-proof and dust-proof, making it ideal for use in various environments. The polarity indication for direct current provides additional safety during application. The PAN Volttester 400 is an essential tool for professionals and hobbyists who need precise voltage measurements.
- LED display for voltages from 6 - 400 V AC/DC
- Low voltages up to 24 V are shown in green, dangerous voltages from 50 V in red
- Polarity indication for direct current
- Maximum current consumption of 25 mA at 400 V
- Splash-proof and dust-proof according to IP 64.
7. Pancontrol Cable tester PAN LAN1, 600, 162 x 74.5 x 44 mm
The PAN LAN1 cable tester from Pancontrol is a versatile multimeter specifically designed for testing LAN connections. With a digital display of 21 mm and a display value of up to 1999, this device offers a precise and user-friendly way to test various cable types. The tester is capable of detecting continuity, breaks, short circuits, and swapped conductors, making it an indispensable tool for professionals in the field of network technology. The automatic range selection and continuous testing function allow for efficient use, while the acoustic continuity tester provides additional safety during troubleshooting. The PAN LAN1 is suitable for various cable standards such as RJ45, RJ11, and BNC and comes with a test cable as well as a handy storage pouch. With a measurement category of CAT II 600V and CAT III 300V, this device is suitable for a wide range of applications and offers a measurement tolerance of 0.5 to 2%.
- Digital display with a display value up to 1999
- Max value memory for precise measurements
- Automatic range selection for easy operation
- Integrated diode test and acoustic continuity tester
- Package includes test cable and storage pouch
- Suitable for RJ45, RJ11, and BNC cable types.
Multimeter
CHF121.87
Pancontrol Cable tester PAN LAN1, 600, 162 x 74.5 x 44 mm
CAT II 600V, CAT III 300V
8. Pancontrol PAN Minimeter
The PAN Minimeter from Pancontrol is a digital multimeter designed for a variety of electrical measurements. It offers non-contact voltage testing with a two-stage display, allowing for easy and safe handling. With a 21 mm digital display and backlighting, reading values is effortless even in poor lighting conditions. The device supports both AC and DC measurements and is equipped with an acoustic alarm function for single-pole phase testing. Additionally, the multimeter features functions such as diode testing, battery testing, and a data hold function that allows users to store and display measurement values. The automatic shutdown feature ensures a longer battery life, making the device particularly user-friendly. The PAN Minimeter is thus a versatile and reliable tool for both professionals and hobbyists alike.
- Non-contact voltage tester with two-stage display (NCV)
- Single-pole phase testing with acoustic alarm
- Integrated LED flashlight for better visibility
- Data hold function for storing measurement values
- Automatic shutdown to extend battery life.
9. Pancontrol PAN 186 - Digital multimeter IP67
The PAN 186 digital multimeter from Pancontrol is a versatile handheld multimeter designed for precise measurements in various applications. With an IP67 protection rating, it is dustproof and protected against temporary immersion in water, making it ideal for use in demanding environments. The digital display, featuring a 27 mm size and backlighting, allows for clear readability even in low-light conditions. The device offers a wide range of functions, including the measurement of AC/DC voltages up to 1000 V, resistances up to 60 MΩ, and temperatures from -20 °C to +1000 °C. The automatic range selection and True-RMS technology ensure accurate measurements, while the non-contact voltage tester with a three-level display provides additional safety. The multimeter comes with test leads, a Type K temperature probe, and batteries, making it a complete set for professionals and tech enthusiasts.
- True-RMS measurement for precise results
- Non-contact voltage tester with three-level display
- Automatic range selection for easy handling
- Temperature measurement from -20 °C to +1000 °C
- IP67 protection rating for use in harsh environments.

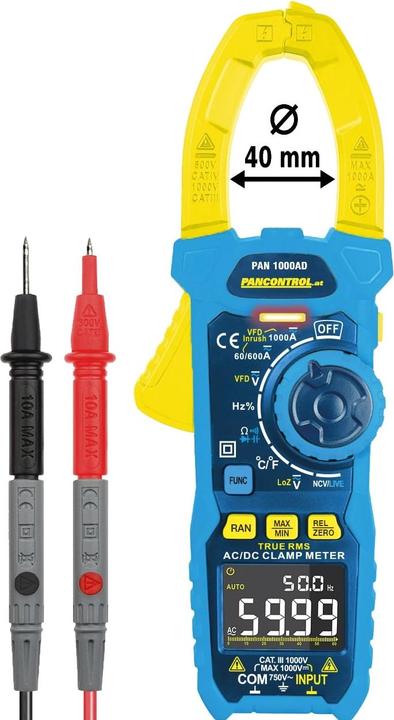

10. Pancontrol True RMS current clamp PAN 1000AD, 1000 A
The digital clamp meter PAN 1000AD from Pancontrol is a versatile measuring device designed for precise current measurements up to 1000 A in both AC and DC ranges. With a 13 mm large digital display featuring a color screen and backlighting, this device allows for clear and easily readable measurement values, even under challenging lighting conditions. The automatic range selection ensures user-friendly operation, while the True-RMS technology guarantees accurate measurement of effective values. The clamp meter is equipped with a variety of functions, including a single-pole phase test with acoustic alarm, temperature measurement, and capacitance measurement. Its robust construction and practical carrying case make the PAN 1000AD an ideal companion for professionals and technology enthusiasts who value precision and reliability.
- True-RMS measurement for precise results
- Non-contact voltage tester with acoustic alarm
- Min/Max memory and peak value memory
- Frequency and capacitance measurement
- Includes carrying case and accessories.
