Best Elbro products in the Multimeter category
On this page you'll find a ranking of the best Elbro products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Elbro Testy 2
Socket tester with RCD trip. Measurement category: CAT III 300 V. Voltage range: 230 V AC ± 15%. Test current: ≤ 3.5 mA. Capacitive sensor detects if it is being held in hand. Easy-to-read and illuminated LCD display. Dimensions (L x W x H): 73 x 93 x 26 mm. These socket testers are essential testing devices for every professional. All life-threatening connection errors in the sockets are displayed by the testers on the large, illuminated display. This allows for quick and safe verification of installations. Additionally, the voltage between L and N is measured and displayed as "correct / incorrect." The TESTY 2 is also equipped with an RCD testing circuit, which allows for testing various RCDs with rated currents from 10 mA to 500 mA with a tripping time of 200 msec. Furthermore, the TESTY 2 measures the tripping time and displays it on the LED display in [msec]. The RCD testing is controlled by a microcontroller that starts the test precisely at the zero crossing. With these testing devices, it is not necessary to place a finger on a metal electrode, as the built-in capacitive sensor detects when it is being held in hand. The TESTY 1 and TESTY 2 can be used to test sockets, extension cords, device cables, and connection lines in 230 V networks. Use in recreational areas, such as boats and caravans, is possible with an adapter. The connection of the conductors and the phase position are tested.

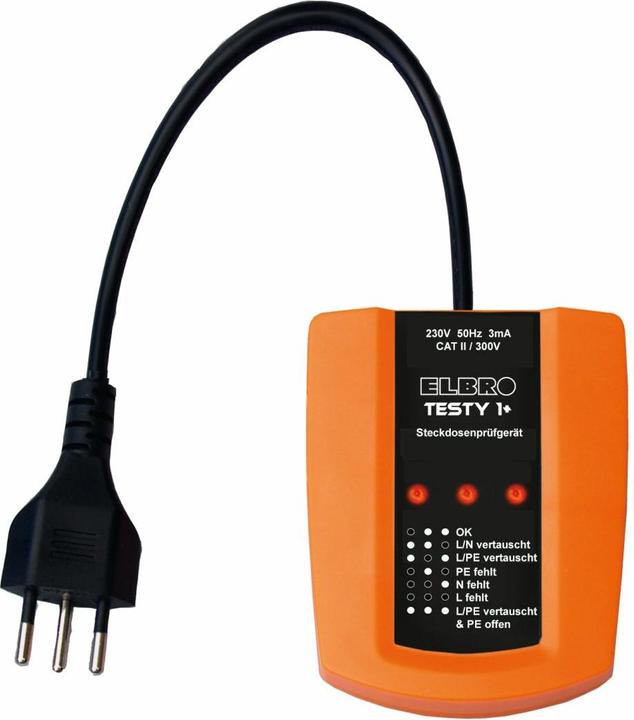

2. Elbro Testy 1+
The Testy 1+ is an easy-to-use socket testing device and is essential for every professional. With the Testy 1+, sockets, extension cords, appliance cables, and connection cables in 230V AC systems can be quickly and safely tested. Its use in recreational areas, such as boats and caravans, is possible with the use of an adapter. The connection of the conductors and the phase position are tested.
3. Elbro Rotary Field Tester 3000
The Elbro Drehfeld-Tester 3000 is a highly advanced testing plug specifically designed for electrical engineering. With its optical display supported by six LEDs, it provides a precise and clear representation of the phase rotation direction. The tester is capable of measuring voltages of 400 V between phase and neutral, as well as 100 to 700 V between phases. The housing is made of impact- and break-resistant ABS plastic, ensuring high durability and resilience. Additionally, the device is certified according to the standards EN 61010-1, EN 61557-7, and EN 61010-031, highlighting its safety and reliability. The Drehfeld-Tester 3000 comes with three differently colored measuring leads connected with safety plugs for easy handling. Weighing 343 g and featuring a compact design, it is suitable for both professional use and private applications.
- Optical display with 6 LEDs for clear representation of phase rotation direction
- Voltage range of 400 V (phase to neutral) and 100-700 V AC (phase to phase)
- Housing made of impact- and break-resistant ABS plastic for high durability
- Complies with safety standards EN 61010-1, EN 61557-7, and EN 61010-031
- Includes 3 differently colored measuring leads with safety plugs.
4. Elbro Multimeter
The Elbro BM 27 is a versatile multimeter that allows for both digital and analog measurements. It is a compact and handy device, ideal for various applications in electrical engineering. With automatic range selection and automatic function selection, it offers user-friendly operation suitable for both professionals and hobbyists. The multimeter has a basic accuracy of 2% and can measure a variety of electrical quantities, including DC and AC voltage, resistance, and capacitance. The integrated acoustic continuity tester facilitates troubleshooting in electrical circuits. The device is powered by a CR2032 miniature cell and provides reliable performance in a robust plastic housing.
- Automatic range selection for easy operation
- Acoustic continuity tester for quick fault diagnosis
- Diode test function for additional measurement options
- Measurement category CAT II 600V and CAT III 300V for versatile applications
- Digital display with 6000 digits for precise measurement values.

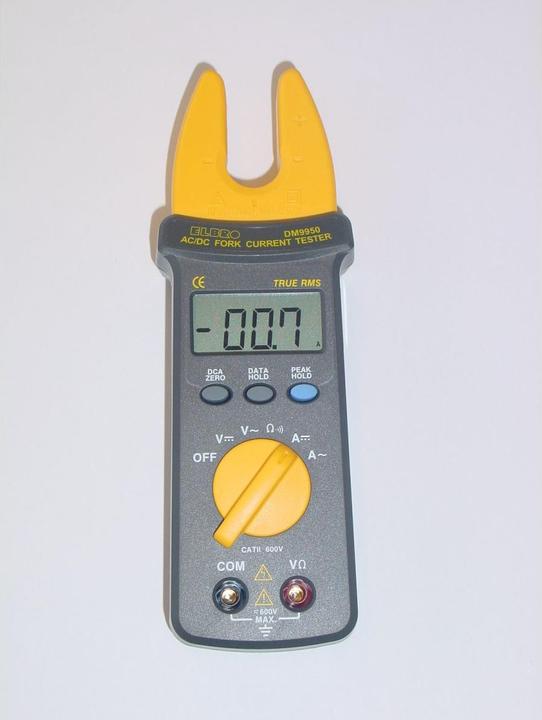

5. Elbro Pliers instrument Dm9950
The DM9950 clamp meter from Elbro is a precise clamp ammeter designed for the digital measurement of electrical currents. It offers a variety of features that make it an essential tool for professionals in the field of electrical engineering. With its True RMS measurement capability, the device allows for accurate measurements of both alternating and direct currents. The robust plastic housing ensures durability and protects the sensitive electronics. The LED display provides clear and easily readable results, while the overload and battery status indicators offer additional safety and user-friendliness. The DM9950 is ideal for applications requiring precise current measurements and is suitable for both professional use and home use.
- True RMS measurement for precise results
- LED display with overload and battery status indicators
- Data hold and peak hold functions for easy reading
- Robust plastic housing for durability
- Compliant with IEC 1010 and Electrosuisse standards.
6. Elbro Soil tester
The ET24 meets all the criteria of the protocols according to the safety report and professionally controls the grounding connections, protective conductors, and potential equalizations according to NIV/NIN. It complies with the standards EN 61010-1: 2010, EN 61557-1-2-4, EMC IEC / EN 61326-1: 2013, and IEC / EN 61326-2-2: 2013.
Technical Data:
- OLED display
- Test current: > 200 mA
- Test voltage: > 4 V
- Measurement range: 0.00 to 29.9 W
- Resolution: 0.01 Ω
- Audible signal can be set to 1 or 2 Ω
- Stores the last measurement value even after being switched off
Delivered with:
+ 9 V battery (LR22 / 6LR61)
Delivered without case.
7. Elbro Multimeter BM2803CSE TRMS
The multifunction measuring instrument ELBRO BM2803CSE TRMS is a versatile and precise device that allows both digital and analog measurements. It is specifically designed for professionals and technology enthusiasts who require reliable measurements in various applications. With a robust plastic housing and a compact design, it offers user-friendly handling. The automatic range selection and data hold function make it easy to use, while the acoustic continuity tester and diode tests provide additional functionalities. The device supports AC True RMS conversions, ensuring accurate measurement of alternating current signals. Its high protection according to the standards EN61010-2-033 CAT III 1000V and CAT IV 600V makes it a safe choice for demanding environments. The package includes a removable protective cover, test leads, and batteries, ensuring the device is ready for use immediately.
- Automatic shutdown for energy saving
- Relative measurement for precise comparisons
- High protection according to EN61010-2-033 CAT III 1000V and CAT IV 600V
- Acoustic continuity tester and diode test for additional functionality
- Includes removable protective cover and tilt stand for easy handling.

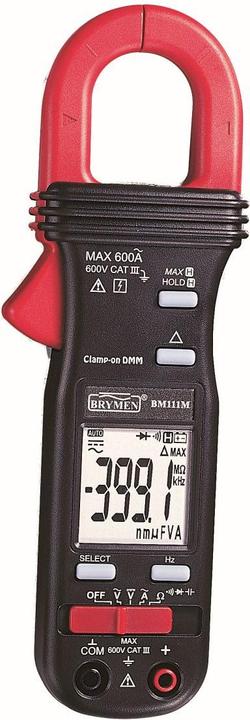

8. Elbro Digital clamp instrument BM111
The BM111 digital clamp meter from Elbro is a versatile clamp current measuring device suitable for both AC and DC measurements. With a robust plastic housing and a compact design, it is ideal for use in various environments. The device features a precise digital display with 4000 digits and allows for a wide range of measurements, including voltages up to 600 V and capacitances up to 3000 µF. The integrated data hold function enables the storage of measurement values, while the automatic shut-off contributes to energy savings. The BM111 is equipped with continuity and diode testing and comes with a test lead and a handy carrying case, making it a useful tool for professionals and hobbyists alike.
- Digital display with 4000 digits for precise measurements
- Measurement range for voltages up to 600 V AC/DC
- Integrated data hold function for storing measurement values
- Continuity and diode testing for added functionality
- Package includes test lead and carrying case.

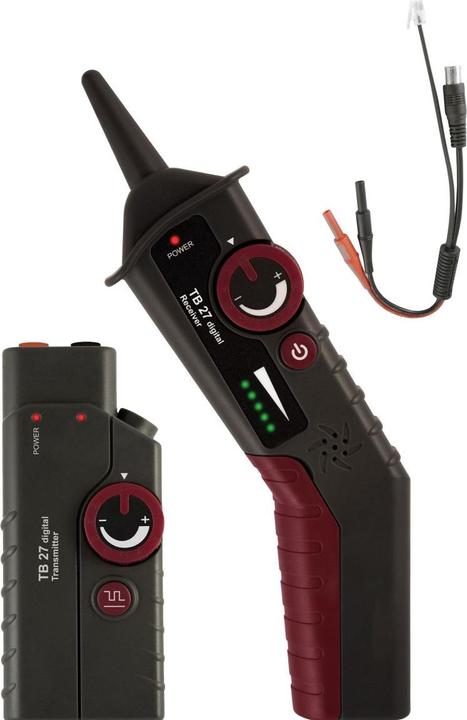

9. Elbro Line detector TB27 DIGITAL 400V black
The ELBRO TB27 DIGITAL cable locator is a versatile multimeter designed for the precise localization of electrical lines and cables. With a voltage rating of up to 400 V, this device is suitable for both professional and private applications. The transmitter and receiver are ergonomically designed for user-friendly handling. The sensitivity of the device can be individually adjusted to achieve optimal results. The display is both visual and acoustic, making it easier to use in various environments. The device is powered by batteries and is suitable for operating temperatures ranging from 5 to 40 °C. The package includes a ground spike, a carrying case, and a set of adapters with coaxial, F, and RJ11 connectors, further enhancing the device's versatility.
- Adjustable sensitivity for precise results
- Visual and acoustic display for easy use
- Includes ground spike and carrying case
- Adapter set with coaxial, F, and RJ11 connectors included
- Operates with 5 AA batteries.

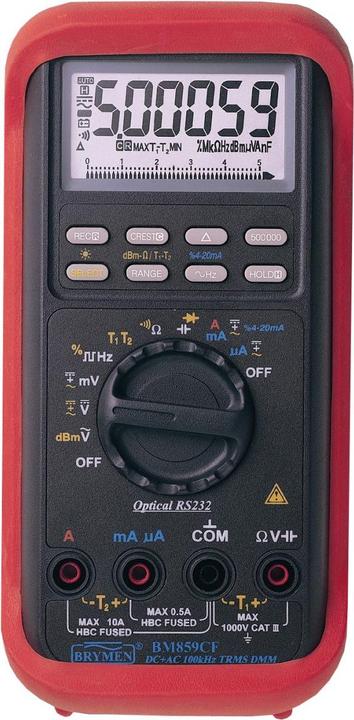

10. Elbro Digital multimeter BM859
The BM859 digital multimeter from Elbro is a versatile handheld multimeter that allows for both digital and analog measurements. It is equipped with a variety of features that make it an essential tool for professionals and technology enthusiasts. The device offers true RMS measurement and is capable of accurately measuring various electrical parameters, including voltages, currents, and resistances. With a robust plastic housing and a practical protective cover, the multimeter is suitable for use in demanding environments. The automatic range selection and data hold function enhance usability and user-friendliness. Additionally, the BM859 includes an audible continuity tester and a diode test, making it a comprehensive measuring instrument.
- True RMS measurement for precise readings
- Automatic range selection and data hold function
- Audible continuity tester and diode test
- High protection according to EN 61010-1, Category III 600 V AC/DC
- RS-232 interface for data transfer.
