Best Benning products in the Multimeter category
On this page you'll find a ranking of the best Benning products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Benning Double pole voltage tester DU
The DUSPOL digital is a digital true RMS voltage and continuity tester with resistance and frequency range. The voltage tester is suitable for electrical engineering, industry, maintenance, service (troubleshooting), as well as photovoltaic and wind power systems.
2. Benning Duspol
The Duspol voltage tester features a direct display system with low load on the test point. If needed, a load circuit can be activated via a push button, which suppresses inductive and capacitive reactive voltages. This allows for a clear distinction between high-energy and low-energy circuits. An additional feature is an optional vibration motor, whose vibration intensity increases proportionally with the applied voltage, serving as an extra indication of the presence of voltage.
3. Benning mm P3
The pocket-sized multimeter. With its compact dimensions, the MM P3 is the ideal companion for service, hobbies, and professional measurement tasks. Weighing only 130 g and 12 mm deep, it features a modern device design that fits, along with accessories, into any pocket. Basic measurement types for voltage, resistance, frequency, and capacitance. Measurement value memory HOLD; automatic and manual range selection; overload protection in all ranges; automatic shutdown when not in use (deactivatable). Excellent price-performance ratio; protective case, batteries, and test leads included.
4. Benning voltage tester
The Duspol voltage tester from Benning displays the measurement result via LED indicator levels from 12 to 1000 volts. The result of the polarity test is also shown through LEDs. A push button allows for the activation of a load switching and a residual current device (RCD) trip. Phase rotation testing is possible and is indicated on the LCD by the symbol "R".
5. Benning IT 101 Calibrated according to factory settings
The Benning IT 101 is a highly advanced insulation and resistance measuring device designed for precise measurements in electrical installations, devices, cables, motors, and generators. It offers a variety of functions that enable professionals to perform both insulation and low-resistance measurements. With selectable limits for insulation measurements and TRUE-RMS voltage measurement with a low-pass filter, the device ensures accurate results. The integrated LCD backlighting provides clear readability of measurement values, even under difficult lighting conditions. The IT 101 is equipped with a switchable test probe that allows for easy initiation of the measurement process and offers automatic discharge of capacitive voltages, enhancing safety during measurements. The extensive measurement ranges and the ability to calculate the resulting leakage current make this device an indispensable tool for professionals in the field of electrical engineering.
- Selectable limits for insulation measurements
- TRUE-RMS voltage measurement with low-pass filter
- Automatic discharge of capacitive voltages
- Calculation of resulting leakage current, Polarization Index (PI), and dielectric absorption ratio (DAR)
- LCD backlighting for improved readability.
6. Benning PV 1-1+
The Benning PV 1-1+ is an advanced version of the Benning PV 1-1 and offers improved testing compatibility for PV modules of the latest technology with high efficiency. The optimized overload protection provides 300% higher protection against transient short-circuit currents caused by high module capacities. The modified housing with a surrounding rubber protection allows for the attachment of a carrying strap for hands-free operation. An increase in testing compatibility, reliability, and user comfort.
7. Benning Current clamp CM 9 2
With the Benning CM 9-2, all sources of error can be quickly and accurately located. Preventive measurements can avoid potential damage caused by uncontrolled leakage currents in advance.

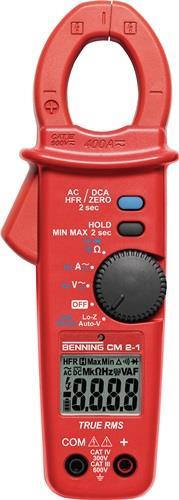

8. Benning 044689 Digital Current Clamp Multimeter
The Benning 044689 Digital Clamp Multimeter, also known as CM 2-1, is a state-of-the-art measuring device designed for precise current measurements in various applications. With a digital display that shows up to 4000 counts, this multimeter allows for easy and clear reading of measurement values. It supports both AC and DC measurements in the range of 0.01 to 400 A and offers true RMS measurement for accurate results. The automatic range selection simplifies operation, while the screen's backlighting facilitates use under different lighting conditions. The device is also equipped with functions for voltage measurement, resistance measurement, and capacitance measurement, making it a versatile tool for professionals and tech enthusiasts. With an IP30 protection rating, the multimeter is suitable for use in protected environments and provides high measurement accuracy with a tolerance of only 1.5%.
- True RMS measurement for precise readings
- Automatic range selection for easy handling
- Backlighting for better visibility
- Measurement range for AC/DC voltages up to 600 V
- Capacitance measurement from 0.001 µF to 100000 µF.
9. Benning Photovoltaic multimeter SUN 2
Ideal for planning, commissioning, and repeat testing of grid-connected PV systems according to VDE 0126-23 and for testing solar thermal systems.
10. Benning Messadapter MA 4
Its robust design makes it particularly suitable for use in industrial environments. The simple handling allows employees to work quickly and efficiently with the measuring adapter. You can test devices and extension cables with the following IEC 60309-1 connectors: CEE plug: 16 A, 50 Hz - 60 Hz, 230 V, L+N+PE, 6h; 16 A, 50 Hz - 60 Hz, 380 V - 415 V, 3L+N+PE, 6h; 32 A, 50 Hz - 60 Hz, 380 V - 415 V, 3L+N+PE, 6h. To do this, connect the measuring adapter to an appliance tester for testing portable appliances in accordance with DIN VDE 0701-0702 or DIN EN 62353 (VDE 0751-1) or DIN EN 60974-4 (VDE 0544-4). The appliance tester must have an earthing contact socket for connecting the measuring adapter. Depending on the type of test, a CEE 16A or 32A socket outlet may also need to be available. An adapter cable is required for CEE 16A. The measuring adapter is suitable for connection to the appliance testers: Benning ST 725, Benning ST 750 / 750A / 755 / 760, third-party devices.
