Best Voltcraft products in the Metrology category
On this page you'll find a ranking of the best Voltcraft products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Voltcraft Temperatur-Datenlogger, Luftfe
The data logger enables long-term recording of air temperature and relative humidity. Ready to use immediately without software, the device can be configured via a web browser. The automatic report function allows the output of the measurement series as a PDF file when connected to a PC, Mac, or printer. Once the data recording is complete and the data logger is connected to a USB port, a PDF file and an additional spreadsheet file are automatically generated. The PDF report contains general information about the device, data logger settings, alarm status, and a graph displaying the measured values over the recorded time. Value tables for further processing are generated by the logger in a CSV file. The logger is compatible with VOLTSOFT, although this software is generally not required.
The large display shows the current as well as minimum and maximum measurement data directly on the logger. Additionally, the logger ID can be retrieved, especially when multiple loggers are to be used simultaneously. The LCD display can also be turned off to save energy.
The data logger allows for up to 13 different programming options for start-stop conditions, making it customizable to your needs. Examples include: immediate start, start after a delay, start at a specific time, start by pressing a button, etc. Through dual-color LED alarm indicators, you can quickly get an overview of limit violations when the function is activated, without having to review the stored data in detail. This function can also be disabled to save energy.
2. Voltcraft VC-11015505 DL-250V Voltage data logger Measured variable voltage 0.01 to 30V PDF function
The Voltcraft VC-11015505 DL-250V Voltage Data Logger is a precise measuring instrument specifically designed for capturing voltage values in the range of 0.01 to 30 volts. With its compact design and a weight of only 59 grams, it is suitable for both professional use and private applications. The data logger allows for easy and efficient monitoring of voltage values and offers the option to save the collected data in PDF format, significantly facilitating the documentation and analysis of measurement data. The logger comes with a wall mount for flexible installation. Calibration is performed to factory standards, ensuring reliable usage. The Voltcraft VC-11015505 DL-250V is therefore an essential tool for anyone looking to conduct precise voltage measurements.
- Captures voltage values from 0.01 to 30 volts
- PDF function for easy documentation of measurement data
- Includes wall mount for flexible installation
- Calibration to factory standards for reliable results.
Metrology
CHF94.90
Voltcraft VC-11015505 DL-250V Voltage data logger Measured variable voltage 0.01 to 30V PDF function
3. Voltcraft Mechanical hand counter
With this instrument, you can accurately record all counting processes, such as tracking movements, individual items, people, etc. It features a handy chrome-plated metal housing and a detachable mounting plate (Ø 53 mm) for table installation.
4. Voltcraft Temperature Data Logger DL-200T
The data logger allows for long-term recording of air temperature. Ready to use immediately without software, the device can be configured via a web browser. The automatic report function enables the output of the measurement series as a PDF file when connected to a PC, Mac, or printer.
Once the data recording is complete and the data logger is connected to a USB port, a PDF file and an additional spreadsheet file are automatically generated. The PDF report contains general information about the device, data logger settings, alarm status, and a graph displaying the measured values over the recorded period. Value tables for further processing are generated by the logger in a CSV file. The logger is compatible with VOLTSOFT, although this software is generally not required.
The large display shows the current as well as minimum and maximum measurement data directly on the logger. Additionally, the logger ID can be retrieved, which is particularly important when multiple loggers are used simultaneously. The LC display can also be turned off to save energy.
The data logger allows for up to 13 different programming options for start-stop conditions, enabling it to be tailored to your specific needs. Examples include: immediate start, start after a delay, start at a specific time, start by pressing a button, etc.
Through dual-color LED alarm indicators, you can quickly get an overview of threshold violations when the function is activated, without having to review the stored data in detail. This function can also be disabled to save energy.
5. Voltcraft Temperature Data Logger USB DL 111K
Compact data logger with lithium battery for recording 32,000 temperature measurements. The stored measurements can be read via USB interface and graphically analyzed with the included software or exported for further processing with other programs.
6. Voltcraft Temperature sensor thermocouple type K
The Voltcraft Type K thermocouple temperature sensor is a precise measuring instrument specifically designed for temperature measurements in the range of -50 to +400 °C. This sensor is equipped with a heat-resistant and metal-sheathed connection cable, ensuring reliable performance even under extreme conditions. The Type K is known for its versatility and is commonly used in various measurement applications, including industrial processes and laboratory investigations. With a length of 1000 millimeters, this sensor offers sufficient flexibility for different measurement situations. The design and materials are intended to ensure high accuracy and durability, making it a valuable addition to any measurement equipment.
- Heat-resistant and metal-sheathed connection cable for increased robustness
- Temperature range of -50 to +400 °C for versatile applications
- Length of 1000 mm for flexible usage options.
7. Voltcraft SPS-3000/R-N Plug-in power supply, fixed voltage 5 V/DC 3 A 15 W Raspberry Pi suitable
The Voltcraft plug-in power supply comes with a 1-meter long, permanently attached cable with a Micro USB connector. Thanks to its wide input range, it can be used worldwide. For maximum safety, the USB charger is equipped with overload and short-circuit protection. It has been specifically designed for Raspberry Pi®. To avoid the various issues associated with an unstable power supply, a genuine power supply with stabilized voltage should be used. This compatible Raspberry Pi® power supply is ideally matched to the parameters needed for functioning with the Raspberry Pi®. The charger can be used for many smartphones and mobile phones, as well as for various USB applications such as smartphones/tablets, MP3 players, navigation devices, etc., that have a Micro USB port.
Metrology
CHF8.30
Voltcraft SPS-3000/R-N Plug-in power supply, fixed voltage 5 V/DC 3 A 15 W Raspberry Pi suitable
8. Voltcraft 250 MHz Zweikanal-Arbiträr-Signalgenerator mit Touchscreen-Bedienung
The 250 MHz dual-channel arbitrary signal generator from Voltcraft is a highly advanced measuring instrument designed for precise signal processing in various applications. With its digital signal generation technology (DDS), this function generator provides stable and accurate output signals. It supports a bandwidth of up to 80 MHz and enables real-time sampling of up to 1.25 GS/s, making it ideal for demanding measurement tasks. The frequency resolution of 1 μHz ensures exact signal reproduction. The generator offers a variety of basic signal types, including sine, square, and noise, as well as 152 integrated arbitrary signals. User-friendly operation is facilitated through an 8-inch TFT-LCD touchscreen display, which provides a clear graphical representation of all signal parameters. With numerous modulation options, this signal generator is versatile and suitable for both research and industrial applications.
- Digital signal generation (DDS technology) for stable and precise output signals
- Real-time sampling of up to 1.25 GS/s for high signal accuracy
- Supports 6 basic signal types and 152 integrated arbitrary signals
- User-friendly operation via an 8-inch TFT-LCD touchscreen display
- Diverse modulation options, including AM, FM, FSK, and PWM.
9. Voltcraft 80 MHz dual channel arbitrary signal generator with touch screen operation
Two-channel arbitrary function generator FG-30000T with touch screen. This arbitrary function generator produces stable, accurate and clean output signals with a bandwidth of 80 MHz, real-time sampling of 1.25 GS/s (max.) and a frequency resolution of 1 μHz thanks to its digital signal generation (DDS technology). The generator handles 6 basic signal groups (sine, square, ramp, noise and harmonics) as well as 152 integrated arbitrary signals (1 μHz - 50 MHz) with a vertical resolution of 14 bit. It also offers numerous modulation options, including AM, FM, FSK, 3FSK, PSK, OSK, ASK, BPSK, PWM, sweep and burst. All signal parameters and settings are displayed on an 8 inch (20.32 cm) TFT LCD 800 x 600 touchscreen display via a user-friendly graphical interface.
Metrology
CHF674.95
Voltcraft 80 MHz dual channel arbitrary signal generator with touch screen operation

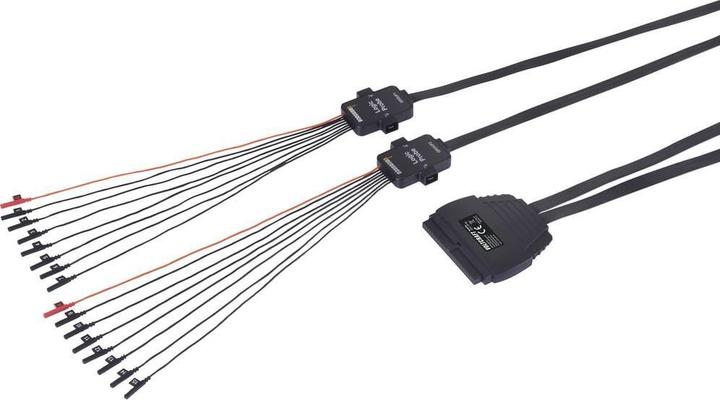

10. Voltcraft DOV-PP116 Logik-Tastkopf-Set 200 MHz
Complete set with logic (TTL) probe cable and individual clips for attachment. Multi-channel signal acquisition and analysis in real-time. 16 input channels are grouped into 2 groups: D0 - D7 and D8 - D15. Compatible with the VOLTCRAFT DOV oscilloscope series featuring logic analyzers DOV1254 LA, DOV1254F LA, DOV2504 LA, and DOV2504F LA.
