Best selling Metrology from GW Instek
On this page you'll find a ranking of the best GW Instek products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

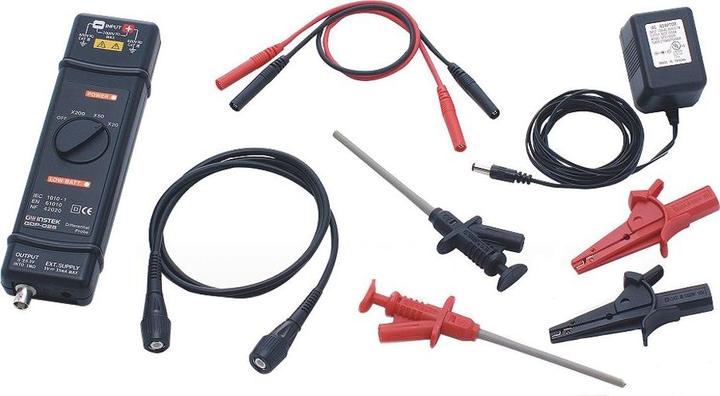

1. GW Instek GDP-050 Probe 50 MHz 100:1, 200:1, 500:1, 1000:1 7000 V
The GW Instek GDP-050 probe is a highly advanced measuring instrument specifically designed for use with oscilloscopes. With a bandwidth of 50 MHz and a maximum input voltage of 7000 V, this high-voltage differential probe is ideal for precise measurements in demanding applications. The probe supports various attenuation ratios from 100:1 to 1000:1, allowing for flexible adaptation to different measurement requirements. The package includes a wide range of accessories, including an AC adapter, various cables, and clips, ensuring comprehensive use of the device. The GDP-050 is suitable for use with the GDS-3000/2000A/2000E/1000A-U/1000-U series of oscilloscopes and provides reliable performance in a variety of testing environments.
- Maximum input voltage of 7000 V for high-voltage measurements
- Supports attenuation ratios from 100:1 to 1000:1
- Includes extensive accessories such as IC clip and alligator clip
- Suitable for various GW Instek oscilloscope series.

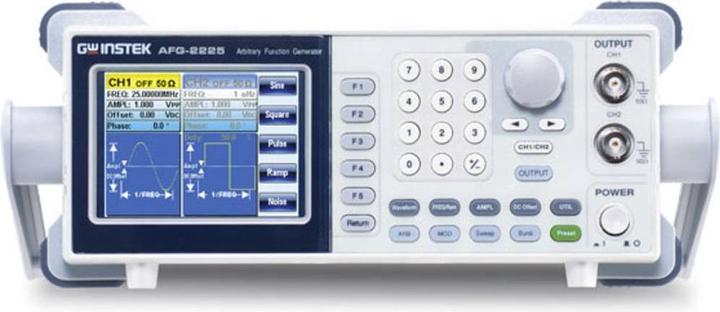

2. GW Instek AFG-2225 Function generator mains operated 0.1 Hz - 25 MHz 2-channel Arb
The AFG-2225 function generator with direct digital signal generation (DDS) offers a bandwidth of 25 MHz and two independent output channels. It features standard signals such as sine, square, ramp, noise, and 120 MSa/s arbitrary waveform with 10-bit vertical resolution. Additionally, it includes functions for AM, FM, PM, FSK, SUM modulation, sweep, burst, and frequency counter. The 8.89 cm LCD color monitor displays all waveform parameters and settings. A USB interface can be used for remote control with a computer. The arbitrary waveform can be generated using freely downloadable PC software and transferred to the generator via USB.
Metrology
CHF464.95
GW Instek AFG-2225 Function generator mains operated 0.1 Hz - 25 MHz 2-channel Arb

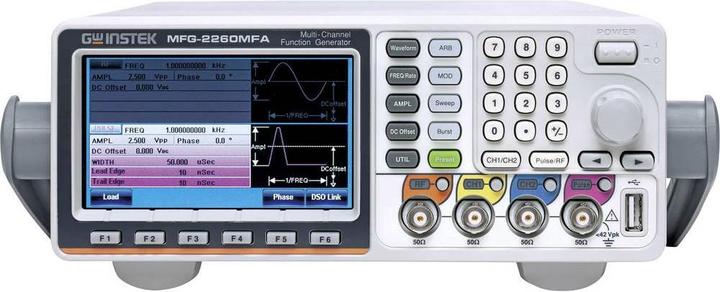

3. GW Instek MFG-2260MFA Function Generator
Two-channel arbitrary function generator with a maximum bandwidth of 60 MHz and a pulse generator whose frequency reaches 25 MHz. It features an integrated RF signal generator function and an integrated power amplifier.
4. GW Instek MFG-2110 Function generator ne
Single-channel arbitrary function generator with a maximum bandwidth of 10 MHz and a pulse generator with a frequency of up to 25 MHz.

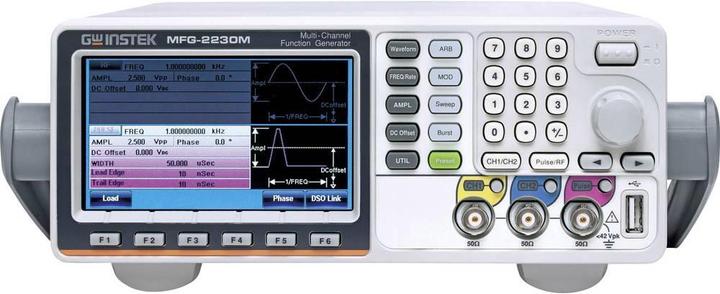

5. GW Instek MFG-2230M Function generator n
Two-channel arbitrary function generator with a maximum bandwidth of 30 MHz and a pulse generator with a frequency of up to 25 MHz.

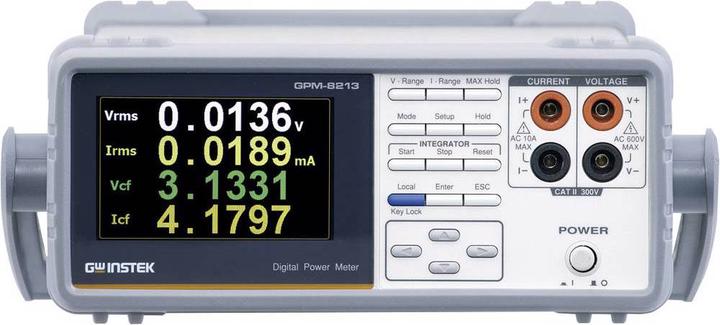

6. GW Instek Power analyzer Power meter
The GW Instek GPM-8213 power analyzer is a highly advanced power measurement device specifically designed for the precise analysis of single-phase AC power systems. Featuring a clear 4-inch TFT-LCD display and a five-digit measurement display, it offers a user-friendly interface for conducting measurements. The device supports a wide range of power measurement parameters, including voltage, current, power, frequency, and harmonic distortions. The integrated measurement functions enable comprehensive analysis of electrical parameters, while various communication interfaces such as LAN, USB, and RS-232C ensure flexible data transmission and processing. The GPM-8213 is ideal for professionals who require accurate and reliable power measurement in their applications.
- Voltage measurement range from 7.5 V to 600 V
- Current measurement range from 2.5 mA to 20 A
- Supports up to 19 different power measurement parameters
- Factory standard calibration
- Includes power cable and user manual on CD.
7. GW Instek GPT-9603 AC/DC surge voltage isolators
The surge tester enables the testing of insulation and contact points with a preselectable voltage. The test power is 100 VA for AC and 25 W for DC. In addition, insulation resistance measurement up to 2000 MΩ is possible.

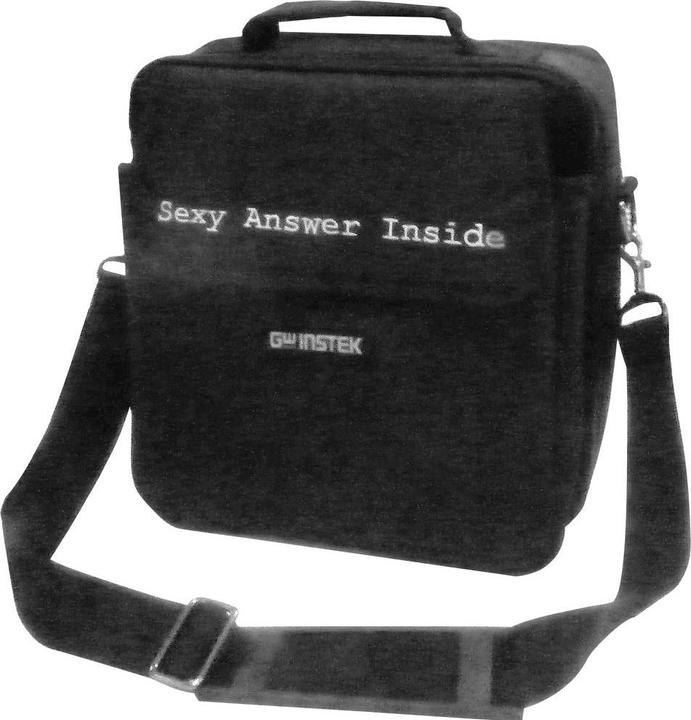

8. GW Instek GSC-010 Tasche
The GSC-010 bag from GW Instek is a practical and functional solution for storing and transporting measuring instruments. This soft carrying case provides optimal protection for devices from the GDS-300 and GDS-200 series by GW Instek. It is designed in a simple black color, which not only ensures a professional appearance but also supports the durability of the bag. The bag is specifically tailored to the needs of measurement technology, ensuring that your devices are safe and protected while on the go. With its thoughtful design, the GSC-010 bag allows for easy handling and quick access to the included devices. It is an ideal addition for professionals who regularly work with measuring instruments and value secure and practical storage.
9. GW Instek Probe, 25MHz, 1.4kV
The GW Instek GDP-025 probe is a highly advanced measuring instrument specifically designed for use in oscilloscope technology. With a bandwidth of 25 MHz and a maximum input voltage of 1400 V, this probe provides precise and reliable signal transmission for various applications in measurement technology. The probe is equipped with multiple connection options, including BNC and banana plugs, allowing for flexible integration into existing measurement systems. Its compact design and lightweight of 250 grams make it a practical tool for mobile use. The probe comes with a variety of accessories, including an AC adapter, alligator clips, and IC clips, supporting versatile usage in different measurement scenarios.
- Maximum input voltage of 1400 V for demanding measurements
- Versatile connection options with BNC and banana plugs
- Includes extensive accessories for various applications
- Calibrated to factory standards for reliable performance.

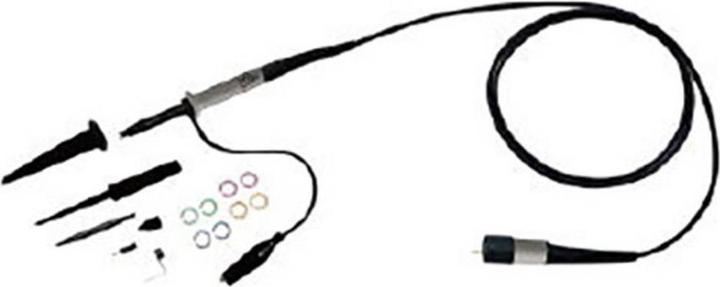

10. GW Instek Oscilloscope probe
The GTP-020A-4 oscilloscope probe from GW Instek is an essential tool for professionals and electronics enthusiasts who want to perform precise measurements. With a bandwidth of 20 MHz, this passive probe enables reliable signal transmission and is ideal for use with various oscilloscopes, particularly the GW Instek GOS-620. The probe is calibrated to the manufacturer's standards, ensuring consistent performance. With a length of 1200 mm, it offers sufficient flexibility for comfortable use in complex circuits. This oscilloscope probe is a practical and effective aid for the analysis and diagnosis of electronic circuits.
- Bandwidth of 20 MHz for precise measurements
- Calibrated to manufacturer standards for consistent performance
- Length of 1200 mm for flexibility in application.
