Best selling LNB downconverters from Kathrein
This page always stays fresh and updates automatically.

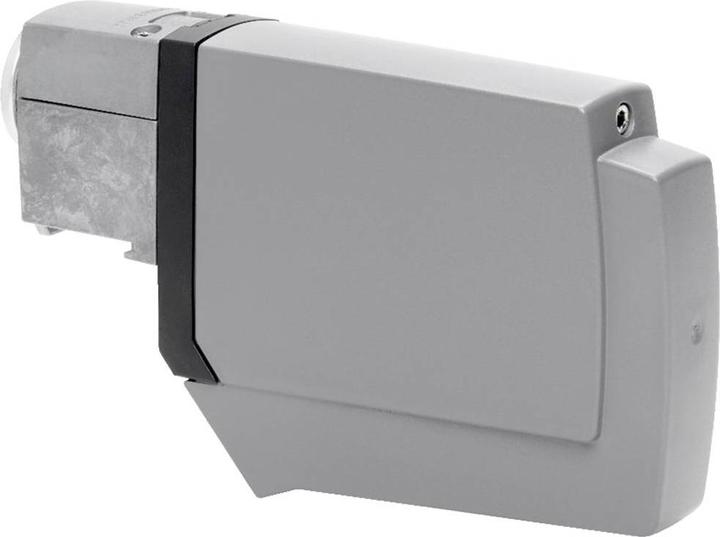

1. Kathrein Uas 571
The universal single-feed system UAS 571 is suitable for receiving satellites in the Ku-band, such as Astra, Eutelsat, or TürkSat. The switch between frequency bands (low/high) and polarizations (horizontal/vertical) is done through the program selection on the receiver. The feed system complies with the Astra specification for universal feed systems. It is suitable for single installations with two polarizations and two frequency ranges (2 x low/high band) and for linear polarization. There is an independent selection of horizontal/vertical and low/high band from each receiver. The switch between horizontal/vertical and low/high band is done via the coaxial cable with 14/18 V and 22 kHz. The power supply is provided through a low-voltage cable. The UAS 571 is suitable for multi-feed setups due to its compact design (CAS 60/80/90/120). The LNB and cable connections are fully protected in a ventilated housing with an IP 54 protection class.
2. Kathrein UAS 685 Universal Quad Feed System LNB
Kathrein Feed System UAS 685
Manufacturer: Kathrein
Designation: Universal Quad Feed System
Type: UAS 685
Design: Quad LNB
Color: gray
With protective housing: yes
Integrated multiswitch: yes
Number of outputs: 4
Terrestrial feed: no
The Kathrein Feed System UAS 685 is a universal quad feed system with an integrated multiswitch for 4 participants. It is suitable for the Kathrein satellite antennas CAS 06/60, CAS 80, CAS 90, and CAS 120, and allows reception of satellites in the Ku-band, such as Astra, Eutelsat, or TürkSat.
The system features an energy-saving typical power consumption of 1.4 W and offers high frequency stability thanks to the latest PLL chip technology. It provides excellent shielding against interference, for example from LTE mobile networks. Due to its compact design, multi-feed is possible, and reception is already achievable with smaller dish diameters.
Complete protection of the LNB and cable connections is provided in the ventilated housing with IP54. The feed system complies with the Astra specification for universal quad LNB.
EAN: 4063242001521.
3. Kathrein KATH Broadband LNB
The KATHREIN KEL 300/W is your reliable wideband feed system expert, developed under the well-established quality brand Kathrein, which has been around for over 100 years. It is the essential solution if you want to feed terrestrial signals into your system. Benefit from a typical gain of 55 dB and a wide output frequency range of 300 to 2350 MHz. The KEL 300/W is compatible with the optical transmitters OSW 1310/6 and OSW 1550/6 and features an integrated 2.4 GHz low-pass filter.
4. Kathrein KEL 444
The KATHREIN Euroline KEL 444 Universal Quad LNB is suitable for satellite reception systems with a 40 mm LNB holder. The LNB has 4 connections for the direct connection of 4 satellite receivers or 4 satellite tuners.
5. Kathrein KEL 440 Quattro
The Kathrein EuroLine Universal LNB systems are suitable for satellite reception systems with a 40 mm LNB holder. They are designed for receiving satellites in the Ku-band, such as Astra, Eutelsat, Türksat, and Hispasat.
6. Kathrein UAS 582
The KATHREIN UAS 582 is a highly advanced satellite antenna converter specifically designed for use in modern satellite reception systems. This twin LNB offers a wide frequency range from 10.7 to 12.75 GHz, enabling it to efficiently receive a variety of satellite signals. With two outputs, the UAS 582 allows for the simultaneous connection of multiple receivers, making it ideal for households with several televisions. The integrated protective housing ensures increased durability and resistance to weather conditions. Additionally, the device features a multi-feed function that allows for flexible installation. Its power consumption is low, with a typical draw of 100 mA, optimizing energy use. The UAS 582 is therefore a reliable choice for anyone seeking a powerful and versatile solution for satellite reception.
- Wide frequency coverage from 10.7 to 12.75 GHz
- Two outputs for connecting multiple receivers
- Integrated protective housing for increased durability
- Multi-feed compatible for flexible installation options
- Low power consumption of typically 100 mA.
7. Kathrein EAS 126 Feeding system
Kathrein Offset Feed System EAS 126 Manufacturer :Kathrein Designation :Offset Feed System without LNB Mounting Type :EAS 126 Version :Quad LNB Colour :other With protective housing :yes Multiswitch integrated :no Terrestrial feed :no Mounting :other Kathrein offset feed system EAS 126: more details Professional module offset feed system without LNB mounting with waveguide transition R 120 for two polarisation levels , EAN: 4021121381300.
8. Kathrein Uas 572
Universal Twin Feed System UAS 572 for single reception systems with two receivers or systems for two subscribers is suitable for receiving satellites in the Ku-band, such as Astra, Eutelsat, or TürkSat. The switching between frequency bands (low/high) and polarizations (horizontal/vertical) is done, as with the single receiver system, through program selection on the receiver. The feed system complies with the Astra specification for universal feed systems. It is suitable for communal systems with two polarizations and two frequency ranges (2 x low/high) and for linear polarization. Independent selection of horizontal/vertical and low/high from each receiver is possible. The switching between horizontal/vertical and low/high is done via the coaxial cable using 14/18 V and 22 kHz. Power supply is provided through a pass-through cable. The UAS 571 is suitable for multi-feed setups due to its compact design (CAS 60/80/90/120). LNB and cable connections are fully protected in a ventilated housing, protection class: IP 54.
9. Kathrein Uas 585
The universal quad feed system UAS 585 is suitable for multi-participant systems with an integrated switching matrix. Switching between frequency bands is achieved by selecting the program on the receiver, similar to a single reception system. It is possible to later extend the system to more than four connections. This system is ideal for receiving Ku-band satellites such as Astra, Eutelsat, or TürkSat and complies with the Astra specification for universal feeding systems. It is suitable for community installations with two polarizations and two frequency ranges (2 x low/high band) and for linear polarization. Independent horizontal/vertical and low/high band selection can be made from any receiver. Switching between horizontal/vertical and low/high band is done via the coaxial cable using 14/18 V and 22 kHz. The system operates within the frequency range of 10.70-11.70 GHz and 11.70-12.75 GHz. It supports four connections without additional multiswitches and can be expanded to up to 16 connections with EXR 15xx multiswitches. Power is supplied via a feed-through cable. The UAS 585 is multifeed capable due to its compact design (CAS 60/80/90/120). LNB and cable connections are completely protected in a ventilated housing with a protection class of IP 54.
10. Kathrein UAS 684
The Kathrein UAS 684 is a highly advanced universal Quattro feed system designed for use in satellite antennas. With a frequency range of 10.70 to 12.75 GHz, this Quattro LNB provides reliable signal transmission and is ideal for multi-feed applications. It features four outputs that allow for horizontal and vertical polarization, ensuring flexible use in various reception scenarios. The typical power consumption of just 1.4 watts ensures energy-efficient operation. The device is equipped with a robust protective housing that makes it weatherproof, making it suitable for outdoor use. Weighing 800 grams and with compact dimensions, the UAS 684 is easy to install and integrate. This LNB is an excellent choice for anyone looking for a reliable and powerful solution for their satellite reception system.
- Compatible with Ku-band frequencies
- Noise figure of 22 dB for improved signal quality
- Integrated multiswitch for easy installation
- Weatherproof design with IP54 protection class
- Signal amplification of 50 dB for optimal performance.
