Kathrein Uas 571

Single LNB
Ratings
Delivered between Sat, 17.5. and Wed, 21.5.
5 items in stock at supplier

Product details

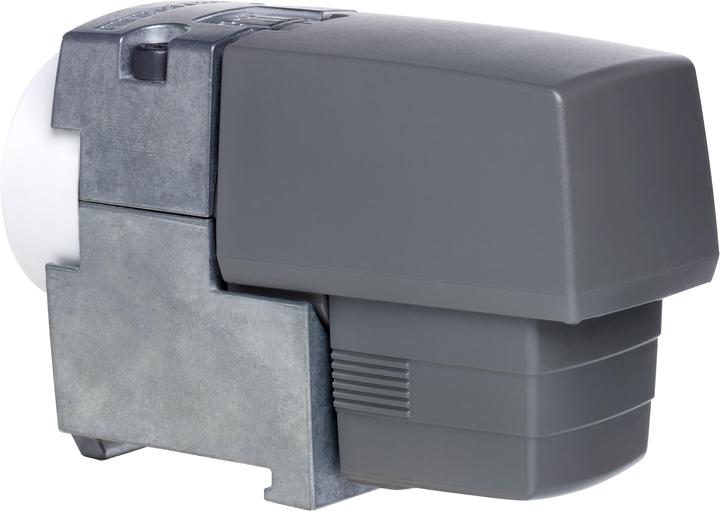

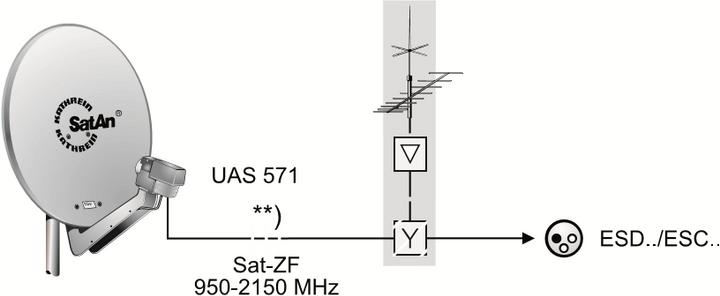

The universal single feed system UAS 571 is suitable for the reception of satellites in Ku-band, such as Astra, Eutelsat, or TürkSat. Switching between the frequency bands (low/high) and the polarizations (horizontal/vertical) is done by selecting the program on the receiver. The feeding system complies with the Astra specification for universal feeding systems. It is suitable for single systems with two polarizations and two frequency ranges (2 x low/high band) and for linear polarization. There is an independent choice of horizontal/vertical and low/high band from any receiver. Switching between horizontal/vertical and low/high band is done via the coaxial cable using 14/18 V and 22 kHz. Power is supplied via a low voltage cable. The UAS 571 is suitable for multifeed due to its compact design (CAS 60/80/90/120). The LNB and cable connections are completely protected in a vented housing with a protection class of IP 54.

Key specifications

Signal amplification
50 dB
Noise
0.80 dB
LNB features
Protective housing
Documents
Manual.pdf
Item number
6207890

General information

Manufacturer
Kathrein
Category
LNB downconverter
Manufacturer no.
20110017
Release date
29.3.2017

Colour

Colour
Grey
Exact colour description
Grey

LNB properties

Type
Single LNB
LNB features
Protective housing
Input frequency
10.7 - 12.75 GHz
Signal amplification
50 dB
Noise
0.80 dB
Power consumption
80 mA

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Weight
360 g
Width
44 mm
Height
72 mm
Depth
112 mm

Package dimensions

Length
18 cm
Width
12.50 cm
Height
6.50 cm
Weight
458 g
