Best selling Lighting accessories from Esylux

On this page you’ll find a ranking of the best Lighting accessories from Esylux. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.

1. Esylux Control unit

DALI-2 certified control unit with integrated bus power supply (250 mA). Cross-room light control for up to 16 groups. Easy adjustment to individual and complex room situations. Presence and daylight-dependent constant light control for maximum energy efficiency. Various manual override options and up to 16 scenes. Automatic switching of groups with changing room usage. Day of the week and time-dependent control options per group. Energy-saving and time-scheduled switching off of DALI operating devices. Swarm function for increased workplace comfort. Central functions for area or building-wide overriding. Quick start with factory settings in broadcast mode. Individual groups immediately ready for operation with factory settings. Easy configuration via the ESY app using a bidirectional Bluetooth interface. Simple documentation and management of configured projects via the ESY app. Surface mounting with accessories.

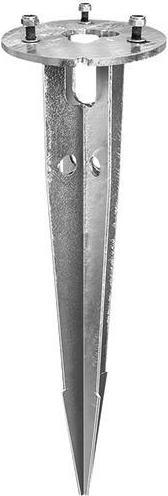

2. Esylux Concrete anchor zinc ST Ø145mm H590mm

ESYLUX Mounting ALVA GROUND SPIKE170

Manufacturer: ESYLUX
Description: Mounting
Type: ALVA GROUND SPIKE170
Accessory/Spare Part Type: Mounting Kit
Accessory: Yes
Spare Part: No
Transparent: No
Color: Zinc
Material: Steel
Height: 590 mm
Diameter: 145 mm

Additional Details: For simplified installation of the ALVA Ø 170 mm bollard lights. Sturdy steel construction, hot-dip galvanized for embedding in a concrete foundation or for burying in solid ground. Stainless steel screws and washers are included. The openings at the top of the ground spike allow for two empty conduits with a maximum diameter of 25 mm for connection cables.

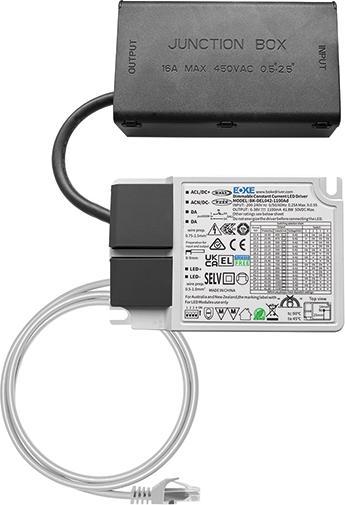

3. Esylux DRIVER SET 30W 700mA

ESYLUX Operating Device EQ10127793
Manufacturer: ESYLUX
Designation: Operating Device
Type: EQ10127793
Control Type: DALI
Housing: Plastic housing
Construction: No
Installation: Yes
Output Voltage: 6..42 V
Input Voltage: 200..240 V
Protection Class (IP): IP20
Protection Class: II
Length: 103 mm
Width: 68 mm
Height: 31 mm
Compatible with Apple HomeKit: No
Compatible with Google Assistant: No
Compatible with Amazon Alexa: No
Compatible with Casambi: No
IFTTT Support Available: No

ESYLUX Operating Device EQ10127793: Additional Details
Plug-and-play LED driver set DALI-2 for ESYLUX satellite LED lights with constant light color.
Output Current 700 mA.
Primary side: Terminal block for wires up to 5 x 2.5 mm².
Secondary side connected to the driver: 0.5 m white cable with RJ45 connector.
SwitchDIM function.
EAN: 4015120127793.

4. Esylux Hanger (VE2)

2x stainless steel hooks for suspended mounting. To be inserted into the supplied mounting brackets of the OLIVIA-2 damp-proof lights.

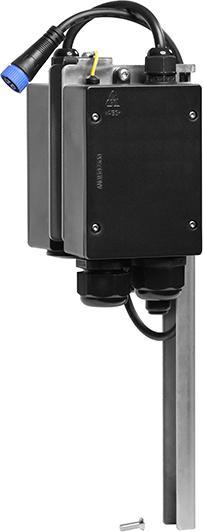

5. Esylux DALI driver

The DALI driver from Esylux is a high-quality lighting accessory specifically designed for use in ALVA bollard lights with a diameter of 100 mm. This driver is mounted in a housing and offers easy installation through the integrated terminal block. With its robust construction and the use of materials from Germany, the DALI driver ensures reliable performance and durability. The black color harmoniously blends into various environments and provides an appealing appearance. The DALI driver is ideally suited for indoor use and supports modern lighting control systems that allow for flexible adjustment of lighting.

- Integrated terminal block for easy installation
- Robust construction for durability
- Compatible with modern DALI lighting control systems.

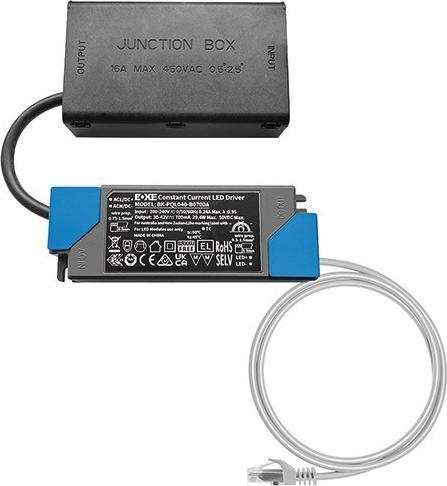

6. Esylux Control gear

The Esylux operating device is a plug-and-play LED driver set specifically designed for use with satellite LED lights. It allows for easy and efficient installation by ensuring a constant light color. With an output current of 700 mA, this device is ideal for indoor use. The operating device features a terminal block suitable for wires up to 3 x 2.5 mm² and comes equipped with a 0.5 m long white cable with an RJ45 connector. Its compact design and plastic housing ensure durability and ease of handling. This operating device is a reliable solution for expanding your lighting systems and provides a user-friendly way to operate your LED lights.

- Plug-and-play installation for easy handling
- Output current of 700 mA for constant light color
- Compact design with robust plastic housing.

7. Esylux Mounting frame ws Accessories ST L640mm

ESYLUX ceiling mounting frame 600/625 for recessed ceiling lights of the NOVA and CELINE series

Installation note according to § 13 NAV

Please note that devices with a connection value of 230V are delivered with either a protective contact plug or a fixed connection (without plug) depending on the power rating. If the device has a fixed connection, a qualified professional must be commissioned for the installation. All devices with a connection value of 400V or higher must be operated via a suitable high-voltage connection and can only be connected by a qualified electrician. For devices with a rated power of more than 12KW, approval from your network operator is required. Please contact the network operator or an installation company registered in the network operator's installer directory before installation. Such an installation company will assist you in obtaining the necessary approval from the respective network operator.

8. Esylux Base plate

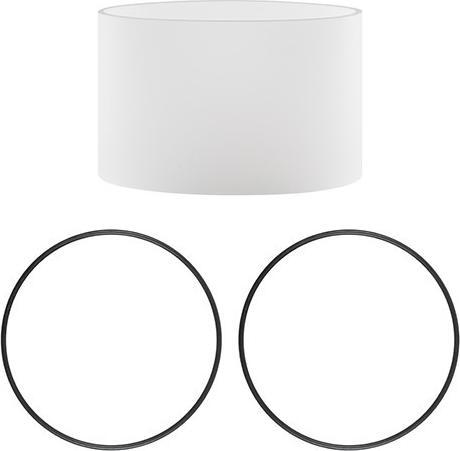

9. Esylux Opal

The Opaler diffuser from Esylux is a high-quality lampshade specifically designed for the ALVA BL bollard lights with a diameter of 170 mm. This diffuser ensures even light distribution and enhances light quality by reducing glare and creating a pleasant atmosphere. With a height of 105 mm and a diameter of 160 mm, the diffuser fits perfectly with the corresponding bollard lights and is an ideal addition for various outdoor areas. The diffuser comes with two sealing rings that ensure reliable sealing and increase the product's durability. Made in Germany, the Opaler diffuser stands for quality and functionality.

- Specialized for ALVA BL bollard lights with Ø 170 mm
- Includes two sealing rings for improved sealing
- Made in Germany for high quality standards.
