Best Hoymiles products in the Energy monitors category
On this page you'll find a ranking of the best Hoymiles products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

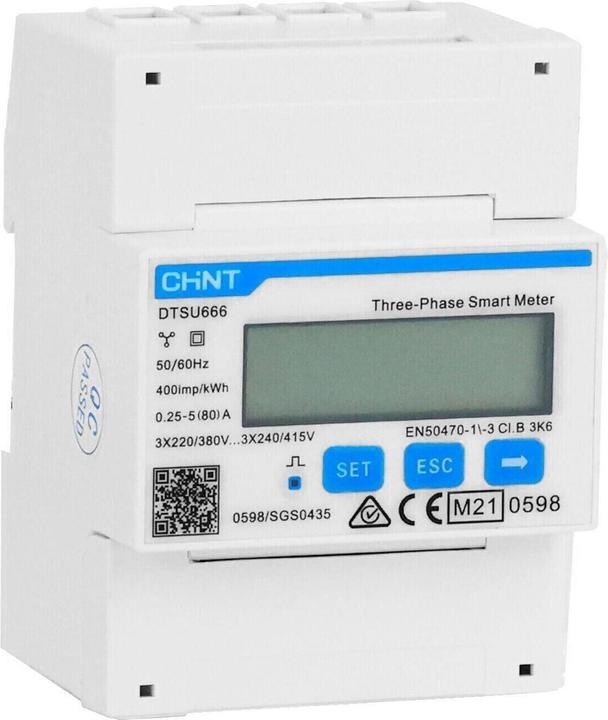

1. Hoymiles Electricity meter DTSU666 (CT-3*100A) 3-phase
The Hoymiles power meter DTSU666 (CT-3 100A) is three-phase and features an external current transformer. It can be used to measure and display the PV power supply, load consumption, or export performance.
2. Hoymiles Electricity meter DDSU666 (CT-100A) 1-phase
The Hoymiles electricity meter DDSU666 (CT-100A) is a single-phase meter with an external current transformer. It can be used to measure and display PV power supply, load consumption, or export power.

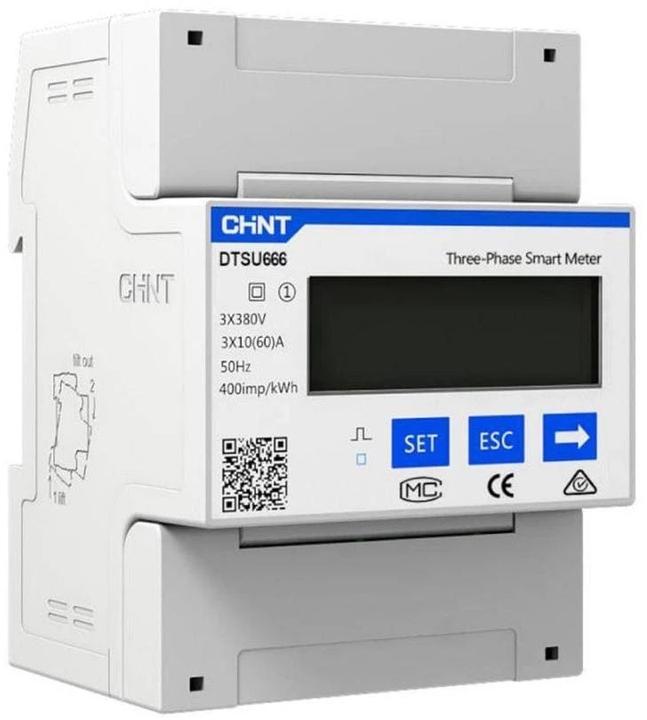

3. Hoymiles Electricity meter DTSU666 (CT-3*250A)
The Hoymiles power meter DTSU666 (CT-3 250A) features an external current transformer and can be used to measure and display PV power supply, load consumption, or export power.
The Hoymiles Smart Power Export Management is an intelligent and reliable solution for managing the amount of electricity exported to the grid. The management system consists of a measuring device (CT-Optional), a Hoymiles Gateway DTU-Pro (or DTU-Pro-S), and a Hoymiles micro-inverter. The Hoymiles power meter communicates export or load consumption values. To accurately represent PV production, the meter must be installed at the output of the PV system.
Technical specifications of the Hoymiles power meter:
- Input voltage: 154-253V AC
- Dimensions: 72 x 100 x 65 mm
- Dimensions CT-Data: 44 x 77 x 33 mm
- Ambient temperature: -25°C to 70°C
- Connection: RS485
- Cable length: 6 m
Delivery includes:
1x Hoymiles power meter DTSU666 (CT-3 250A)
1x connection cable.
