Best Growatt products in the Energy monitors category
On this page you'll find a ranking of the best Growatt products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

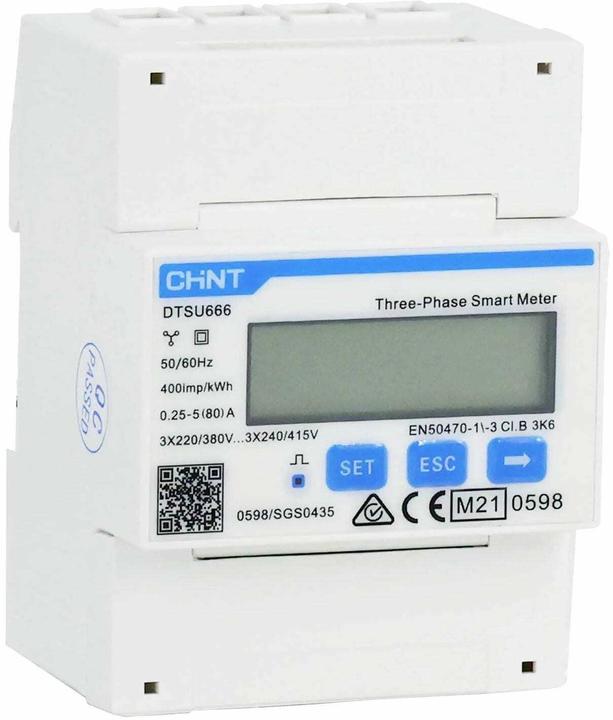

1. Growatt Chint Three-Phase Smart Meter DTSU666
The Growatt Smart Meter TPM-E (3-phase) is a solution for measuring and limiting the consumption and production of your solar modules and is compatible with Growatt solar and storage inverters. With RS485 communication and direct connection to the inverter, it is cost-effective and easy to install.
Data:
Size: 72 x 100 x 66 mm
Weight: 0.42 kg
Operating temperature range: -25 °C to 60 °C
Output frequency / range: 50 Hz, 60 Hz
Manufacturer's warranty: 2 years
Voltage: Three-phase 100 A input
Communication standard: RS485.
2. Growatt Three-phase energy meter
Growatt TPM-E 3-Phase 100A Smart Meter: High-precision measurement with effortless installation. Your key to smart and efficient energy management with just one click!
* 3-phase complete solution for grid export limitations
* LCD display for easy data monitoring
* Plug-and-play installation, compatible with many Growatt inverters
Energy efficiency and ease of use come together in the Growatt TPM-E 3-Phase 100A Smart Meter. This highly precise 3-phase complete solution provides you with everything you need to control your grid export limitations and monitor self-consumption. Thanks to the user-friendly LCD display, you can keep track of all important data at all times.
Easy installation is guaranteed with this clever device. With its plug-and-play functionality, the TPM-E Smart Meter is ready to operate in no time, and its RS485 communication and direct connections make it compatible with many Growatt inverters.
Let the Growatt TPM-E Smart Meter do the hard work while you enjoy the benefits of smart and efficient energy management. Get your key to simple and efficient energy management with the Growatt TPM-E Smart Meter now!.
3. Growatt SPM-CT-E Electricity meter 1-phase 100A Smart Meter
The Growatt SPM-CT-E electricity meter (MPN SDM120CT) is a single-phase complete solution for limiting grid exports and monitoring the self-consumption of your solar system, with data displayed on an LCD screen. By accurately monitoring self-consumption, you can optimize your energy usage and maximize the efficiency of your solar system. The smart meter is characterized by its high measurement accuracy and easy installation via plug and play. With RS485 communication and direct connections, the meter is compatible with most inverters and storage systems from Growatt.
Overview of the Smart Meter SPM-CT-E:
- Control of export power and self-consumption
- For single-phase systems
- High measurement accuracy (Class 1)
- Quick installation - plug and play
- Meter with CT for simplified wiring
Technical specifications:
- Nominal voltage: 230V
- Max. current: 100 A
- Current type: 1P2W
- Input voltage: 184 - 276V AC
- Communication: RS485, Modbus-RTU
- Operating temperature range: -25°C - +55°C
- Storage temperature range: -40°C - +70°C
- Frequency: 50/60Hz
- Humidity: 0 to 90%, non-condensing
- Weight: 80g
- Dimensions: 118 x 18 x 64 mm
- Protection class: IP51
- RS485 cable length: 15m
- CT cable length: 5m
Delivery includes:
1x Growatt SPM-CT-E Smart Meter
1x 5m CT cable
1x 15m RS485 cable.

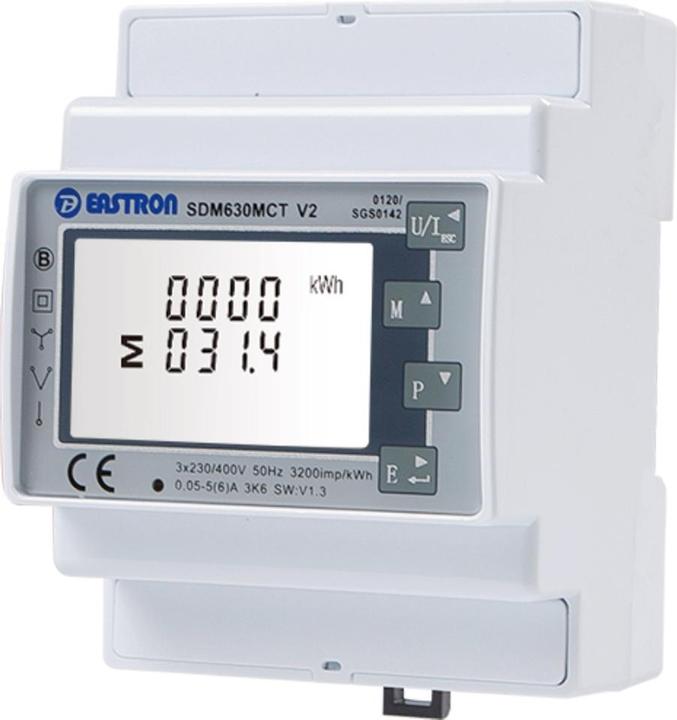

4. Growatt TPM-CT-E-EU 250A 3-phase electricity meter Smart Meter
The Growatt TPM-CT-E-EU power meter (MPN SDM630MCT V2) is a 3-phase multifunctional measuring device designed for precise monitoring. The meter operates with three external current transformers and is versatile for use in both high and low voltage networks.
This standalone solution allows for limiting grid feed-in and monitoring self-consumption. The data from the smart meter can be easily read in real-time via the LCD display. With RS485 communication and direct connection to the inverter, the installation of the meter is cost-effective and straightforward.
Features of the TPM-CT-E-EU
- Meter with 3 current transformers
- For three-phase systems
- Control of export power and self-consumption
- High measurement accuracy (Class 0.5S)
- Quick installation - Plug & Play
- Suitable for 3P3W/3P4W networks
- LCD display
- Mounting type: DIN rail 35mm
- Includes current transformers for simplified wiring
Compatibility
The TPM-CT-E-EU smart meter is compatible with Growatt hybrid inverters and storage inverters.
Technical Specifications
- Rated voltage: 400V
- Max. current: 250A
- Number of CTs: 3
- Power grid type: 3P3W / 3P4W
- Input voltage: 173-480V AC
- RS485 cable: 15m
- Communication: RS485, Modbus-RTU
- Operating temperature range: -25°C - +55°C
- Storage temperature range: -40°C - +70°C
- Relative humidity: 0 - 90 %
- Frequency: 50/60Hz
- Protection class: IP51
- Weight: 220g
- Dimensions: 94.5 x 65 x 72 mm
Delivery includes
1x Growatt TPM-CT-E-EU 250A 3-phase smart meter.
5. Growatt SPM-E Stromzähler 1-phasig 80A Smart Meter
The SPM-E energy meter from Growatt is an innovative solution for monitoring energy consumption in single-phase systems. This device provides precise measurement of current power usage and allows for easy integration into existing systems. With a user-friendly LCD display, data can be easily read. Installation is quick and straightforward through a plug-and-play system, significantly simplifying the commissioning process. The SPM-E is equipped with an RS485 interface, enabling seamless communication with a variety of Growatt inverters. Additionally, the meter supports the zero-export function, ensuring that no excess power is fed back into the grid. These features make the SPM-E an ideal choice for anyone looking to efficiently monitor and manage their energy consumption.
- High measurement accuracy for precise consumption measurement
- Supports zero-export function in conjunction with Growatt inverters
- Easy installation through plug-and-play system
- RS485 communication for versatile connection options.
6. Growatt Three-phase energy meter TPM-E Smart Meter 100A
The Growatt TPM-E Smart Meter 100A is a comprehensive solution for monitoring electricity consumption and grid feed-in limitation. This energy meter is specifically designed for the precise measurement of active power, energy, reactive power, phase shift angle, current, and frequency. With a nominal voltage of 3x 230/400AC and an input current range of 0.25-5(80)A, the meter offers high flexibility for various applications. Installation is quick and straightforward via a DIN rail, facilitating integration into existing systems. The meter is also equipped with an RS-485 interface for easy data transmission. With a robust design and an IP51 protection rating, the TPM-E Smart Meter is suitable for use in different environments.
- Precise measurement of various electrical parameters
- Fast and easy plug-and-play installation
- RS-485 interface for data communication
- Robust design with IP51 protection rating
- Suitable for mounting on a DIN rail.
7. Growatt TPM-CT-E 100A 3-phase electricity meter Smart Meter
The Growatt TPM-CT-E power meter is a 3-phase multifunction measuring device designed for precise monitoring. The meter operates with three external current transformers and is versatile for use in both high and low voltage networks.
This standalone solution allows for limiting grid feed-in and monitoring self-consumption. The data from the smart meter can be easily read in real-time via the LCD display. With RS485 communication and direct connection to the inverter, the installation of the meter is cost-effective and straightforward.
Overview of the Smart Meter TPM-CT-E:
- Meter with 3 current transformers
- For three-phase systems
- Control of export power and self-consumption
- High measurement accuracy (Class 1)
- Quick installation - Plug & Play
- Suitable for 1P2W/3P3W/3P4W networks
- LCD display
- Mounting type: DIN rail 35mm
- Meter with CT for simplified wiring
Technical specifications:
- Rated voltage: 3x230V / 400V AC
- Max. current: 100 A
- Current type: 3P4W
- Input voltage: 173 - 480V AC (L-L)
- Communication: RS485, Modbus-RTU
- Operating temperature range: -25°C - +55°C
- Storage temperature range: -40°C - +70°C
- Frequency: 50/60Hz
- Humidity: 0 to 90%, non-condensing
- Weight: 280g
- Dimensions: 94.5 x 72 x 65 mm
- Protection class: IP51
- RS485 cable length: 15m
- CT cable length: 5m
Delivery includes:
1x Growatt power meter TPM-CT-E Smart Meter
3x 5m CT cables
1x 15m RS485 cable.
