Best selling Development boards + Kits from RAK Wireless

On this page you'll find a ranking of the best RAK Wireless products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

1. RAK Wireless WisBlock Meshtastic Starter Kit

Are you interested in joining the Meshtastic network? Meshtastic is a network-independent messaging system that uses cost-effective hardware to create your personal mesh. The LoRa radios relay messages to the nearest node to distribute them across the network. Communicate over kilometers between nodes. Internet-connected relay nodes allow conversations to continue online as well. Get started immediately with the Meshtastic Starter Kit from RAK Wireless. It includes a WisBlock Base Board and the RAK4631 WisBlock Core Module, both pre-flashed with the Meshtastic firmware. Power on the boards and start sending messages right away. The WisBlock ecosystem from RAK Wireless offers compact and modular solutions for creating your own IoT LoRaWAN nodes. Various CPU, sensor, and IO expansion modules can be mounted on a WisBlock Base Board. Unlike traditional connectors, the modules are secured to the base board with screws, providing a safe and reliable industrial-quality attachment. Thanks to its modular and compact design, WisBlock is particularly suitable for prototyping applications in both professional and hobby settings.

Features:
- Ultra Low Power Nordic nRF52840 MCU
- 32-bit ARM Cortex 64 MHz CPU
- Semtech SX1262 LoRa Transceiver
- Bluetooth 5.0
- I2C, SPI analog and digital In/Outputs

Technical Details:
- Manufacturer: RAK Wireless
- Manufacturer SKU: 115017
- Models: RAK19007, RAK4631
- MCU: Nordic nRF52840
- CPU: 32-bit ARM Cortex M4
- Clock Frequency: 64 MHz
- Flash: 1 MB
- RAM: 256 KB
- LoRa Transceiver: Semtech SX1262
- LoRa Protocol: 1.0.2
- Bluetooth Standard: Bluetooth 5.0
- Interfaces: SPI, I2C analog and digital
- Dimensions: 60 x 30 x 8.5 mm
- Weight: 42 g

Package Contents:
- 1x RAK19007
- 1x RAK4631
- 1x LoRa Antenna
- 1x BLE Antenna
- 1x Screw Set
- 1x USB Cable.

2. RAK Wireless WisMesh Pocket V2 Grün Meshtastic

Dive into the world of Meshtastic LoRa Mesh networks with the WisMesh Pocket V2! This new version comes with enhanced security features, a more robust casing, and user-friendly components. It is pre-installed with the Meshtastic firmware, making it easy to use, even for beginners. Thanks to the integrated GNSS module and accelerometer, it serves as both a tracker and a communication device in remote areas. The 1.3-inch OLED display clearly presents all essential information, while the internal BLE antenna ensures a reliable connection. An external antenna can be easily connected via the SMA antenna port, and with the powerful 3200mAh battery, long runtime is guaranteed. Whether for outdoor adventures, emergency communication, or research – the WisMesh Pocket V2 has you well-equipped!

Technical Specifications:
Manufacturer: RAK Wireless
Manufacturer SKU: 105129
Supported Bands: IN865, EU868, AU915, US915, KR920, RU864, AS923
Baseboard: RAK19026 WisBlock
Module: RAK4631 WisDuo
Sensor Slots: 3
IO Slot: 1
Display: 1.3-inch OLED
Sensors: GNSS, accelerometer
Internal Antenna: BLE
Casing: Robust casing with SMA connector
Operating Temperature: -20°C to +60°C
Battery: 3200mAh rechargeable battery
Connection: USB-C
Dimensions: 94 x 52 x 30mm
Weight: 195g

Package Contents:
1x WisMesh Pocket V2 Green Meshtastic
1x 3200mAh rechargeable battery
1x LoRa antenna
1x USB cable.

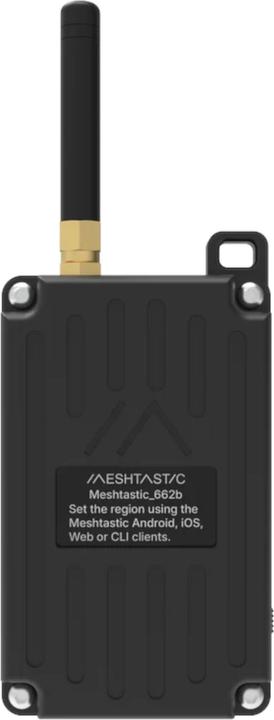

3. RAK Wireless WisMesh Pocket V2 Schwarz Meshtastic

Dive into the world of Meshtastic LoRa Mesh networks with the WisMesh Pocket V2! This new version comes with enhanced security features, a more robust housing, and even more user-friendly components. It is pre-installed with the Meshtastic firmware, making it easy to handle, even for beginners. Thanks to the integrated GNSS module and accelerometer, it serves as both a tracker and a communication device in remote areas. The 1.3-inch OLED display clearly shows all important information, while the internal BLE antenna ensures a reliable connection. The SMA antenna connector allows for easy attachment of an external antenna, and with the powerful 3200mAh battery, long runtime is guaranteed. Whether for outdoor adventures, emergency communication, or research – the WisMesh Pocket V2 is your perfect companion!

Technical Specifications:
Manufacturer: RAK Wireless
Manufacturer SKU: 105128
Supported Bands: IN865, EU868, AU915, US915, KR920, RU864, AS923
Baseboard: RAK19026 WisBlock
Module: RAK4631 WisDuo
Sensor Slots: 3
IO Slot: 1
Display: 1.3-inch OLED
Sensors: GNSS, Accelerometer
Internal Antenna: BLE
Housing: Robust housing with SMA connector
Operating Temperature: -20°C to +60°C
Battery: 3200mAh rechargeable battery
Connection: USB-C
Dimensions: 94 x 52 x 30mm
Weight: 195g

Included in the package:
1x WisMesh Pocket V2 Black Meshtastic
1x 3200mAh rechargeable battery
1x LoRa antenna
1x USB cable.

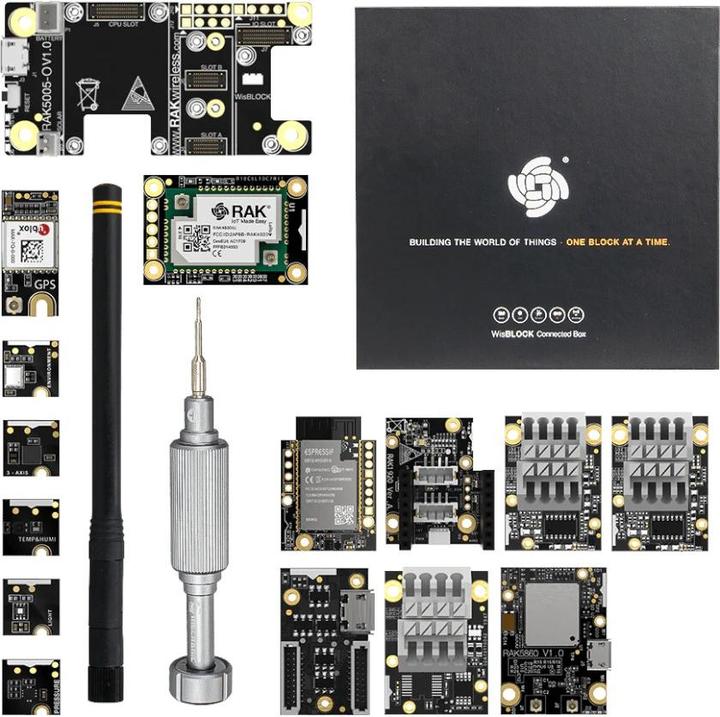

4. RAK Wireless WisBlock Connected Box starter kit

The WisBlock Starter Kit Connected Box from RAK Wireless is a comprehensive development set specifically designed for the exploration of IoT applications. It includes 13 different WisBlock modules that cover a wide range of functions, including sensing, wireless communication, and interfaces. This kit is ideal for beginners and offers an easy way to evaluate and integrate various modules into projects. The extensive documentation and provided tutorials facilitate the entry into development and enable rapid prototyping. Whether for educational purposes or to implement innovative ideas in areas such as environmental sensing, agriculture, or GPS tracking – the WisBlock Connected Box provides the necessary tools and resources to develop creative solutions.

- Comprehensive kit with 13 different WisBlock modules for diverse IoT applications
- Easy assembly of the modules with a handy screwdriver
- Ideal for educational purposes and rapid prototyping
- Extensive documentation and tutorials to support users.

5. RAK Wireless WisBlock LoRaWAN Earthquake Sensor Kit Sensor Node 868MHz with Solar

The WisBlock LoRaWAN Earthquake Sensor Kit from RAK Wireless is an innovative DIY solution that allows users to construct and program a custom earthquake sensor. This kit provides the capability to accurately monitor seismic activities and wirelessly transmit the collected data via LoRaWAN or LoRa P2P. The integrated Omron D7S sensor ensures highly accurate measurements and can trigger alarms during strong tremors, which is crucial for protecting machinery and buildings. The robust IP65 housing protects the components in challenging environments, while the built-in solar cell enables energy-autonomous operation. This kit is aimed at advanced users who want to customize and expand their IoT solutions. The ability to combine the system with additional WisBlock sensors offers extra flexibility and adaptability.

- High-precision Omron D7S sensor for accurate seismic measurements
- Collapse detection to identify building deformations
- Support for wireless communication via LoRaWAN and LoRa P2P
- Weatherproof IP65 housing for use in demanding environments
- Energy-autonomous operation through integrated solar cell.

6. RAK Wireless WisMesh POE Ethernet MQTT Gateway für Meshtastic

The WisMesh POE Ethernet MQTT Gateway is the perfect solution to connect your Meshtastic devices to the cloud. It allows for easy integration of Meshtastic nodes with a Meshtastic MQTT broker or your own MQTT broker. Whether you want to send sensor data, location information, or text messages to the cloud – this gateway makes it possible. The device is equipped with a WisBlock RAK4631 core module, which comes pre-installed with the Meshtastic firmware. In addition to LoRa connectivity, it features a RAK13800 Ethernet module to ensure a reliable internet connection. Optionally, you can power the gateway directly via the Ethernet cable using the RAK19018 POE module. Thanks to the robust Unify housing with an external LoRa antenna and a waterproof Ethernet port, the WisMesh POE Ethernet MQTT Gateway is ready to use right out of the box.

Recommended Accessories:
Unify Mounting Kit Vertical Type A Gray
Unify Mounting Kit Wall Type D Gray

Technical Specifications:
Manufacturer: RAK Wireless
Manufacturer SKU: 115157
Dimensions: 150 x 100 x 45 mm
Weight: 553 g

Included in the package:
1x WisMesh POE Ethernet MQTT Gateway for Meshtastic
1x WisMesh Blade Antenna
1x USB Cable.

7. RAK Wireless WisMesh Meshtastic Repeater mit 10W Solar und Akku

With the WisMesh Meshtastic Repeater including SolarBattery Lite, you are perfectly equipped for outdoor use – even far from any power supply. This well-thought-out complete set combines a powerful LoRa repeater with an independent energy supply from a robust 10 W solar panel and a durable 5200 mAh battery. The repeater is based on the proven RAK4630 module and is fully compatible with the Meshtastic protocol, allowing for easy integration into existing mesh networks. Thanks to the preconfigured firmware, setup is completed in just a few minutes – no programming knowledge is required. The weatherproof IP67 housing reliably protects the technology from water, dust, and UV radiation. The SolarBattery Lite ensures constant operation – day and night – thanks to intelligent energy management, even in changeable weather. An RGB LED provides a clear display of the current operating status. Ideal for emergency communication, outdoor adventures, research missions, or temporary infrastructure in remote areas. The compact design and included mounting bracket make installation particularly flexible.

Technical Specifications:
Manufacturer: RAK Wireless
Manufacturer SKU: C15033
LoRa Module: RAK4630 (Semtech SX1262)
MCU: nRF52840
Frequency Band: 868 MHz (EU)
Battery Capacity: 5200 mAh Li-Ion (integrated in SolarBattery Lite)
Solar Panel: 10 W monocrystalline
Input (USB-C): 5 V/1.5 A (optional for maintenance)
Operating Temperature: -20 °C to +60 °C
Housing: IP67, UV-resistant, robust
Weight: approx. 250 g
Status Indicator: RGB LED
Firmware: Meshtastic (preconfigured)
Repeater Dimensions: 118 x 78 x 40 mm
Weight: 3240 g

Delivery Contents:
1x WisMesh Meshtastic Repeater with RAK4630
1x SolarBattery Lite (RAK9154) with 10 W solar panel and 5200 mAh battery
1x LoRa antenna
1x Mounting set (screws, bracket)
1x Cable set.

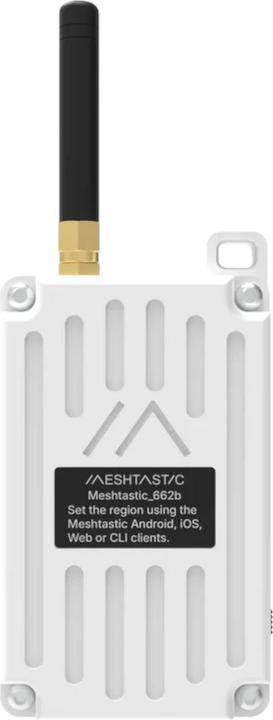

8. RAK Wireless WisMesh Pocket V2 Weiss Meshtastic

Dive into the world of Meshtastic LoRa Mesh networks with the WisMesh Pocket V2! This new version comes with enhanced security features, a sturdier casing, and even more user-friendly components. It is pre-installed with the Meshtastic firmware, making it easy to use, even for beginners. Thanks to the integrated GNSS module and accelerometer, it serves as both a tracker and a communication device in remote areas. The 1.3-inch OLED display clearly presents all essential information, while the internal BLE antenna ensures a reliable connection. With the SMA antenna connector, an external antenna can be easily attached, and the powerful 3200mAh battery guarantees long-lasting performance. Whether for outdoor adventures, emergency communication, or research – the WisMesh Pocket V2 equips you perfectly!

Info: The WisMesh Pocket V2 is an updated version of the WisMesh Pocket. It features an improved voltage regulator and optimized battery circuitry to meet European CE requirements. To comply with FCC regulations, it uses an RP-SMA antenna connector.

Technical Specifications:
Manufacturer: RAK Wireless
Manufacturer SKU: 105130
Supported Bands: IN865, EU868, AU915, US915, KR920, RU864, AS923
Baseboard: RAK19026 WisBlock
Module: RAK4631 WisDuo
Sensor Slots: 3
IO Slot: 1
Display: 1.3-inch OLED
Sensors: GNSS, Accelerometer
Internal Antenna: BLE
Housing: Sturdy casing with SMA connector
Operating Temperature: -20°C to +60°C
Battery: 3200mAh rechargeable battery
Connection: USB-C
Dimensions: 94 x 52 x 30mm
Weight: 195g

Included in the package:
1x WisMesh Pocket V2 White Meshtastic
1x 3200mAh rechargeable battery
1x LoRa antenna
1x USB cable.

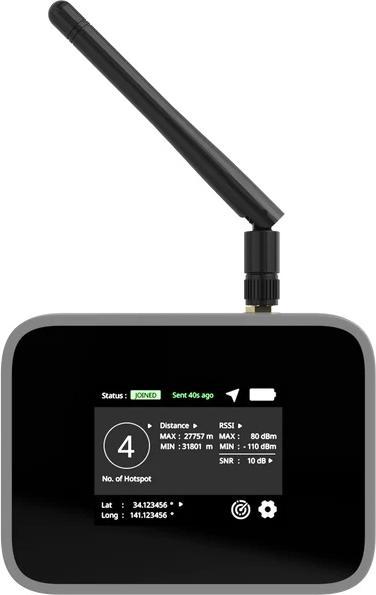

9. RAK Wireless RAK10701-P LoRaWAN Field Tester PRO EU868

The RAK10701-P is a ready-to-use device for evaluating provided LoRaWAN networks, featuring a touchscreen LCD and GNSS. It comes with a protective case and two different types of antennas, displaying the number of reachable gateways as well as other parameters such as distance, RSSI, and SNR. It is powered by a rechargeable battery and can be charged via USB Type-C.

Technical Details:
Manufacturer: RAK Wireless
Manufacturer SKU: 200005
Model: RAK10701-P
Compatible with LoRaWAN 1.0.3
Works with Helium Network, TheThingsNetwork, and custom endpoints of other LoRaWAN networks
Protected by a hard shell case, ideal for outdoor use
Includes two different types of antennas
Displays the number of gateways/hotspots in the area
Shows minimum and maximum RSSI values
Displays the minimum and maximum distance to gateways/hotspots in the area
Compatible with WisToolBox and allows for wireless configuration via BLE
Powered by a 3200 mAh battery
Rechargeable via a USB Type-C port
320x240 TFT touchscreen
Operating temperature: -10° C to 60° C
Storage temperature: -40° C to 80° C
Dimensions: 102 x 75 x 38 mm
Weight: 494 g

Included in delivery:
1x RAK10701-P LoRaWAN Field Tester PRO EU868
1x Hard shell case
1x 2.3 dBi antenna
1x 2.8 dBi antenna
1x USB cable.

10. RAK Wireless WisBlock Core RAK11310 with LoRa

This is a WisBlock Core module from RAK Wireless. The Core modules can be mounted on a WisBlock Base Board and serve as the CPU for your WisBlock project. The RAK11310 / RAK11300 features a dual-core Raspberry RP2040 MCU with the latest SX1262 LoRaWAN transceiver from Semtech.

The WisBlock ecosystem from RAK Wireless offers compact and modular solutions for creating your own IoT LoRaWAN nodes. Various CPU, sensor, and IO expansion modules can be mounted on a WisBlock Base Board. Unlike traditional connectors, the modules are secured to the Base Board with screws. This creates a safe and reliable attachment with industrial quality. Thanks to its modular and compact design, WisBlock is particularly suitable for prototyping applications in both professional and hobbyist settings.

Features:
- LoRaWAN 1.0.2 protocol (supports Class A&C)
- Raspberry RP2040 133MHz MCU
- Semtech SX1262 LoRa transceiver

Technical details:
- Manufacturer: RAK Wireless
- Manufacturer SKU: 115004
- Model: RAK11310 / RAK11300
- Voltage: 2.0V-3.6V
- I/O: 4pin UART/I2C/GPIO etc.
- Wireless: LoRaWAN 1.0.2 (A&C)
- Frequency: 868MHz
- MCU: Raspberry RP2040 133MHz
- Memory: 246KB RAM
- Operating temperature: -40°C - 70°C
- Dimensions: 30 x 20 x 5mm
- Weight: 6.6g

Included in the package:
- 1x WisBlock Core RAK11210 with LoRa
- 1x LoRa antenna.
