Best Kemo products in the Development board accessories category
On this page you'll find a ranking of the best Kemo products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Kemo Light barrier IR Light barrier
The invisible infrared light beam makes the light barrier ideal for alarm and surveillance systems. When the light beam is interrupted, the relay activates for the duration of the interruption.

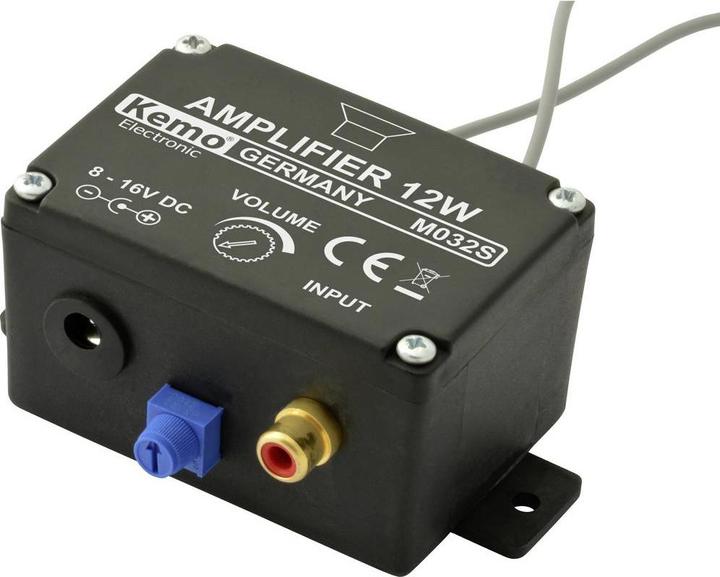

2. Kemo Mono amplifier sal 12 W Plug & Play
The amplifier module is equipped with a cinch socket for signal input, a socket for power supply, built-in volume control, and a cable for speaker connection.

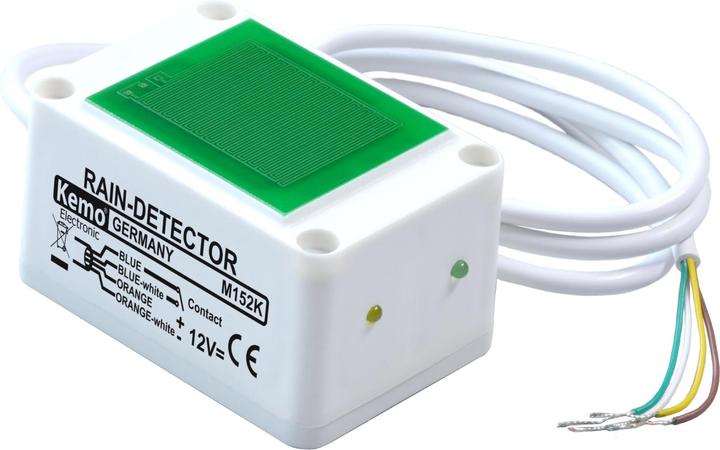

3. Kemo Rain sensor capacitive
If the fully insulated sensor plate gets wet (e.g. raindrops), then a relay switches on. Unlike rain detectors with a metal sensor, this sensor works capacitively. This means that it also switches when it comes into contact with distilled water (when the rain is completely clean). This means that skylights can be
closed, awnings retracted or only rain can be reported. 2 built-in LEDs indicate the function. The sensitivity is adjustable.
4. Kemo M 063 - Dimmer 12V 50W module
The M 063 - Dimmer 12V 50W module from Kemo is a versatile control device designed for the stepless regulation of 12 V/AC motors, incandescent lamps, and heaters. It is suitable for use with AC transformers as well as DC motors, provided a rectifier is connected in advance. This module is specifically designed for operation with a 12 V/AC transformer at a frequency of 50 to 60 Hz and should not be operated with direct current. By replacing the potentiometer, the regulation can also be expanded to voltages of 24 V/AC or 48 V/AC, which increases the module's flexibility. With compact dimensions and a thoughtful design, the M 063 module is ideal for various applications in electronics and model building.
- Stepless regulation for 12 V/AC motors and incandescent lamps
- Compatible with DC motors through an upstream rectifier
- Expandable voltage regulation to 24 V/AC and 48 V/AC
- Development board with integrated heatsink for improved heat dissipation.

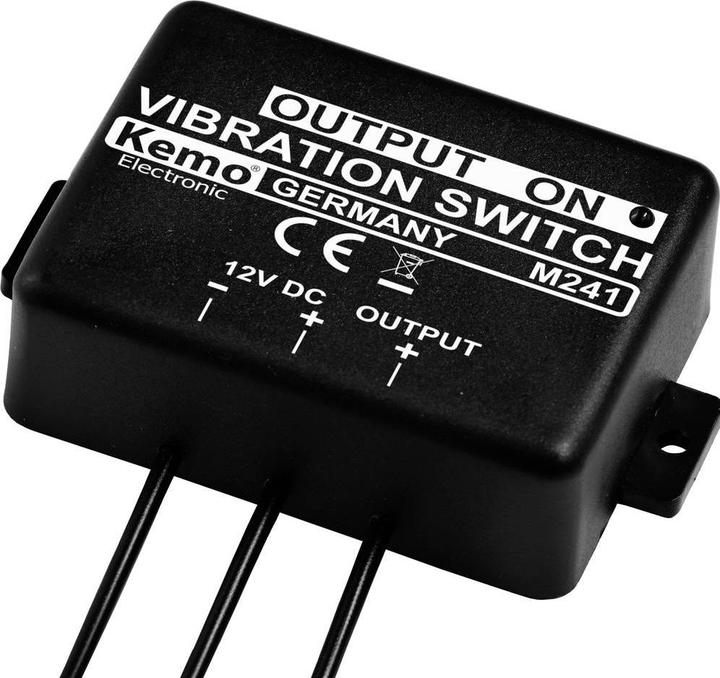

5. Kemo Vibration switch 12 V/DC
The vibration switch activates in response to engine noise and delays deactivating when the engine stops. Operating voltage: 11 - 15 V. Suitable for devices with a current draw of up to approximately 1000 mA. Indication via a blinking LED. The vibration switch, for example, activates signal horns when a machine (e.g., pump) shuts down and no longer vibrates. It can also trigger a weasel deterrent when the vehicle no longer has engine vibrations or driver disturbances and is parked.
6. Kemo Level indicator
The display is activated by pressing a button, using 10 LEDs in 10 stages, each representing 10% (display range 10 - 100%). The device is prepared for wall mounting. A connection cable to the water tank is still required (a telephone cable with at least 11 wires is recommended). A cable with fewer wires can also be used, but then it will not be possible to utilize all display levels (for example, with 8 wires, only 7 LED levels can be operated, which is often sufficient). Please order the cable separately.
Extension for larger measurements: The normal application is measuring water levels in rain barrels, water tanks, etc. It is now also possible to measure the water level in very large containers, such as deep wells, with measuring distances between the individual measuring electrodes of about 5 meters. Because the distance from the top electrode to the ground electrode is too great for such measurements to achieve a clear display (for example, at a water level of 40 m), we recommend in such cases not to place the ground electrode at the bottom of the well, but to install it as a long pipe according to the drawing, parallel to the individual measuring electrodes.

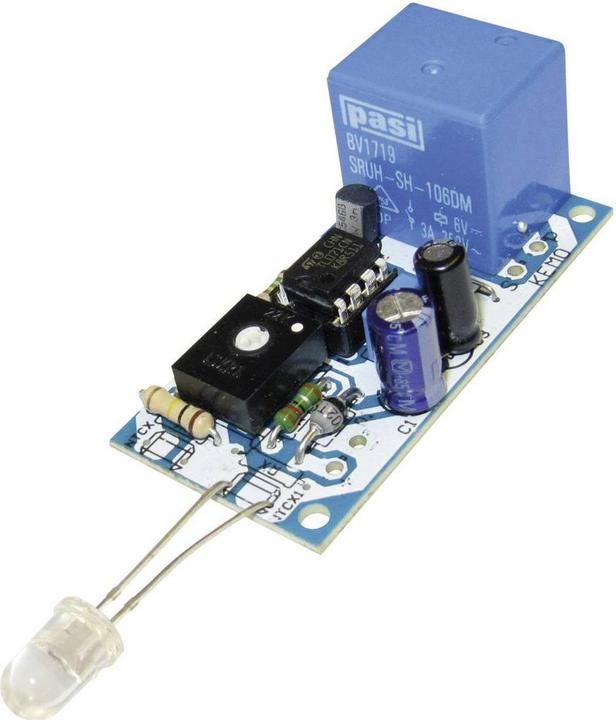

7. Kemo light gate
Switches a relay in light or darkness (shadow). When the light beam from a lamp is interrupted by a person at doors, windows, etc., the device triggers an alarm. It can also be used as a dusk switch.

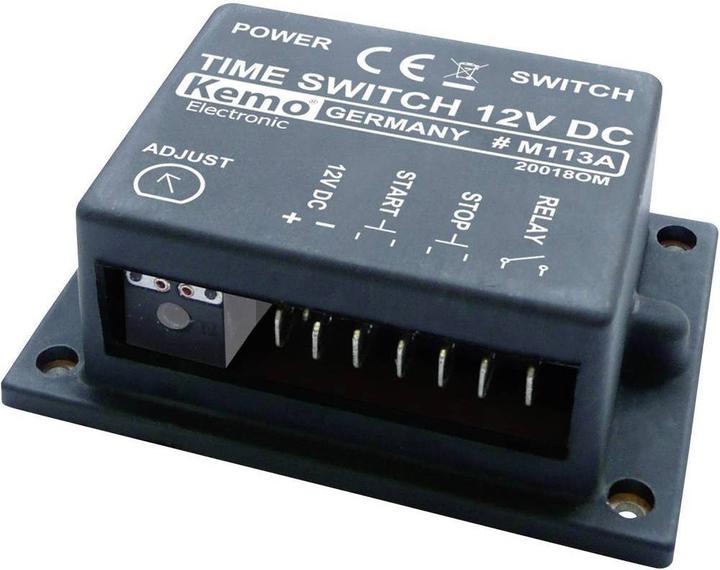

8. Kemo Timer
Switches other devices on with the built-in relay contact after a button press and automatically turns them off again after the set time. The timer can be stopped at any time by pressing the second button. Two push buttons are also required for operation.

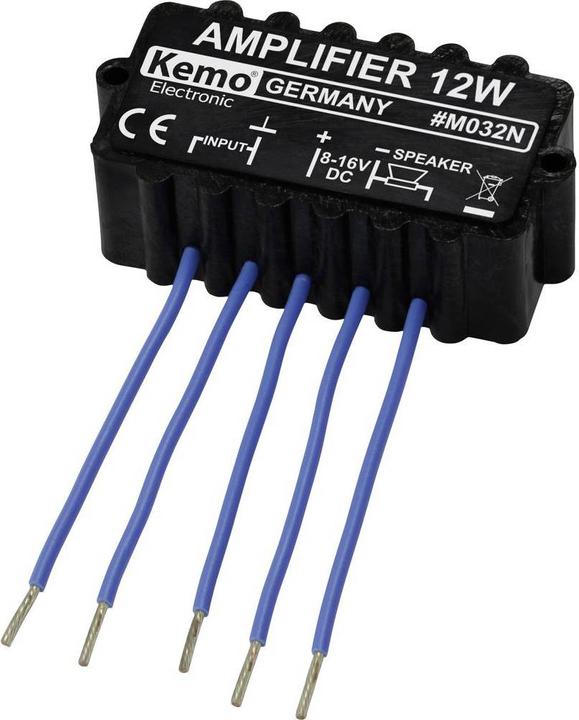

9. Kemo Amplifier module
Robust amplifier module for universal use as a loudspeaker power amplifier. The module is encapsulated to be moisture and vibration resistant. The potting compound and the module housing are made of a special, highly heat-conductive plastic. No additional heat sink is required. The module is electronically protected against overheating and overloading.

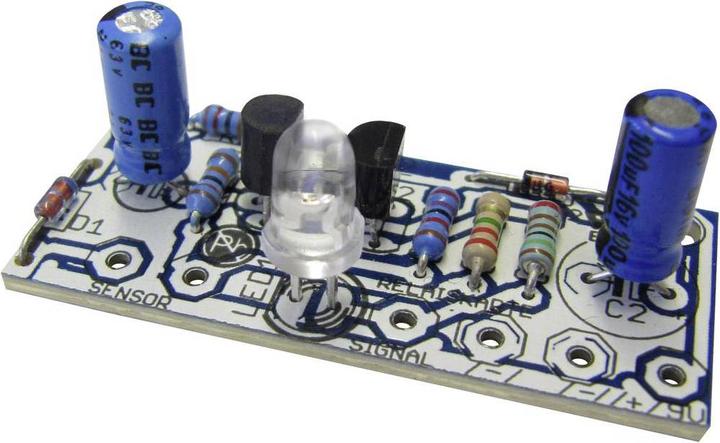

10. Kemo Water level indicator 9 V/DC
When two bare wires come into contact with water, a light-emitting diode lights up. The device is suitable for reporting overflowing rain barrels and gutters.
