Best selling Development board accessories from Berrybase

On this page you’ll find a ranking of the best Development board accessories from Berrybase. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.

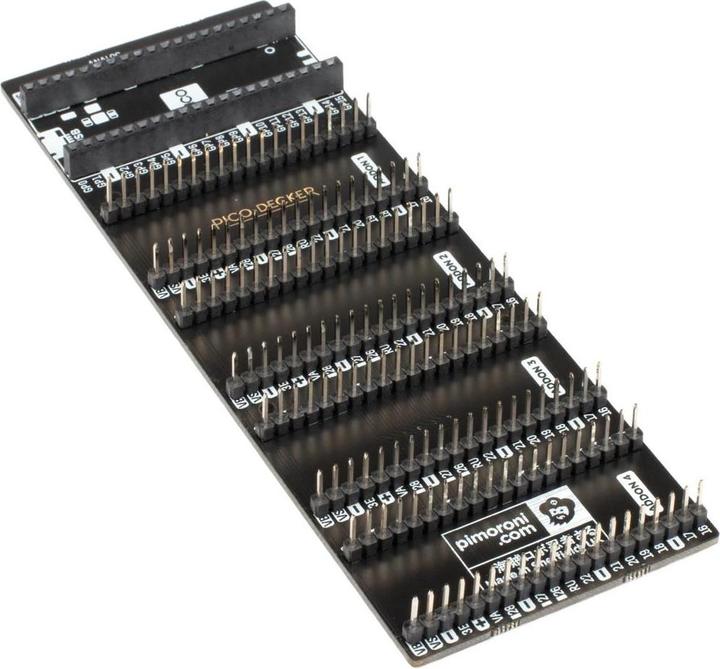

1. Berrybase Pico Decker (Quad Expander)

Double your GPIO pins and connect up to four add-ons to a single Raspberry Pi Pico with the formidable Pico Decker Expander Board!

Are you faced with the dilemma of choosing between Pico add-ons? Combine an epic stack of features and connect up to four Pico Packs or Bases simultaneously, or use the four fully labeled male GPIO pins to easily connect other devices, jumper wires, or circuits - very useful for prototyping. We’ve also included some small rubber feet to keep everything stable, four M2.5 mounting holes, and particularly quirky, Routemaster bus-inspired artwork on the back.

A Raspberry Pi Pico is not included!

Features
* A landing area with labeled sockets for connecting to your Pico
* Four landing areas with labeled (mirrored) pin headers for connecting expansion boards
* 4x M2.5 mounting holes
* 4x rubber feet
* Compatible with Raspberry Pi Pico
* 99% pre-assembled - you just need to stick on the feet!
* No soldering required
* Dimensions: approx. 148mm x 52mm x 13mm (including feet and headers)

Notes
* If you are using multiple Pico add-ons, you need to check for potential conflicts with the data pins - we recommend using pinout.xyz or checking the shop page of the respective add-on!
* If you need to connect a Pico Base to the Pico Decker, you should do so with a jumper (male/female) to keep things tidy and prevent everything from getting turned upside down!.

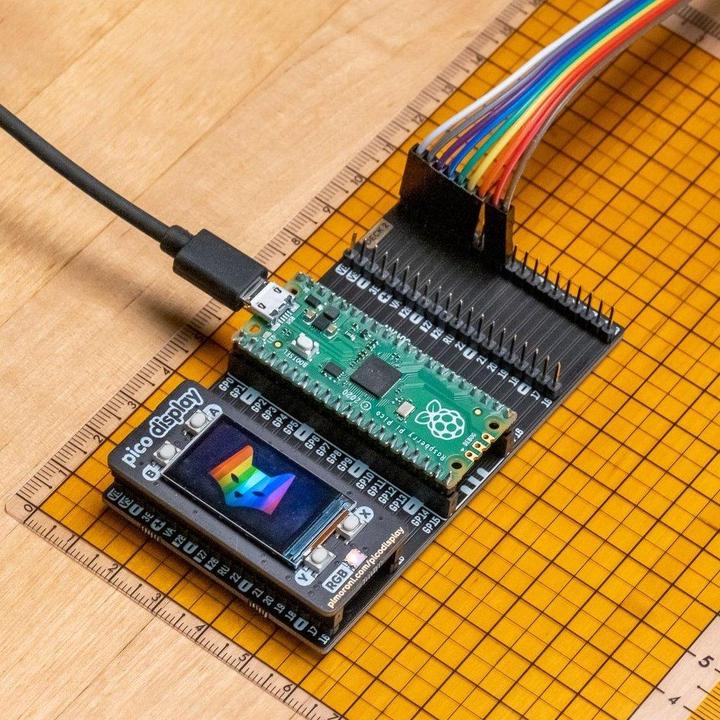

2. Berrybase Pico Omnibus (Dual Expander)

Double your GPIO pins and connect two add-ons to a single Raspberry Pi Pico with our expansive Pico Omnibus!

Having trouble deciding which Pico add-on to choose? With the Pico Omnibus, you can connect two Pico Packs or Bases at once, or use the additional set of male GPIO pins to connect other devices, jumper wires, or circuits—very useful for prototyping. We’ve labeled all three connections helpfully, so you can be sure that all those lovely wires are routed correctly. Plus, we’ve added a few small feet to keep everything securely in place.

A Raspberry Pi Pico is not included!

Features
* A landing area with labeled socket strips for connecting to your Pico
* Two landing areas with labeled (mirrored) pin strips for attaching expansions
* 4x rubber feet
* Compatible with Raspberry Pi Pico
* 99% pre-assembled - just attach the feet!
* Fully assembled
* No soldering required
* Dimensions: approximately 94 mm x 52 mm x 12 mm (including pin strips)

Notes
* When using multiple Pico add-ons, be mindful of data pin conflicts - we recommend using pinout.xyz or checking the shop page of the respective add-on!
* If you connect a Pico Base to the Pico Omnibus, do so with a jumper (male/female) to keep everything organized and avoid any confusion!.

3. Berrybase Antenna kit for Raspberry Pi Compute Module 4

Compute Module 4 - Variants that include the optionally selectable onboard radio module (CM41xxxxx) feature an integrated PCB antenna. The available UFL connector allows for the use of an external optional antenna. The antenna set is specifically pre-certified and suitable for use with CM4 and the IO Board.

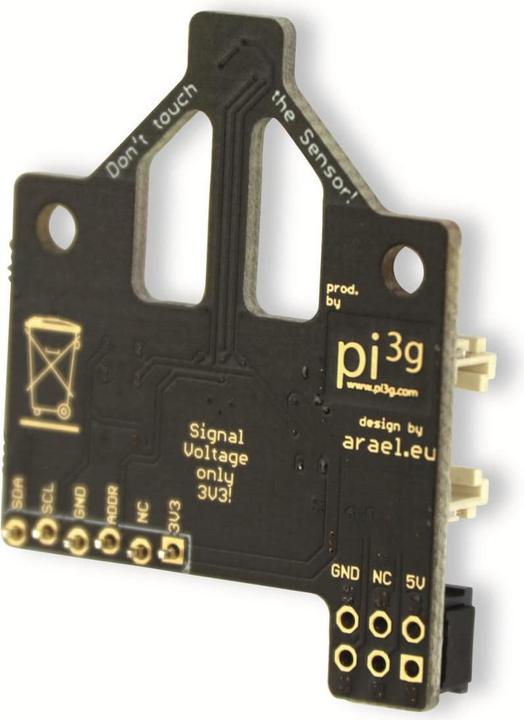

4. Berrybase BME688 Breakout Board Bosch Air Quality Sensor

The BME688 Breakout Board from Bosch is a versatile development board specifically designed for measuring air quality parameters. It enables the collection of important environmental data such as air quality, temperature, and pressure. The integrated air quality sensor calculates the Indoor Air Quality Index (IAQ) using Bosch's software, the BSEC library. This board is ideal for developers and researchers looking to implement projects in the fields of environmental monitoring and smart home technologies. With its user-friendly interface and precise measurement functions, the BME688 Breakout Board provides an excellent foundation for innovative applications.

- Enables measurement of air quality, temperature, and pressure
- Calculation of the Indoor Air Quality Index (IAQ) via the BSEC library
- Ideal for applications in environmental monitoring and smart home technologies.

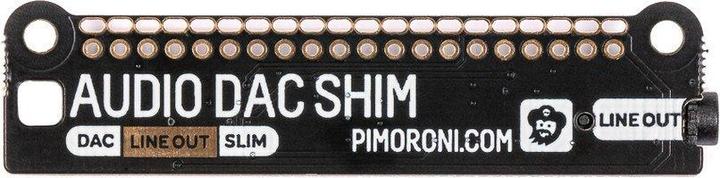

5. Berrybase Audio DAC SHIM

The Berrybase Audio DAC SHIM is an innovative solution to bring HiFi audio quality to your Raspberry Pi. This compact module allows for the output of digital audio signals via the I2S interface and offers impressive audio quality with 24-bit and 192 kHz. The PCM5100A DAC chip ensures precise and clear sound reproduction, while the 3.5mm stereo jack provides an easy connection to speakers or headphones. The SHIM is designed to plug directly onto the GPIO pins of the Raspberry Pi without the need for soldering, making installation particularly user-friendly. With its sleek design, the Audio DAC SHIM seamlessly integrates into various enclosures and is ideal for applications in HiFi devices, media centers, or radios. It is also a practical extension for the Raspberry Pi Zero or Pi 400 to add high-quality audio output.

- PCM5100A DAC chip for high-quality audio processing
- Outputs 24-bit / 192 kHz digital audio via I2S
- Easy installation with friction-fit header, no soldering required
- 3.5mm stereo jack output for versatile connectivity options
- Fully assembled and ready to use.

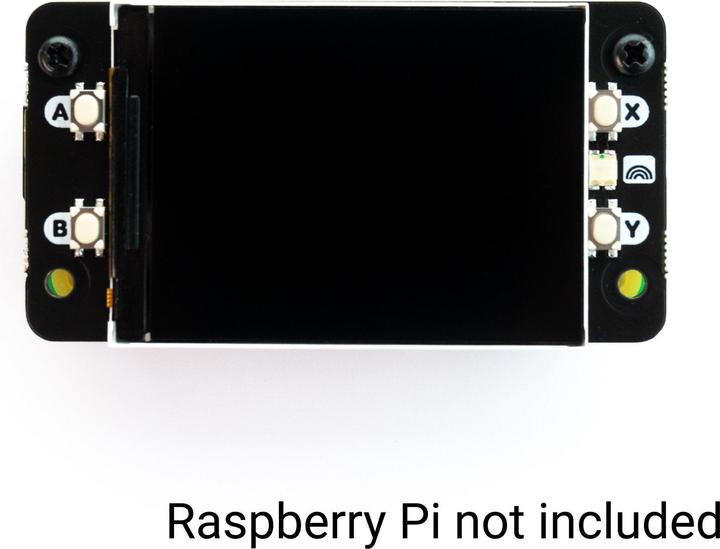

6. Berrybase Pimoroni Display HAT Mini

The Pimoroni Display HAT Mini is a compact and powerful IPS LCD display module specifically designed for use with Raspberry Pi. With a screen size of 2.0 inches and a resolution of 320 × 240 pixels, it offers an impressive color depth of 18 bits, allowing for the display of up to 65,000 colors. The IPS technology provides a wide viewing angle and high color accuracy, making it ideal for various applications, from IoT control panels to digital photo frames and retro gaming consoles. The display comes fully assembled and can be easily connected via the SPI interface to any Raspberry Pi with a 40-pin GPIO header, without the need for soldering. It includes suitable standoffs to ensure a stable connection. Additionally, the module features integrated buttons for direct control and an RGB LED for status indication, further enhancing the user experience.

- IPS LCD display with a resolution of 320 × 240 pixels and 18-bit color depth
- Wide viewing angle and high color accuracy
- Integrated buttons for physical input
- RGB LED for signaling status information
- Compatible with Qwiic/STEMMA QT and I2C headers for easy expansion.

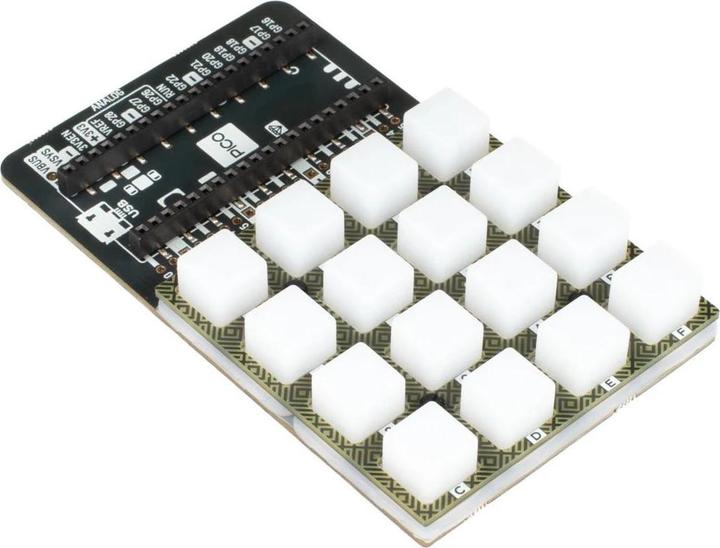

7. Berrybase Raspberry Pi Pico RGB Keypad Base

The Raspberry Pi Pico RGB Keypad Base from Berrybase is an innovative accessory for developers that features a 4x4 keyboard with impressive RGB lighting. This keyboard is ideal for creating custom USB input devices and allows for creative projects that benefit from its unique illumination. The silicone keyboard is equipped with addressable APA102 LEDs, enabling each key to be lit up in a variety of colors. The sturdy base with rubber feet ensures that the keyboard remains secure and level, while the labeled landing area for the Raspberry Pi Pico allows for easy integration. The ability to utilize all Pico pins opens up numerous connection possibilities for additional hardware. This RGB Keypad Base is not only functional but also an appealing element for various projects, whether as a macro keyboard, synth controller, or in creative applications like a code-protected door lock or interactive games.

- 4x4 silicone keyboard with conductive keys
- 16 addressable APA102 RGB LEDs for customizable lighting
- Sturdy base with rubber feet for secure placement
- Easy integration with Raspberry Pi Pico and other hardware components.

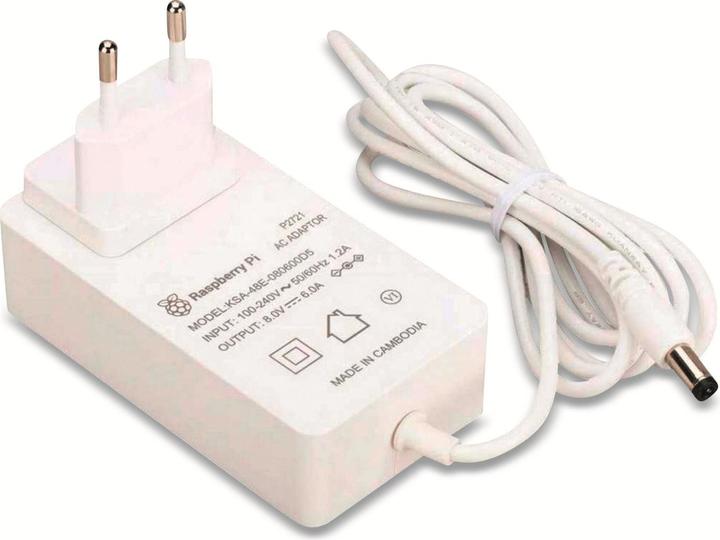

8. Berrybase 48W power supply for Raspberry Pi Build HAT, EU, white

Power your Raspberry Pi Build HAT projects with the Raspberry Pi Build HAT Power Supply. This 48W power supply provides enough power for the Build HAT and the connected LEGO Technic motors, as well as your Raspberry Pi computer. The Build HAT is compatible with the LEGO Technic motors and sensors included in the LEGO Education SPIKE portfolio. With the Build HAT and the power of the Raspberry Pi computer, you can combine simple building possibilities to create creative and robust projects.

Specification:
Output
- Output voltage: +8.0V DC
- Minimum load current: 0.01A
- Rated load current: 6.0A
- Maximum power: 48.0W
- Load regulation: ±5%
- Line regulation: ±5%
- Ripple and noise: 200mVp-p
- Rise time: maximum 100ms up to the regulation limits for DC outputs
- Switch-on delay: 3000ms maximum at nominal input AC voltage and full load
- Protection: short circuit protection, overcurrent protection, overvoltage protection
- Efficiency: minimum 87.77% (output current of 100%, 75%, 50%, 25%)
- Output cable: 1.5m 16AWG
- Output plug: barrel plug
- Dimensions: 5.5mm × 2.1mm × 11mm
- Centre positive

Input
- Voltage range: 100-240Vac (rated), 96-264Vac (operating)
- Frequency: 50/60Hz ±3Hz
- Current: maximum 1.2A
- Power consumption (without load): maximum 0.1W
- Inrush current: no damage must occur and the input fuse must not blow.

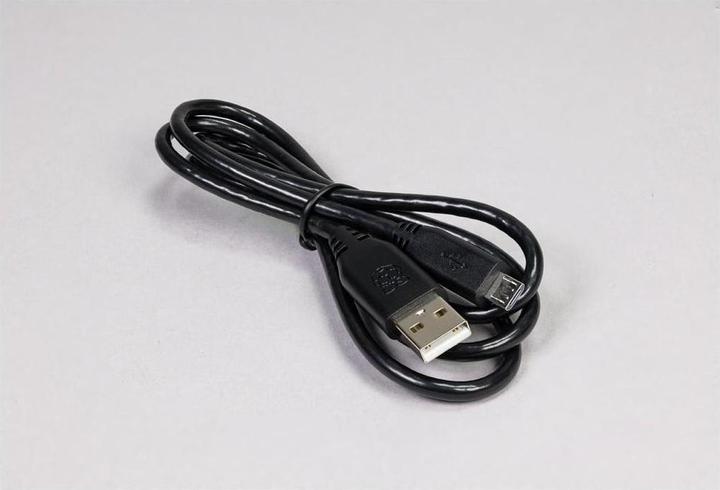

9. Berrybase Official Raspberry Pi Micro USB cable, black

The official Raspberry Pi Micro USB cable from Berrybase is an essential accessory for anyone working with the Raspberry Pi Pico. With a length of 1 meter, it allows for easy connection between the Raspberry Pi Pico and a USB-A 2.0 port. The cable is designed in a simple black color and provides reliable data transfer as well as stable power supply. It is specifically designed for use with Raspberry Pi devices, ensuring optimal performance. This cable is ideal for developers and tech enthusiasts who want to implement their projects efficiently. It is suitable for both development use and everyday applications, offering high flexibility in connecting devices.

- Optimal connection for Raspberry Pi Pico via USB-A 2.0 to Micro USB 2.0 Type B
- Reliable data transfer and power supply
- Durable and flexible design for versatile applications.

10. Berrybase Official housing for Raspberry Pi Zero red/white

The official Raspberry Pi Zero and Zero Wireless Case is now available! Specifically designed and available in the classic colors of red and white, this sleek and sturdy snap-together case is perfect for protecting your Raspberry Pi Zero.
