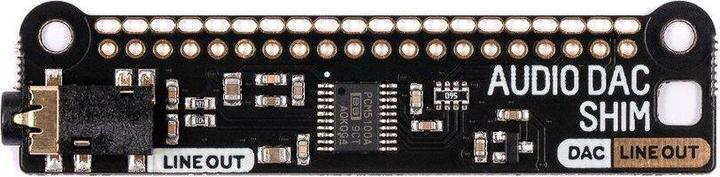

Berrybase Audio DAC SHIM

The Berrybase Audio DAC SHIM is an innovative solution to bring HiFi audio quality to your Raspberry Pi. This compact module allows for the output of digital audio signals via the I2S interface and offers impressive audio quality with 24-bit and 192 kHz. The PCM5100A DAC chip ensures precise and clear sound reproduction, while the 3.5mm stereo jack provides an easy connection to speakers or headphones. The SHIM is designed to plug directly onto the GPIO pins of the Raspberry Pi without the need for soldering, making installation particularly user-friendly. With its sleek design, the Audio DAC SHIM seamlessly integrates into various enclosures and is ideal for applications in HiFi devices, media centers, or radios. It is also a practical extension for the Raspberry Pi Zero or Pi 400 to add high-quality audio output.

• PCM5100A DAC chip for high-quality audio processing
• Outputs 24-bit / 192 kHz digital audio via I2S

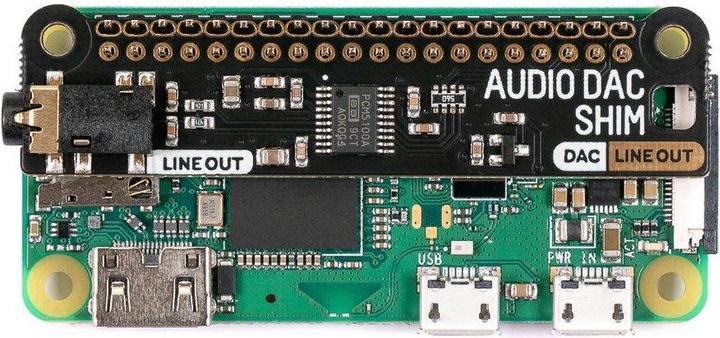

• Easy installation with friction-fit header, no soldering required
• 3.5mm stereo jack output for versatile connectivity options
• Fully assembled and ready to use.
