Best selling Converters from Moxa
On this page you'll find a ranking of the best Moxa products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.
1. Moxa UPort 1110
The UPort 1100 series USB-to-Serial converters are the perfect accessory for laptops or workstation computers without a serial interface. They are essential for engineers who need to connect various serial devices on-site or separate interface converters for devices without a standard COM port or DB9 connector. The UPort 1100 series converts from USB to RS-232/422/485. All products are compatible with older serial devices and can be used with instrument and POS applications. Package includes: MOXA UPort 1110.

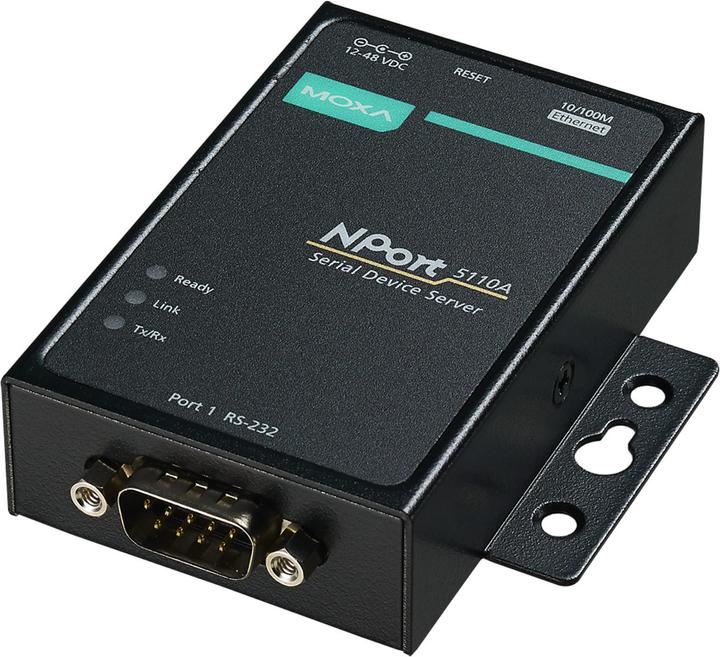

2. Moxa NPort 5110A
Serial 1-Port RS-232 device server with SNMP MIB-II for network management. Configuration via Telnet or web browser. Real COM/TTY drivers for Windows and Linux. Integrated 15 kV ESD protection for all serial signals. Standard TCP/IP interface and versatile operating modes. Easy web-based configuration. The web-based configuration tool of the NPort 5110A is straightforward and user-friendly. The web console guides you through three simple configuration steps necessary to activate the serial-to-Ethernet application. With this fast, web-based configuration, a user typically only needs 30 seconds to set the NPort settings and activate the application, saving a significant amount of time and effort.

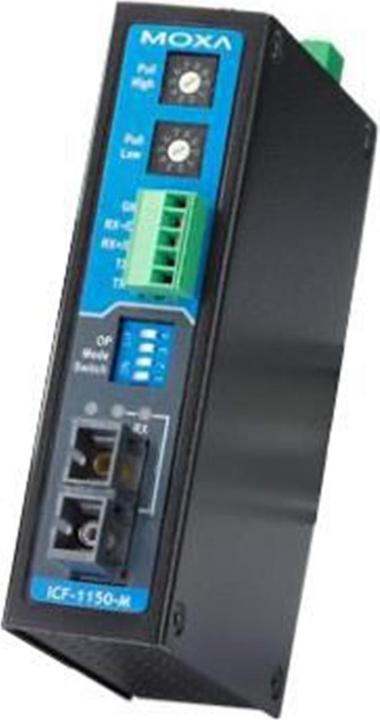

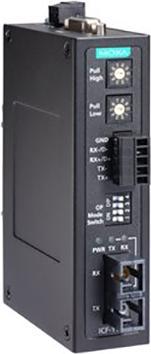

3. Moxa ICF-1150I-M-SC-T
The ICF-1150 serial-to-fibre converters transfer RS-232/RS-422/RS-485 signals to fibre optic connections to increase the transmission distance. When an ICF-1150 device receives data from any serial port, it transmits the data via the fibre optic ports. These products support single-mode and multi-mode fibre optics for different transmission distances, and models with isolation protection are also available to enhance interference immunity.
The ICF-1150 products offer three-way communication and a rotary switch for setting the pull high/low resistance for on-site installation. The ICF-1150 series supports two serial ports with a DB9 connector for RS-232 communication and a detachable terminal block for RS-422 or RS-485 communication. The three ports (two serial ports and one fibre optic port) are completely independent of each other. When an ICF-1150 converter receives data from one of the ports, it sends the data via the other two ports. For example, when the ICF-1150 converter receives a command from the remote master via the fibre optic port, it converts the signal and sends the command via the RS-232 and RS-422/485 ports simultaneously. If the user is monitoring a system running on an RS-485 network, no additional RS-232 to RS-485 converter is required to connect the laptop's serial port to the RS-485 bus.
The RS-485 interface supports multidrop or daisy chain connections, which are used by system engineers to connect serial devices such as counters, RTUs, and readers together on the same bus. As the number of serial devices on the same bus increases the impedance of the data line, the ICF-1150 allows the user to set the pull high/low resistance. Simply turn the switch to the appropriate value without removing the ICF-1150 from the DIN rail.
4. Moxa NPort 5130
NPort 5100 device servers are designed to make serial devices instantly network-capable. Their compact size makes them ideal for connecting devices such as card readers and payment terminals to an IP-based Ethernet LAN. Use the NPort 5100 device servers to provide your PC software with direct access to serial devices from anywhere on the network. Package includes: MOXA NPort 5130, quick installation guide.
5. Moxa TCF-90-S-ST - RS-232 to single-mode ST fiber optic converter, port powered
Moxa's industrial-grade serial-to-fiber optic converters can convert RS-232/422/485 to optical fiber, providing users with an easy and reliable way to communicate with their serial devices.
RS-232 to single-mode ST fiber optic converter, port powered.
Serial Interface
- Number of Ports: 2
- Serial Standards: RS-232
- Flow Control: ADDC (automatic data direction control) for RS-485
- Connector: Single-mode ST connector
- Baudrate: 300 bps to 115.2 kbps
Serial Signals
- RS-232: TxD, RxD, GND
Power Parameters
- Input Current: 5 to 12 VDC, 20 mA (max.)
- Input Voltage: 5 to 12 VDC
- Number of Power Inputs: 1
- Overload Current Protection: Supported
- Source of Input Power: Power input jack
Physical Characteristics
- Housing: Plastic
- IP Rating: IP30
- Dimensions: 42 x 80 x 22 mm (1.65 x 3.15 x 0.87 in)
- Weight: 150 g (0.33 lb)
- Installation: Desktop
Environmental Limits
- Operating Temperature: 0 to 60°C (32 to 140°F)
- Storage Temperature: -20 to 75°C (-4 to 167°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
Standards and Certifications
- EMC: EN 55032/35
- EMI: CISPR 32, FCC Part 15B Class A
- EMS:
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV
IEC 61000-4-5 Surge: Power: 2 kV
IEC 61000-4-6 CS: 3 V
IEC 61000-4-8 PFMF
- Environmental Testing:
IEC 60068-2-1
IEC 60068-2-14
IEC 60068-2-2
IEC 60068-2-3
- Safety: UL 60950-1
- Vibration: IEC 60068-2-6
MTBF
- Time: 2,272,562 hrs
- Standards: Telcordia (Bellcore), GB.
6. Moxa IMC-101-S-SC-T
The industrial media converters IMC-101 provide industrial-grade media conversion between 10/100BaseT(X) and 100BaseFX (SC/ST connectors). The reliable industrial design of the IMC-101 converters is ideal for the continuous operation of your industrial automation applications. Each IMC-101 converter comes with a warning alarm at the relay output to prevent damage and losses. The IMC-101 media converters are designed for harsh industrial environments, such as in hazardous locations (Class 1, Division 2/Zone 2, IECEx, DNV, and GL certified), and comply with FCC, UL, and CE standards. The IMC-101 series models support an operating temperature of 0 to 60 °C and an extended operating temperature of -40 to 75 °C. All IMC-101 converters undergo a 100% burn-in test.
7. Moxa UPORT 1450I-G2-T - USB to 4-port RS-232/422/485 converter with 2 kV insulation protection
The UPORT 1450I-G2-T from Moxa is a powerful USB-to-serial converter specifically designed for industrial applications. With the capability to connect up to four serial RS-232/422/485 devices through a single USB port, this device offers a flexible solution for data communication. The converter supports a wide range of baud rates from 50 bps to 921.6 kbps and is equipped with advanced UARTs that ensure high serial performance. The UPORT 1450I-G2-T is designed for use in demanding environments and features 2 kV isolation protection to safeguard connected devices from voltage surges. With an operating temperature range of -40 to 75 °C, this converter is ideal for use in harsh industrial settings. The USB interface complies with USB 3.2 Gen 1 as well as USB 1.1/2.0 standards, allowing for a high data transfer rate of up to 5 Gbps.
- Supports up to 16 serial devices via one USB port
- Operating temperature range of -40 to 75 °C
- 2 kV isolation protection for enhanced safety
- Compatible with Windows operating systems including Windows 11
- Automatic Data Direction Control (ADDC) for RS-485.
Converters
CHF749.–
Moxa UPORT 1450I-G2-T - USB to 4-port RS-232/422/485 converter with 2 kV insulation protection
8. Moxa IMC-21GA-LX-SC - Industrial 101001000BaseT(X) to 1001000Base SC media converter, 10 km, -10 to 60
The IMC-21GA-LX-SC from Moxa is an industrial media converter that provides a reliable connection between Ethernet and fiber optic networks. With a range of up to 10 km and an operating temperature of -10 to 60 °C, this device is designed for use in demanding industrial environments. The converter supports 10/100/1000BaseT(X) via an RJ45 port and 100/1000Base SC through a single-mode connection. Thanks to its innovative remote management and robust design, the IMC-21GA-LX-SC offers high reliability and flexibility to meet the requirements of various applications. DIN rail mounting allows for easy installation, while the built-in magnetic isolation protection ensures additional safety. This media converter is an ideal solution for companies that need a stable and high-performance network connection.
- Innovative remote management for easy monitoring and control
- Robust design for industrial applications
- Built-in magnetic isolation protection with 1.5 kV
- DIN rail mounting for flexible installation
- Wide operating temperature range of -10 to 60 °C.
Converters
CHF499.–
Moxa IMC-21GA-LX-SC - Industrial 101001000BaseT(X) to 1001000Base SC media converter, 10 km, -10 to 60
9. Moxa PTC-101-S-ST-HV - Industrial 10100BaseT(X) to 100BaseFX media converter
The PTC-101-S-ST-HV from Moxa is an industrial media converter that enables a reliable connection between Ethernet and fiber optic networks. This converter supports the conversion from 10/100BaseT(X) to 100BaseFX and is specifically designed for use in demanding industrial environments. With a robust metal housing and a flexible, modular design, it offers high reliability and adaptability. The media converter is suitable for operating temperatures ranging from -40 to 85 °C, ensuring stable performance under extreme conditions. Additionally, the innovative remote management feature allows for easy monitoring and management of the device, enhancing efficiency in industrial applications.
- Innovative remote management for easy monitoring and management
- Robust design for use in extreme temperatures from -40 to 85 °C
- Magnetic isolation protection up to 1.5 kV
- DIN rail mounting for easy installation
- Supports a wide range of input voltages (100 to 240 VAC/VDC).
10. Moxa NPort 5110
NPort 5100 device servers are designed to make serial devices instantly network-capable. The compact size of the servers makes them ideal for connecting devices such as card readers and payment terminals to an IP-based Ethernet LAN. Use the NPort 5100 device servers to provide your PC software with direct access to serial devices from anywhere in the network. Package includes: MOXA NPort 5110, quick installation guide.
