Best selling Cables + Plugs from Hirose Electronic
This page always stays fresh and updates automatically.
1. Hirose Electronic 4way Female Plug Solder
Number of contacts: 4
Gender: Plug, Plug
Mounting type: Cable mounting
Connection type: Soldering
Housing size: 7 mm
Rated current: 2 A
Contact gender: Socket contact
Operating voltage: 100 V AC
Connection type: Push-Pull
Housing orientation: Straight
Series: HR10
Minimum operating temperature: -25 °C
To ensure complete assembly of the brass strain relief, 7727115 must be crimped. Push-Pull circular connectors Hirose Series HR10A. The round high-performance micro-connectors of the HR10A series consist of plugs, jacks, and sockets with a compact, lightweight, and robust design. These circular connectors feature a simple push-pull coupling mechanism for quick and easy connection and disconnection. The push-pull mechanism also saves space and allows for high connection density. For precise mating, these HR10A circular connectors have a five-part alignment system, and the contact pin is protected against damage during blind mating.
Features and benefits:
- Compact and lightweight design
- Simple push-pull coupling mechanism
- High mounting density
- 5-key alignment system prevents incorrect mating
- Contact pin protected from damage
Product application information:
The circular connectors of the HR10A series, with their compact and durable design, are ideal for use in small electronic devices. Applications include computers and peripherals, audio devices, video equipment, portable wireless devices, and measuring instruments.
2. Hirose Electronic Hirose Knickschutztülle für Modularstecker TM11, grün, VE: 100
The Hirose strain relief sleeve for modular connector TM11 is a practical solution for protecting plug connections. This sleeve, made of durable plastic, has been specifically designed to prevent damage to the connector and extend the lifespan of the connection. Installation occurs before crimping the connector, ensuring a secure and lasting connection. It is important to note that later replacement of the sleeve is not possible, making careful installation essential. The strain relief sleeve is available in a packaging unit of 100 pieces, making it an ideal choice for projects with multiple connections. The green color of the sleeve allows for easy identification and can be used in various applications.
- Durable plastic sleeve for optimal protection
- Installation before crimping the connector is required
- Packaging unit of 100 pieces for extensive applications.
Cables + Plugs
CHF18.90
Hirose Electronic Hirose Knickschutztülle für Modularstecker TM11, grün, VE: 100

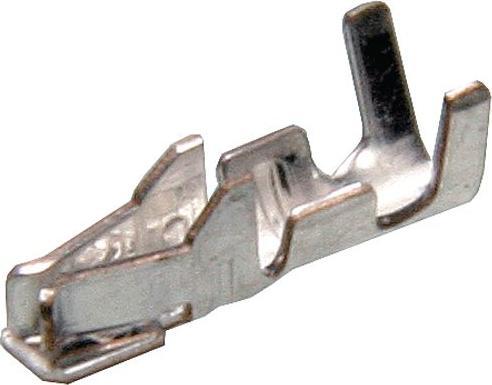

3. Hirose Electronic Crimpkontakt, Buchse, 2A, 22AWG, Packung à 100 Stück
The DF11-22SC crimp contact is a reliable socket designed for applications with a rated current of up to 2 A. With a maximum wire diameter of 22 AWG, this contact provides a secure connection for various electronic projects. Made from high-quality phosphor bronze and coated with tin, it ensures excellent conductivity and corrosion resistance. The crimp connection type allows for easy and effective assembly, while the pack of 100 pieces offers a cost-effective solution for larger projects. This socket is specifically suitable for the DF11 series and features a robust design that is ideal for use in various electrical applications.
- Reliable socket for rated current up to 2 A
- Maximum wire diameter of 22 AWG
- Made from phosphor bronze with tin coating
- Pack of 100 pieces for cost-effective use.
4. Hirose Electronic Mini plug connector Socket 12 number of contacts, 2A, 42VDC, IP67 / IP68
The HR30-7P-12S(71) mini connector from Hirose Electronic is a reliable solution for various electronic applications. With 12 contacts and a rated voltage of 42 VDC, as well as a rated current of 2 A, this connector provides a robust connection for demanding environments. The connector is designed for operating temperatures ranging from -25 °C to 85 °C, making it versatile for different uses. The IP67/IP68 protection class ensures that the connector is dust-tight and protected against temporary immersion in water. The push-pull coupling method allows for easy handling and a secure connection. The plastic housing offers high resistance and durability, while the gold-plated contacts ensure a reliable electrical connection. This mini connector is ideal for applications that require a compact and weatherproof solution.
- IP67/IP68 protection class for high resistance to water and dust
- Operating temperature range of -25 °C to 85 °C
- Push-pull coupling method for easy handling
- Gold-plated contacts for improved electrical conductivity
- UL listed for additional safety assurances.
Cables + Plugs
CHF13.66
Hirose Electronic Mini plug connector Socket 12 number of contacts, 2A, 42VDC, IP67 / IP68
5. Hirose Electronic Mini-Kabelverbinder Stecker 12 Anzahl Kontakte, 2A, 140VDC, IP67
The mini cable connector plug from Hirose Electronic is a reliable solution for demanding applications. With 12 contacts and a rated voltage of 140 VDC, this plug is ideal for use in various electrical systems. It offers a rated current of 2 A and is designed for operating temperatures ranging from -25 °C to 85 °C, making it versatile. The plug is equipped with an IP67 protection rating, which protects it from dust and water, making it particularly suitable for use in harsh environments. The robust zinc alloy and silver plating of the contacts ensure high conductivity and durability. The push-pull coupling method allows for easy and secure connections, while the cable retention feature ensures stable mounting.
- IP67 protection rating for dust and water resistance
- Operating temperature range of -25 °C to 85 °C
- Robust zinc alloy for high durability
- Easy connection through push-pull coupling.
Cables + Plugs
CHF23.91
Hirose Electronic Mini-Kabelverbinder Stecker 12 Anzahl Kontakte, 2A, 140VDC, IP67
6. Hirose Electronic 20Way Male Plug Solder
Number of contacts: 20
Mounting type: Cable mounting
Connection type: Soldering
Housing size: 13 mm
Rated current: 2 A
Contact gender: Male
Operating voltage: 100 V AC
Connection type: Push-Pull
Housing orientation: Straight
Series: HR10
Minimum operating temperature: -25 °C
To ensure complete assembly of the brass strain relief, 7727115 must be crimped. Push-Pull circular connectors Hirose Series HR10A. The round high-performance micro connectors of the HR10A series consist of plugs, jacks, and sockets with a compact, lightweight, and robust design. These circular connectors feature a simple push-pull coupling mechanism for quick and easy connecting and disconnecting. The push-pull mechanism also saves space and allows for high connection density assembly. For precise plugging, these HR10A circular connectors have a five-part alignment system, and the contact pin is protected against damage during blind mating.
Features and benefits:
- Compact and lightweight design
- Simple push-pull coupling mechanism
- High mounting density
- 5-key alignment system prevents incorrect plugging
- Contact pin protected from damage
Product application information:
The HR10A series circular connectors are ideal for use in small electronic devices due to their compact, durable design. Applications include computers and peripherals, audio devices, video devices, portable wireless devices, and measuring instruments.

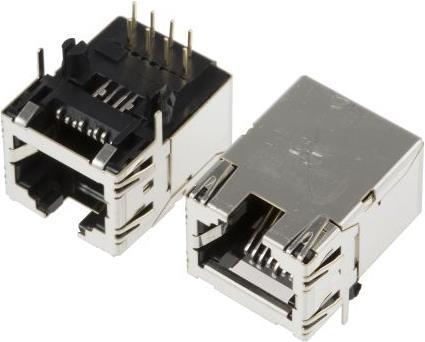

7. Hirose Electronic 8 way Cat6 shielded RJ45 PCB socket,1.5A
Gender: female
LAN category: Cat. 5e
Number of ports: 1
Number of outlets: 8P8C
Connection type: RJ45, socket strip
Shielding type: STP
Orientation: right angle
Length: 21 mm
Width: 16 mm
Depth: 17.35 mm
Series: TM21R
Contact material: copper alloy
Contact plating: gold
PCB socket, Cat. 6. This shielded 8-pin RJ45 PCB socket from Hirose is ideal for high-speed LAN transmission and features EMC protection. This PCB modular jack is robust and compact, designed for use with a Cat. 6 plug.
8. Hirose Electronic 6 way video push-pull cable mount socket
Number of contacts: 6
Connector / Socket: Plug
Connection type: Soldering
Housing size: 7 mm
Rated current: 2 A
Contact type: Socket contact
Operating voltage: 100 V AC
Connection type: Push-Pull
Housing orientation: Straight
Series: HR10
Housing material: Zinc
Minimum operating temperature: -25 °C
The cable socket fits cable or panel plugs. The cable plug fits cable or panel sockets. The Push/Pull series HR10 is an extremely durable and reliable series of compact, subminiature connectors featuring a smooth Push-Pull locking mechanism for quick connection and disconnection. A positioning system with five alignment pins helps prevent incorrect mating. Contacts with solder cup.
9. Hirose Electronic RJ45 connector, shielded CAT5e HRS8GN10 plug, straight
The RJ45 connector from Hirose Electronic is a shielded CAT5e plug designed for reliable network connections. With its straight design and 8P8C pin arrangement, this connector offers optimal performance for various network applications. The use of shielded materials helps reduce electromagnetic interference, enhancing signal quality and ensuring data transmission integrity. The RJ45 connector is ideal for use in larger network systems where order and efficiency are important. The package includes 10 connectors, which come with strain relief boots and a comb for easy installation and handling.
- Shielded design to reduce electromagnetic interference
- Includes strain relief boot and comb for easy installation
- Optimized for network applications with high data integrity.
10. Hirose Electronic Conn Plug 20pos Male Circular
Number of contacts: 20
Mounting type: Cable mounting
Connector size: Miniature
Connection type: Soldering
Shell size: 9
Rated current: 1A
Contact gender: Male
Operating voltage: 30 V AC, 42 V DC
Connection type: Push-pull
Housing orientation: Straight
Series: HR25
Housing material: Zinc alloy
Contact material: Phosphor bronze
Miniature push-pull circular connector. Small size - high density. Easy insertion/extraction mating/disconnection. Various mounting positions, styles, and termination options. Metal housing. CE marking. Cable outer diameter: 5 mm (size 4, 6, 8) / 7 mm (size 9).
