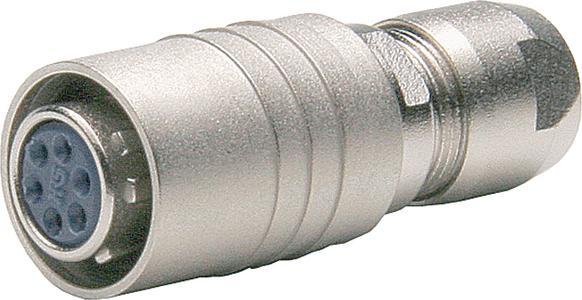

Hirose Electronic 6 way video push-pull cable mount socket

Ratings
BrandMore from Hirose Electronic
Delivered between Tue, 9.6. and Wed, 10.6.
More than 10 pieces in stock at third-party supplier
Supplied by
Free shipping starting at 50.–

Product details

Number of contacts: 6
Connector / Socket: Plug
Connection type: Soldering
Housing size: 7 mm
Rated current: 2 A
Contact type: Socket contact
Operating voltage: 100 V AC
Connection type: Push-Pull
Housing orientation: Straight
Series: HR10
Housing material: Zinc
Minimum operating temperature: -25 °C

The cable socket fits cable or panel plugs. The cable plug fits cable or panel sockets. The Push/Pull series HR10 is an extremely durable and reliable series of compact, subminiature connectors featuring a smooth Push-Pull locking mechanism for quick connection and disconnection. A positioning system with five alignment pins helps prevent incorrect mating. Contacts with solder cup.

Key specifications

Cable + connector type
Plug connectors
Plug type
DC connector

General information

Item number
10109930
Manufacturer
Hirose Electronic
Category
Cables + Plugs
Manufacturer No.
HR10-7P-6S(73)
Release date
13.11.2018

Material

Material group
Metal
Material
Zinc alloy brass

Cable + Connector Features

Cable + connector type
Plug connectors
Plug type
DC connector
Temperature
-25 - 85 °C
Max. temperature
85 °C
Min. temperature
-25 °C
mounting type
Cable installation

Voluntary climate contribution

CO₂ emissions
0.16 kg
Climate contribution
CHF 0.11

Scope of delivery

Items per sales unit
1 pcs.

Product dimensions

Length
10 cm
Width
5.50 cm
Height
1.10 cm
