Best selling Buttons + Switches from Busch-Jaeger
On this page you’ll find a ranking of the best Buttons + Switches from Busch-Jaeger. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.
1. Busch-Jaeger Busch-Dimmer insert flush-mounted 6523 U-102
The Busch-Dimmer insert flush-mounted 6523 U-102 is a universal rotary dimmer that is optimised for use with dimmable retrofit LED lamps. With a rated output of 2 to 100 watts, this dimmer offers a flexible solution for various lighting scenarios. It is equipped with a rotary actuator for easy handling and a soft detent that ensures smooth dimming of the light intensity. The dimmer is suitable for operation with conventional and electronic transformers and can be used with both incandescent and halogen lamps. The 2-wire connection technology enables installation without a neutral conductor, which simplifies installation. The dimmer is also short-circuit-proof and overload-proof, which provides additional safety. With the adjustable minimum brightness, users can adjust the lighting conditions to suit their requirements. Optimised for dimmable retrofit LED lamps. Low-noise thanks to the use of Mosfet transistors. Mixed load operation of LED and conventional light sources possible. Switchable between leading edge and trailing edge phase control. Adjustable minimum brightness.
2. Busch-Jaeger Busch-Jäger operating element 3-gang Busch-priOn® 6342-825-101
Busch-Jaeger operating element 3-gang 6342-825-101
Manufacturer: Busch-Jaeger
Designation: Operating element 3-gang glass black
Type: 6342-825-101
Bus system KNX: Yes
Bus system Powernet: Yes
Other bus systems: None
Mounting type: Flush-mounted
With theft/dismantling protection: Yes
Number of operating points: 3
Number of buttons: 3
With display: No
Material: Glass
Material quality: Other
Surface protection: Untreated
Surface finish: Glossy
Colour: Black
Protection class (IP): IP21
Min. depth of device box: 33 mm
Further details: Freely programmable multifunctional operating element for installation in the basic support 1-gang, 2-gang, and 3-gang. Supports KNX functions through an innovative colour concept (yellow for lighting, blue for blinds, orange for RTR, magenta for scene, and white for neutral/no function assignment) or standard lighting red/green. The enclosed symbol can be replaced by symbols for lighting, blinds, RTR, and scene. For setting and controlling the RTR functions and texts of the launch bar display RTR, IR, and proximity. ETS programming only from ETS 3.0f. Additional software PowerTool required.
Buttons + Switches
CHF159.19
Busch-Jaeger Busch-Jäger operating element 3-gang Busch-priOn® 6342-825-101
3. Busch-Jaeger SD/U12.63.11-825
Busch-Trevion® Displays 2.4, in format 63 for switch programs such as axcent, Solo, future. Freely programmable touch panel with a 2.4-inch IPS screen with a resolution of 240 x 240, enabling control and monitoring of the free@home or KNX system. Control, observe, and manage your entire installation on one device: switching, dimming, sliders, blinds, RGBW controls, step switches, scene switches, display elements, audio controls. The display includes a brightness and proximity sensor. Operation is supported by haptic feedback. The display features an integrated temperature controller (RTC) with a built-in temperature sensor. An optional remote sensor for temperature measurement can be connected to the rear input. An additional 24VDC power supply is required for operation.
KNX: Up to 12 control pages with up to 12 control elements can be created. A maximum of 1 to 4 touch surfaces is possible per page. 10 scene actuators, 10 logic functions, 10 presence simulations, and time programs, as well as 18 fault and alarm messages. The primary function allows direct operation of a function when touching the display. The rear input can alternatively be used as a binary input instead of the remote sensor.
free@home: Up to 16 control functions can be created on up to 4 pages. A maximum of 4 touch surfaces is possible per page. The scene function, logic functions, presence simulation, and time programs are provided by the system access point in free@home and are not additionally required on the display. Fault and alarm messages are displayed as pop-ups. The rear input can be used to connect a remote sensor.
4. Busch-Jaeger Changeover switch
Busch-Jaeger Switch 2000/6 UJ/05
Manufacturer: Busch-Jaeger
Description: Switch with drilling option for fan switch
Type: 2000/6 UJ/05
Switching type: Toggle switch
Operation type: Rocker/button
Composition: Basic element with central cover plate
Push button: no
Number of operating rockers: 1
Mounting type: Flush-mounted
Mounting method: Claw/screw fastening
With mounting plate: yes
Material: Plastic
Material quality: Thermoplastic
Halogen-free: yes
Antibacterial treatment: no
Surface protection: untreated
Surface finish: glossy
Color: other
Text field/labeling area: no
Lighting: no
Lighting function: other
Suitable for protection class (IP): IP20
Nominal voltage: 250 V
Rated current: 10 A
Switching current for fluorescent lamps: 10 AX
Feedback contact: no
Connection type: Plug terminal
Heater switch: no
Washing machine switch: no
Device width: 91 mm
Device height: 91 mm
Device depth: 32 mm
Installation depth: 25 mm
Min. depth of device box: 25 mm
Compatible with Apple HomeKit: no
Compatible with Google Assistant: no
Compatible with Amazon Alexa: no
IFTTT support available: no
Busch-Jaeger Switch 2000/6 UJ/05: additional details UP switch complete set. Consisting of switch insert, rocker, and cover frame. For installation in standard flush-mounted device boxes according to DIN 49073. Compatible with item numbers: 1722-281, 1723-281, 1724-281, and 1725-281.
5. Busch-Jaeger 2000/6 USK (2000/6USK)
The Busch-Jaeger rocker control switch 2000/6 USK is a versatile switch insert designed for on/off and toggle switching. With an integrated pilot light, it offers both control and orientation functions. The switch is suitable for flush mounting and is made from high-quality halogen-free duroplastic. The matte surface provides an appealing look, while the plug terminals allow for easy installation. The rocker control switch is rated for a nominal voltage of 250 V and a rated current of 10 A, making it a reliable choice for various applications. With a compact design and a installation depth of just 25 mm, it fits into standard device boxes. The switch is not compatible with smart home systems but is excellent for traditional installations.
- Integrated pilot light for control and orientation functions
- Suitable for on/off and toggle switching with N terminal
- Made from halogen-free duroplastic
- Easy installation with plug terminals
- Matte surface for an attractive design.
6. Busch-Jaeger Control switch 2-pin 2000/2UK 2000/2UK (1022-0-0656)
The Busch-Jaeger control switch 2-pole 2000/2UK is a high-quality rocker control switch designed for flush mounting. It provides a reliable way to control electrical devices and features an integrated pilot light that offers visual feedback on the operational status. The switch is made from durable thermoplastic, making it robust and long-lasting. With a rated voltage of 250 V and a rated current of 10 A, it is suitable for a variety of applications. The rear connection is made via a terminal block, allowing for easy installation. The switch is finished in a matte blue, blending harmoniously into various living and working environments. It is not only functional but also aesthetically pleasing, providing a practical solution for controlling lighting and other electrical devices.
- Integrated pilot light for visual feedback
- Rear connection with terminal block for easy installation
- Made from robust thermoplastic
- Suitable for flush mounting
- Rated current of 10 A and rated voltage of 250 V.
7. Busch-Jaeger Button symbol
For installation in rocker switches with an opening for a symbol. For rocker switch 2520-... For surface-mounted switch 2601/. SK.. For surface-mounted push button 2621...: Busch-balance® SI, Reflex SI, Busch-Duro 2000® AP: Reflex SI, Reflex SI Linear.
8. Busch-Jaeger Rocker switch insert 2400/5 US Flush-mounting boxes and inserts Inserts
The Busch-Jaeger 2400/5 US rocker switch insert is a high-quality product designed for use in flush-mounted installation boxes. This rocker switch allows for the series connection of electrical consumers and is suitable for loads up to 16A. Installation is carried out in standard flush-mounted device boxes according to DIN 49073, ensuring easy integration into existing installations. The insert is made of robust thermoplastic, promising durability and reliability. With a rear connection featuring a plug terminal and a side spring release, the installation and maintenance of the device are made easier. The rocker switch is part of a wide range of Busch-Jaeger switch programs, offering flexibility in the design of living and working spaces.
- Suitable for series connection of electrical consumers up to 16A
- Rear connection with plug terminal and side spring release
- Compatible with various Busch-Jaeger switch programs
- Installation in flush-mounted boxes according to DIN 49073 required
- Made from durable thermoplastic.
Buttons + Switches
CHF19.70
Busch-Jaeger Rocker switch insert 2400/5 US Flush-mounting boxes and inserts Inserts

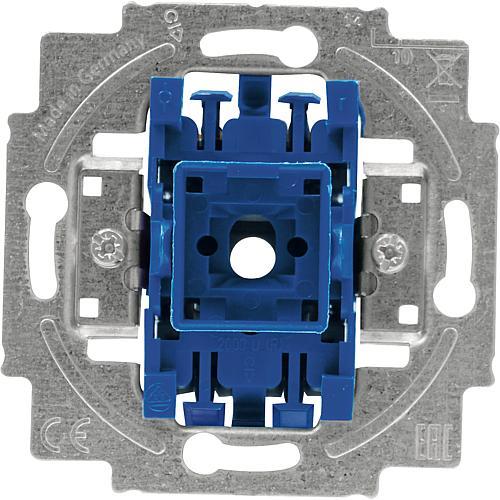

9. Busch-Jaeger Cross switch 2000/7US 2000/7US (1012-0-1093)
The Busch-Jaeger 2000/7 US cross switch is a high-quality rocker switch insert designed for use in cross circuits. With a rated voltage of 250 V and a rated current of 10 A, this switch is suitable for a variety of applications in electrical installations. The insert is designed for flush mounting and offers easy installation through plug terminals with a side spring release. The switch is made of duroplastic, making it robust and durable. The matte blue surface gives the product a modern and appealing design. The cross switch is not compatible with smart home systems but offers the option of optional lighting for orientation. With an IP20 protection rating, the switch is suitable for use in dry indoor environments.
- Cross switch for flush mounting
- Robust duroplastic construction
- Easy installation through plug terminals
- Optional lighting for orientation
- IP20 protection rating for dry interiors.
Buttons + Switches
−11%
CHF17.70 was CHF19.90
Busch-Jaeger Cross switch 2000/7US 2000/7US (1012-0-1093)

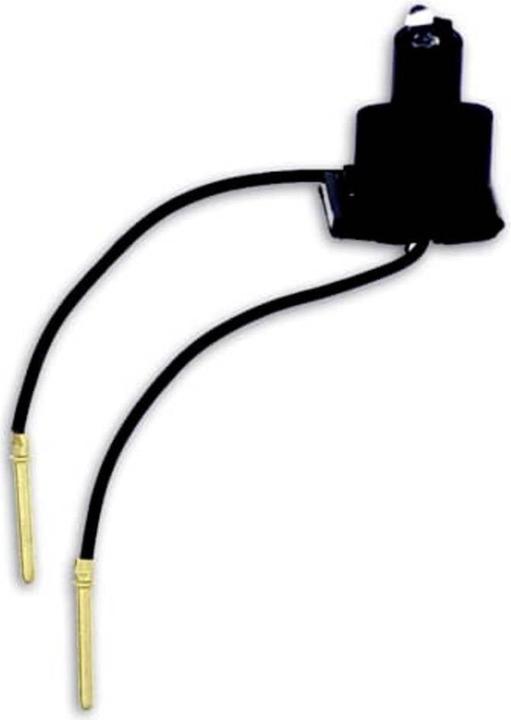

10. Busch-Jaeger Duro 2000 bulb with 8358 connection cable 24V 40mA
Busch-Jaeger incandescent lamp 8358
Manufacturer: Busch-Jaeger
Designation: Incandescent lamp 24V 40mA with cable
Type: 8358
Application: Switch/button
Illuminant: Glow lamp
With illuminant: Yes
Colour of illuminant: Orange
Socket: Other
Rated current: 0.04 A
Rated current consumption: 40 mA
Busch-Jaeger incandescent lamp 8358: further details
Suitable for surface-mounted inserts 2601/..., 2621/... for surface-mounted switches/buttons.
