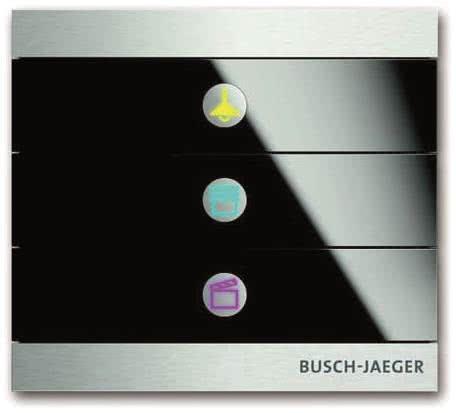

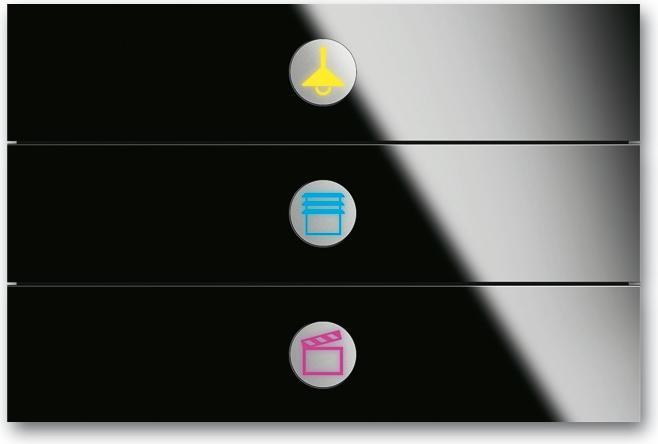

Busch-Jaeger Busch-Jäger operating element 3-gang Busch-priOn® 6342-825-101

Busch-Jaeger operating element 3-gang 6342-825-101

Manufacturer: Busch-Jaeger
Designation: Operating element 3-gang glass black
Type: 6342-825-101
Bus system KNX: Yes
Bus system Powernet: Yes
Other bus systems: None
Mounting type: Flush-mounted
With theft/dismantling protection: Yes
Number of operating points: 3
Number of buttons: 3
With display: No
Material: Glass
Material quality: Other
Surface protection: Untreated
Surface finish: Glossy
Colour: Black
Protection class (IP): IP21
Min. depth of device box: 33 mm

Further details: Freely programmable multifunctional operating element for installation in the basic support 1-gang, 2-gang, and 3-gang. Supports KNX functions through an innovative colour concept (yellow for lighting, blue for blinds, orange for RTR, magenta for scene, and white for neutral/no function assignment) or standard lighting red/green. The enclosed symbol can be replaced by symbols for lighting, blinds, RTR, and scene. For setting and controlling the RTR functions and texts of the launch bar display RTR, IR, and proximity. ETS programming only from ETS 3.0f. Additional software PowerTool required.
