Actuator
CHF106.78
Eaton Power Quality Smart Home xComfort radio switch actuator all-pole (240659)
Switch actuator
Best selling Actuators from Eaton
This page always stays fresh and updates automatically.
1. Eaton Power Quality Smart Home xComfort radio switch actuator all-pole (240659)
There is someone who is always there for you: who closes the shutters in the evening and retracts the awning in case of a storm warning. Who adjusts the heating to a comfortable temperature before you come home. Who skillfully sets the lighting, prevents electromagnetic pollution, and cuts off power to standby devices. The intelligent xComfort building automation system turns your home into a comfortable energy-saving building.
2. Eaton Analog actuator 0-10 VDC
The analog actuator receives a signal, switches a relay, and provides an output voltage of 0 to 10 VDC for devices such as mixers, heating systems, ventilation, dimmers, etc. It is powered via the mains. The device can be installed in a junction box, suspended ceiling, or directly in the devices to be controlled.
3. Eaton CSAU-01/04: UP-switching clock. pot.free / keym.
Eaton Switch Actuator Potential-Free CSAU-01/04
Manufacturer: Eaton
Description: Potential-free switch actuator 8A 230V AC
Type: CSAU-01/04
KNX Bus System: no
KNX Wireless Bus System: no
Wireless Bus System: yes
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: xComfort Wireless bidirectional: yes
Mounting Type: Flush-mounted
Width in Division Units: 3
Local/Manual Operation: yes
With LED Display: no
Max. Switching Power: 1840 W
Max. Switching Power LED: 0 W
Output Power: 1840 W
Suitable for C-Load: no
Max. Number of Switching Outputs: 1
Max. Switching Current: 8 A
Rated Current: 0 A
Rated Operating Voltage: 0 V
Different Phases Connectable: no
With Bus Coupling: yes
Bus Module Removable: yes
Min. Depth of Device Box: 26 mm
Modular Expansion Option: no
Protection Class (IP): IP20
The potential-free switch actuator with push-button function receives and switches devices such as doorbells. The special feature of this product is that in Basic Mode, only the push-button function is used. The output is switched on as long as the assigned button/sensor is pressed (function of a doorbell button). Even when resetting to the factory state (Reset) and reassigning a button/sensor in Basic Mode, only the push-button function is available. In Comfort Mode, all known and proven functions remain unchanged. Power is supplied via the mains. Other voltages besides the mains voltage can also be switched. The device is installed in a switch, junction, installation box, or directly in the lamp cover.
EAN: 4015081189106.
4. Eaton xComfort radio switching actuator, radio wall push-button CPAD-00/215
Pre-configured wireless switch package to extend a traditional switch with a second wireless switch. Controls all types of loads. Hybrid switching technology for long lifespan. Easy installation without major construction work. Wireless push button wherever you want. Compatible with universal 55 mm switch systems.
Actuator
CHF137.–
Eaton xComfort radio switching actuator, radio wall push-button CPAD-00/215
Switch actuator

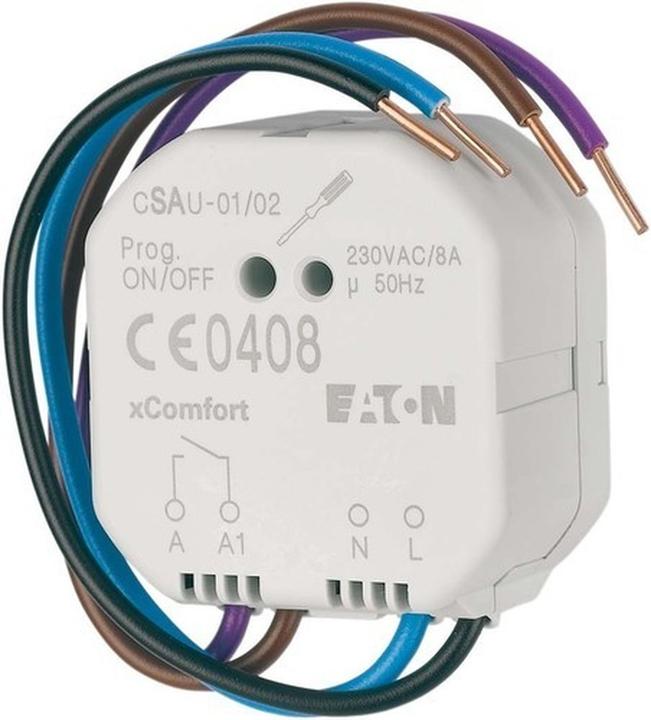

5. Eaton Flush-mounted switching actuator-potential-free
Eaton Wireless Switching Actuator 1f. CSAU-01/02
Manufacturer: Eaton
Designation: Wireless Switching Actuator 1f. potential-free
Type: CSAU-01/02
KNX Bus System: no
KNX Wireless Bus System: no
Wireless Bus System: yes
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: xComfort
Bidirectional Wireless: yes
Mounting Type: Flush-mounted
Width in Division Units: 3
Local/Manual Operation: no
With LED Display: no
Max. Switching Power: 1840 W
Max. Switching Power LED: 0 W
Output Power: 0 W
Suitable for C-Load: no
Max. Number of Switching Outputs: 1
Max. Switching Current: 8 A
Rated Current: 8 A
Rated Operating Voltage: 230 V
Different Phases Connectable: no
Power Consumption: 0.6 W
With Bus Coupling: no
Bus Module Removable: yes
Min. Depth of Device Box: 26 mm
Modular Expansion Option: no
Protection Class (IP): IP20
The "potential-free" switching actuator receives and switches various devices such as ventilation, heating, alarm systems, etc. The power supply is provided via the mains. Other voltages besides the mains voltage can also be switched. The device is installed in the switch, junction, installation box, or directly in the lamp cover.
6. Eaton Smart dimming actuator, R/L/C/LED, 0-500W, 182448
Intelligent dimmer actuator 0-500 W/230 VAC with local 230 VAC inputs. Suitable for dimming a variety of loads, including dimmable and non-dimmable LEDs (On/Off). Dims even the smallest LED load starting from 0 W! Easy selection or definition of a DIM profile for optimal dimming performance. Energy efficient. Short circuit, overload, and overheating protection with automatic recovery. The device can be installed in a junction box or directly in the ceiling.
7. Eaton Power Quality Smart Home xComfort wireless router with logic
Eaton Router CROU-00/01-SL
Manufacturer: Eaton
Description: Router with logic
Type: CROU-00/01-SL
KNX Bus System: no
KNX Radio Bus System: no
Radio Bus System: yes
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: xComfort
Mounting Type: Flush-mounted
Width in Division Units: 3
Number of Phases: 1
Nominal Voltage: 230 V
Protection Class (IP): IP20
Minimum Depth of Device Box: 18 mm
Eaton Router CROU-00/01-SL: additional details
This router with integrated logic functions can be used for small solutions. Up to 5 logic functions can be programmed via MRF. Each logic function can combine conditions and analog values to switch an actuator when the result of the logic operation is true.
EAN: 4015081695324.
8. Eaton Power Quality Smart Home xComfort radio blind actuator
Eaton UP Shutter Actuator CJAU-01/02
Manufacturer: Eaton
Designation: UP Shutter Actuator
Type: CJAU-01/02
KNX Bus System: No
KNX Radio Bus System: No
Radio Bus System: Yes
LON Bus System: No
Powernet Bus System: No
Other Bus Systems: xComfort Radio Bidirectional: Yes
Mounting Type: Flush-mounted
Width in Division Units: 3
With Bus Coupling: Yes
Bus Module Removable: Yes
Local/Manual Operation: Yes
With LED Display: No
Ohmic Switching Current: 6 A
Max. Switching Power: 1380 W
Max. Number of Shutter Outputs: 1
Switching Function: No
Type of Current: AC
Protection Class (IP): IP20
Min. Depth of Device Box: 26 mm
The shutter actuator receives and controls roller shutters and blind drives with 230V motors that have integrated limit switches. This shutter actuator also allows for two safety functions (e.g., safety position in case of wind and/or rain, anti-lockout protection - if the patio door is open, this roller shutter/blind must not close). Note: Multiple shading motors must not be connected in parallel to a shutter actuator without a separating relay. Power is supplied via the mains. The device is installed in switch or junction boxes. When used with inductive loads (e.g., fluorescent lamps), be sure to observe protective circuitry.
9. Eaton CSAU-01/01-10I: Flush-mounted switching actuator 10A
Eaton Switching Actuator with Input CSAU-01/01-10I
Manufacturer: Eaton
Designation: Switching actuator with input 10A, 2300W
Type: CSAU-01/01-10I
KNX Bus System: no
KNX Radio Bus System: no
Radio Bus System: yes
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: xComfort
Bidirectional Radio: yes
Mounting Type: Flush-mounted
Width in Division Units: 3
Local/Manual Operation: yes
With LED Display: yes
Number of Digital Inputs: 1
Max. Switching Power: 2300 W
Max. Switching Power LED: 0 W
Output Power: 2300 W
Suitable for C-Load: yes
Max. Number of Switching Outputs: 1
Max. Switching Current: 10 A
Rated Current: 10 A
Rated Operating Voltage: 230 V
Different Phases Connectable: no
With Bus Coupling: yes
Bus Module Removable: yes
Min. Depth of Device Box: 18 mm
Modular Expansion Option: no
Protection Class (IP): IP20
Eaton Switching Actuator with Input CSAU-01/01-10I: additional details
Switching actuator in a compact design 230VAC/10A with local 230VAC input. Easily used with existing wall switches and indicator lights in stairwells and hallways, direct light switching with motion sensors and twilight switches. Compact design for installation behind switches, push buttons, motion sensors, wall sockets, or in junction boxes. Suitable for high switching power to control a variety of loads such as lighting, ventilation, heating, etc. The local input can be assigned to other devices like a standard binary input device to send switching signals.
10. Eaton CSAU-01/01-10: Flush-mounted switching actuator 10A
The Eaton CSAU-01/01-10 UP switch actuator is a compact switching actuator designed for use in smart home systems. With an operating voltage of 230 volts and a maximum switching capacity of 2300 watts, this device is ideal for controlling lighting, ventilation, and heating. Its small form factor allows for easy installation behind wall switches, push buttons, or in junction boxes, enabling the actuator to be discreetly integrated into existing systems. The switch actuator is wireless and does not require a smart home hub, further simplifying installation and use. It is compatible with various control elements such as motion sensors and dusk switches, allowing for flexible and user-friendly applications. The IP20 protection class ensures that the switch actuator is suitable for use in dry indoor environments.
- Compact design for easy installation behind switches and buttons
- High switching capacity of up to 2300 watts
- Compatible with smart home systems and various control elements
- Wireless communication without the need for a smart home hub
- Suitable for controlling lighting, ventilation, and heating.
