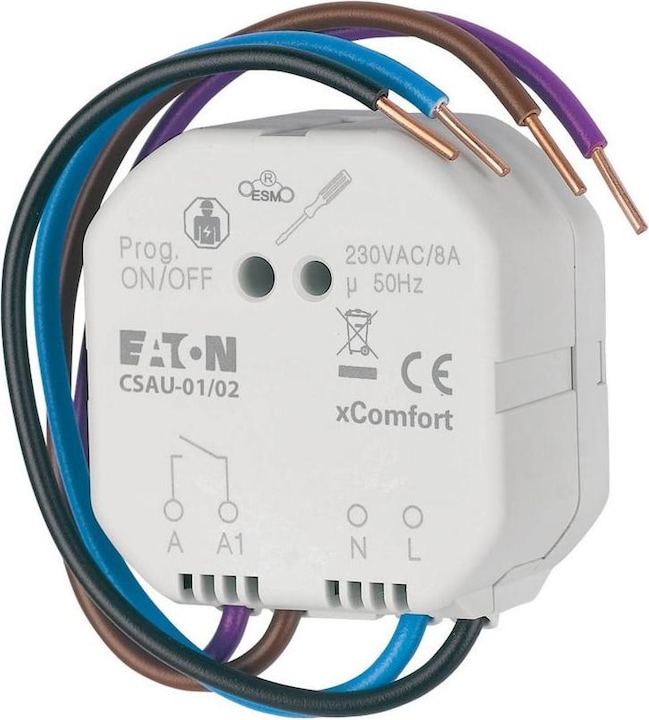

Eaton Flush-mounted switching actuator-potential-free

Eaton Wireless Switching Actuator 1f. CSAU-01/02

Manufacturer: Eaton
Designation: Wireless Switching Actuator 1f. potential-free
Type: CSAU-01/02
KNX Bus System: no
KNX Wireless Bus System: no
Wireless Bus System: yes
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: xComfort
Bidirectional Wireless: yes
Mounting Type: Flush-mounted
Width in Division Units: 3
Local/Manual Operation: no
With LED Display: no
Max. Switching Power: 1840 W
Max. Switching Power LED: 0 W
Output Power: 0 W
Suitable for C-Load: no
Max. Number of Switching Outputs: 1
Max. Switching Current: 8 A
Rated Current: 8 A
Rated Operating Voltage: 230 V
Different Phases Connectable: no
Power Consumption: 0.6 W
With Bus Coupling: no
Bus Module Removable: yes
Min. Depth of Device Box: 26 mm
Modular Expansion Option: no
Protection Class (IP): IP20

The "potential-free" switching actuator receives and switches various devices such as ventilation, heating, alarm systems, etc. The power supply is provided via the mains. Other voltages besides the mains voltage can also be switched. The device is installed in the switch, junction, installation box, or directly in the lamp cover.
