Access points
CHF120.–
Alfa Network TUBE-2HP F FULL PACKAGING - 802.11n outdoor AP / CPE, with standard PoE + APOE48V-1G
Best Alfa Network products in the Access points category
On this page you'll find a ranking of the best Alfa Network products in this category. To give you a quick overview, we've already ranked the most important information about the products for you.

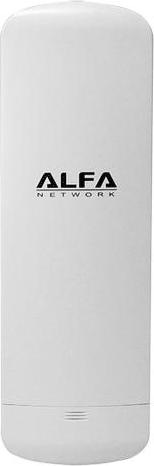

1. Alfa Network TUBE-2HP F FULL PACKAGING - 802.11n outdoor AP / CPE, with standard PoE + APOE48V-1G
The TUBE-2HP F FULL PACKAGING from Alfa Network is a powerful outdoor access point designed for a variety of outdoor applications. With support for the 802.11n standard, this device provides a reliable wireless connection with data rates of up to 150 Mbps. It can be used in both Access Point and Client Bridge modes, making it a flexible solution for different network architectures. The access point is IP68 certified, meaning it is dust-tight and waterproof, making it ideal for use in extreme weather conditions. The complete package includes not only the access point but also a PoE adapter and an AC cable, which facilitates installation. With an operating temperature range of -20°C to 65°C and a high tolerance for humidity, the TUBE-2HP F is suitable for a variety of environments and offers robust performance.
- Versatile operating modes: AP, Client Bridge, WDS Bridge, and more
- High security standards with WPA2-PSK and 802.1x authentication
- Power supply via PoE with standard 802.3at/af
- Sturdy construction with IP68 protection for outdoor use
- Expandable functionality through support for omni antennas.

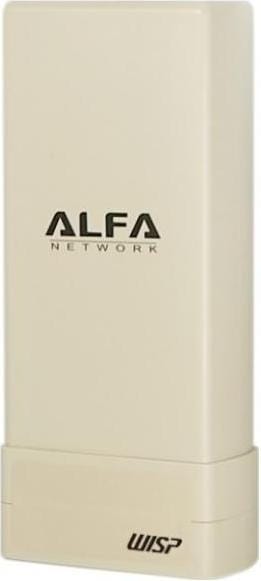

2. Alfa Network WISP-NSR - 11b/g/n Outdoor CPE, 2.4GHz
Alfa Network - WISP-NSR 11b/g/n Outdoor CPE
WISP-NSR is a low-cost 802.11n outdoor access point/customer premises equipment (AP/CPE) operating in the 2.4 GHz band and compliant with the IEEE 802.11b/g standard. It features a built-in 9 dBi high-gain panel antenna, making it suitable for both CPE and point-to-point (PTP) environments without the need for an external antenna. WISP-NSR supports passive Power over Ethernet (PoE) for quick and easy installation without environmental limitations.
Features
- High-speed data rates: Provides faster data rates of up to 150 Mbps and is compatible with legacy 802.11b/g equipment.
- Advanced robust security firewall: Includes Stateful Packet Inspection (SPI) to protect the internal host from hacker attacks. Wireless security features comprehensive options including WPA/WPA2 PSK.
- Feature-rich: Supports WDS, dual SSIDs, static routing, Quality of Service (QoS), and more.
Standard: IEEE 802.11b/g/n
Operation modes:
- Router
- Bridge
- Wireless ISP
Antenna: 9 dBi panel antenna
Frequency band: 2.400 ~ 2.484 GHz
Security:
- 64/128 bit WEP
- WPA (TKIP with IEEE 802.1x)
- WPA2 (AES with IEEE 802.1x)
- WPA Mixed
Data rates:
- 802.11n (40 MHz): up to 150 Mbps
- 802.11n (20 MHz): up to 72 Mbps
- 802.11g: 54, 48, 36, 24, 18, 12, 9, 6 Mbps
- 802.11b: 11, 5.5, 2, 1 Mbps
Sensitivity:
- 802.11b: -90 dBm
- 802.11g: -75 dBm
- 802.11n: -71 dBm
Interface:
- WAN x1
- LAN x1
TX power: 20 dBm
Power source: 12 V passive PoE
Operating temperature: -20°C ~ 60°C
Storage humidity: 10% ~ 90% (non-condensing)
Dimensions: 93 x 70 x 26 mm
Weight: 74 g.

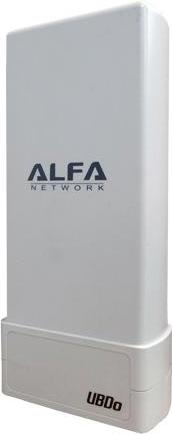

3. Alfa Network UBDO-UVT - 802.11n Outdoor USB CPE with Integrated Antenna
Alfa Network UBDo-uvt - 802.11n Long-Range Outdoor USB CPE with Integrated Antenna
The UBDo-uvt is a long-range 150 Mbps outdoor USB CPE. You can easily install it and enjoy the internet connection by simply plugging the USB connector into a notebook or desktop PC. With convenient utilities, you can easily scan available networks and save the preferred networks that you usually connect with.
Features:
- Complies with Universal Serial Bus Rev. 1.0, 1.1, and 2.0 specifications
- High-gain antenna for long range
- High-speed data transfer rate up to 150 Mbps by 802.11n
- Supports wireless data encryption with 64/128-bit WEP, WPA (TKIP with IEEE 802.1x), and AES functions
- Supports drivers for Windows 98se, Me, 2000, XP, Vista, 7, and 8, Apple Mac OSX 10.5x or newest version, and Linux
- Supports auto-installation and diagnostic utilities
Chipset: Realtek RTL8188EUS
Standards: IEEE 802.11b/g/n
Frequency: 2.4GHz
Antenna: Internal high-gain directional antenna
Data Rate:
- 802.11b: 1, 2, 5.5, 11 Mbps
- 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
- 802.11n: up to 150 Mbps
Power source and voltage: USB 5V
Sensitivity:
- 802.11b: -96dB
- 802.11g: -91dB
- 802.11n HT20: -91dB
- 802.11n HT40: -87dB
Features: Easy setup, firewall, wireless access scheduling, output power adjustment, website blocking, access control, QoS, IPv4, IPv6
Security: WEP 64/128, WPA, WPA2, 802.1x
Supported OS: Windows XP, Windows 2000, Vista, Windows 7, Windows 8/8.1, Linux 2.6 or up, Mac OSX 10.5 and up
Dimensions: 265 x 115 x 66 mm
Package Content: UBDo-uvt, stainless pole mount clamp, 5M USB cable, CD, QIG.
4. Alfa Network TUBE-UAC2 - Dual-band 2.4/5 GHz IEEE 802.11n/ac high-speed outdoor USB CPE
The TUBE-UAC2 from Alfa Network is a powerful dual-band access point designed for outdoor use. Supporting IEEE 802.11n/ac standards, this device offers both 2.4 GHz and 5 GHz frequencies to ensure high data transfer rates and stable connections. The TUBE-UAC2 utilizes the MediaTek MT7610U chipset, which provides broad compatibility with various operating systems such as Windows and Linux. Its robust construction and ability to withstand extreme temperatures ranging from -40°C to 70°C make it ideal for demanding environments. With a maximum power consumption of 5 V/600 mA and a compact design, the TUBE-UAC2 is both efficient and user-friendly. The integrated security protocols ensure that your data is protected, while the LED indicators allow for easy monitoring of the operational status.
- Dual-band support for 2.4 GHz and 5 GHz frequencies
- Compatible with Windows and Linux operating systems
- Robust construction for outdoor use
- High data transfer rates of up to 433 Mbit/s
- Integrated security protocols such as WPA2 and WPS.
Access points
CHF62.90
Alfa Network TUBE-UAC2 - Dual-band 2.4/5 GHz IEEE 802.11n/ac high-speed outdoor USB CPE

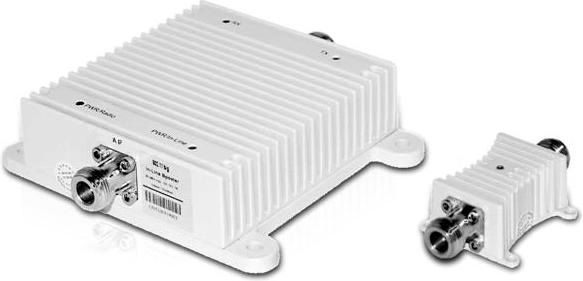

5. Alfa Network APAG05-2 - 2.4 GHz 2000 mW Outdoor Booster
Alfa APAG05-2 - Wi-Fi Signal Outdoor Booster
The APAG05-2 signal amplifier is a highly efficient and compact unit designed to increase the power and range of 2.4 GHz wireless devices. This includes Bluetooth, P2P, P2MP, 802.11b, 802.11b+, 802.11g, and 802.11b+g access points as well as WLAN routers.
The APAG05-2 expands the signal range to achieve greater coverage of the deployed wireless devices under certain conditions. This eliminates the need for an additional router or access point with extra data lines, power outlets, signal interference, and setup headaches.
The APAG05-2 is a quick and easy way to extend your signal range in any environment. Alternative antennas (e.g., for directional radio) can be easily attached via the N connector on the booster.
Features:
- High-speed power gain controller
- High gain and low noise
- Power supply via DC injector
- Low power consumption
- Low heat generation
- Lightweight
Applications:
- WLAN 802.11b, 802.11b+
- WLAN 802.11g
- WLAN 802.11n
- Bluetooth
- Digital Spread Spectrum over the ISM band
Absolute limit data:
- Supply voltage: 15 V
- Rx input power: -10 dBm
- Tx input power: +23 dBm
- Operating temperature: -10°C to +50°C
- Storage temperature: -40°C to +90°C
Model: APAG05-2
Frequency band: 2.4 to 2.5 GHz
Signal type: OFDM and DSSS
Switching time: Rx max. input power: -10 dBm
Rx power gain: 23 dB max.
Tx input power: 5 to 20 dBm
Supply voltage: DC 12 V / 1 A
Tx linear output power: 2 W (at) 11b
RF connector type: N female
Operating temperature: -10°C to +40°C
Storage temperature: -40°C to +90°C
Connections: N-standard
Dimensions of the booster (including connectors and mounting):
- Height: 3.7 cm
- Length: 12 cm
- Width: 14 cm
Dimensions of the injector (including connectors and mounting):
- Height: 8 cm
- Length: 4.5 cm
- Width: 2.5 cm
Note:
According to the regulations applicable in Germany, the effective isotropic radiated power (EIRP) of a WLAN device must not exceed 20 dBm (100 mW).
6. Alfa Network G2N - Long-Range 802.11n Outdoor WISP AP/CPE
The Alfa G2N is a powerful 802.11n access point specifically designed for outdoor use. With a high range and data rates of up to 150 MBit/s, this device is ideal for providing wireless internet in expansive areas. The G2N supports various operating modes, including Gateway, Bridge, and WISP, making it a flexible solution for different network needs. The integrated 14 dBi antenna ensures improved signal strength and quality, while the adjustable RF output power allows for customization to specific requirements. The access point is also equipped with an RJ45 PoE LAN port, simplifying installation and eliminating the need for a separate power supply. The robust, UV-protected plastic housing ensures a long lifespan, even under challenging weather conditions.
- Supports multiple operating modes: Gateway, Bridge, and WISP
- High sensitivity with -96 dBm at 802.11b
- Adjustable RF output power for flexible use
- Security through WPA/WPA2 encryption and 802.1x authentication
- Robust, UV-protected housing for outdoor use.
7. Alfa Network UBDO-N8 - 802.11n Long-Range Outdoor USB AP/CPE
Alfa UBDo-n8 - 802.11n Long-Range Outdoor USB AP/CPE
The UBDo-n8 is a long-range wireless 802.11n outdoor USB AP/CPE featuring an 8 m USB cable. It allows users to create IEEE 802.11n wireless networks with speeds of up to 150 Mbps in the 2.4 GHz frequency. Installation is simple; just plug the USB into your notebook or desktop to enjoy an internet connection. The UBDo-n8 also includes a convenient utility for scanning available networks and saving preferred networks for easy access. Security encryption can be configured through this utility.
- Complies with Universal Serial Bus Rev. 1.0, 1.1, and 2.0 specifications
- High-power 2000 mW with integrated 12 dBi antenna for long-range distance
- High-speed data transfer rate of up to 150 Mbps at 802.11n
- Dynamic data rate scaling at 1, 2, 5.5, and 11 Mbps for 802.11b and 6, 9, 12, 18, 24, 36, 48, and 54 Mbps for 802.11g
- Supports wireless data encryption with 64/128-bit WEP, WPA (TKIP with IEEE 802.1x), and AES functions
- Compatible with Windows XP, Vista, Windows 7, Mac OS X, and Linux
- Supports auto-installation and diagnostic utilities
- Standards: IEEE 802.11b/g/n; USB v1.0/1.1/2.0
- USB cable length: 8 m
- Data rate: IEEE 802.11n 150 Mbps; IEEE 802.11g 54 Mbps; IEEE 802.11b 11 Mbps
- Output power: 32 dBm +/- 2 dBm
- Receiver sensitivity: IEEE 802.11n -73 dBm (at HT20), -66 dBm (at HT40); IEEE 802.11g -76 dBm (at 54 Mbps); IEEE 802.11b -92 dBm (at 11 Mbps)
- Antenna connector: N type female connector
- Frequency range: US, Canada 2.412 ~ 2.462 GHz (CH1 ~ CH11); EU 2.412 ~ 2.472 GHz (CH1 ~ CH13); Japan 2.412 ~ 2.484 GHz (CH1 ~ CH14)
- Security: 64/128-bit WEP encryption, WPA, WPA2, TKIP, AES
- Supported OS: Windows XP/2000/Vista, Windows 7, Linux, Mac
- Operating voltage: DC 5 V +/- 5%.
8. Alfa Network N5C - 802.11a/n Outdoor WLAN/AP 5 GHz, 2x RP-SMA Female
Alfa Network N5C 802.11a/n Long-Range Outdoor WLAN/AP Router 5 GHz, 2x RP-SMA Connector
(AP/Client/Router/WISP/Repeater)
The N5C is a cost-effective 802.11a/n outdoor router AP/CPE that operates in the 5 GHz band. The N5C is also compatible with the IEEE 802.11a standard.
The two external 2x RP-SMA (connector) ports allow for use with all types of applications and antennas. The N5C supports passive PoE and enables easy installation and setup through its intuitive software and LEDs on the exterior. The router is weather-resistant and suitable for outdoor use.
Included in the package:
N5C device
Installation manual
PoE adapter x1
Plastic strips x2
Model: N5C
CPU: Atheros AR7240
Flash: 8 MB
RAM: 32 MB
Interfaces: 2x RJ45 and 1x Reset
Antenna: 2x external RP-SMA (connector) ports
Output Power (dBm)
802.11a
6 Mbps, 29 +/- 2
9 Mbps, 29 +/- 2
12 Mbps, 29 +/- 2
18 Mbps, 29 +/- 2
24 Mbps, 29 +/- 2
36 Mbps, 27 +/- 2
48 Mbps, 25 +/- 2
54 Mbps, 24 +/- 2
802.11n
MCS0, 29 +/- 2
MCS3, 29 +/- 2
MCS8, 29 +/- 2
MCS9, 29 +/- 2
MCS12, 29 +/- 2
MCS15, 29 +/- 2
Sensitivity (dB)
802.11a
6 Mbps, -92
9 Mbps, -89
12 Mbps, -86
18 Mbps, -83
24 Mbps, -81
36 Mbps, -78
48 Mbps, -75
54 Mbps, -73
802.11n
MCS0, -94
MCS3, -87
MCS8, -93
MCS9, -91
MCS12, -82
MCS15, -73
Operating Modes
AP
Client
WISP
WDS Bridge
Software
Site Survey
Bandwidth Control
SNMP v1/v2 Support
Adjustable Output Power
Distance Adjustment
Radius (802.1x)
Mounting
Pole Mount (Standard)
Adjustable Mounting Angle (Optional)
Dimensions: 27.5 x 9.3 x 4.5 cm
Temperature:
Operating: -30°C to 75°C
Storage: -40°C to 80°C
Humidity:
Operating: 5 to 95%
PoE: 12 to 24 V depending on cable length
This item is subject to GPL v2.
Note: Operate the device in Germany only in the "ETSI" zone! According to the regulations applicable in Germany, the effective isotropic radiated power (EIRP) of a WLAN device must not exceed 20 dBm...
9. Alfa Network UBDO-NT8 - 802.11b/g/n Super Long-Range Outdoor USB Radio with 12 dBi Antenna
Alfa UBDo-nt8 - 802.11b/g/n Super Long-Range Outdoor USB Radio with 12 dBi Antenna
The UBDo-nt8 is a high-range wireless 802.11n USB CPE designed for outdoor use. It allows users to set up a wireless IEEE 802.11n network with 150 Mbps at a frequency of 2.4 GHz, which is also compatible with wireless IEEE 802.11g and 802.11b devices at 54 Mbps and 11 Mbps, respectively. The internet connection can be easily installed and enjoyed by connecting the USB cable to a notebook or desktop. The UBDo-nt8 also includes a convenient utility for scanning available networks and saving preferred networks that users typically connect to. Security encryption can also be configured through this utility.
- Model: UBDo-nt8
- Standards: IEEE 802.11n/b/g; USB v1.0/1.1/2.0
- USB Cable Length: 8 m
- Data Rates: IEEE 802.11n 150 Mbps; IEEE 802.11g 54 Mbps; IEEE 802.11b 11 Mbps
- Receiver Sensitivity: IEEE 802.11n: -73 dBm at HT20; IEEE 802.11g: -76 dBm at 54 Mbps; IEEE 802.11b: -92 dBm at 11 Mbps
- Antenna: High-quality 12 dBi 2.4 GHz panel antenna
- Frequency Range: USA, Canada: 2.412 ~ 2.462 GHz (CH1 ~ CH11); EU: 2.412 ~ 2.472 GHz (CH1 ~ CH13); Japan: 2.412 ~ 2.4484 GHz (CH1 ~ CH14)
- Security: 64/128-bit WEP encryption, WPA, WPA2, TKIP, AES
- Supported Operating Systems: Windows XP/2000/Vista, Windows 7, Linux, Mac
- Operating Voltage: DC 5 V +/- 5
- Temperature: Operating: 0°C ~ +50°C; Storage: -10°C ~ +65°C.
Access points
CHF41.70
Alfa Network UBDO-NT8 - 802.11b/g/n Super Long-Range Outdoor USB Radio with 12 dBi Antenna
54 Mbit/s
