Alfa Network N5C - 802.11a/n Outdoor WLAN/AP 5 GHz, 2x RP-SMA Female

Alfa Network N5C 802.11a/n Long-Range Outdoor WLAN/AP Router 5 GHz, 2x RP-SMA Connector

(AP/Client/Router/WISP/Repeater)

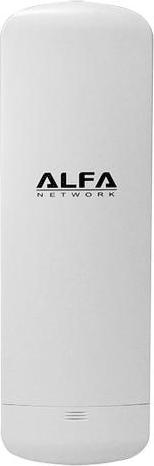

The N5C is a cost-effective 802.11a/n outdoor router AP/CPE that operates in the 5 GHz band. The N5C is also compatible with the IEEE 802.11a standard.

The two external 2x RP-SMA (connector) ports allow for use with all types of applications and antennas. The N5C supports passive PoE and enables easy installation and setup through its intuitive software and LEDs on the exterior. The router is weather-resistant and suitable for outdoor use.

Included in the package:

N5C device
Installation manual
PoE adapter x1
Plastic strips x2

Model: N5C
CPU: Atheros AR7240
Flash: 8 MB
RAM: 32 MB
Interfaces: 2x RJ45 and 1x Reset
Antenna: 2x external RP-SMA (connector) ports

Output Power (dBm)
802.11a
6 Mbps, 29 +/- 2
9 Mbps, 29 +/- 2
12 Mbps, 29 +/- 2
18 Mbps, 29 +/- 2
24 Mbps, 29 +/- 2
36 Mbps, 27 +/- 2
48 Mbps, 25 +/- 2
54 Mbps, 24 +/- 2

802.11n
MCS0, 29 +/- 2
MCS3, 29 +/- 2
MCS8, 29 +/- 2
MCS9, 29 +/- 2
MCS12, 29 +/- 2
MCS15, 29 +/- 2

Sensitivity (dB)
802.11a
6 Mbps, -92
9 Mbps, -89
12 Mbps, -86
18 Mbps, -83
24 Mbps, -81
36 Mbps, -78
48 Mbps, -75
54 Mbps, -73

802.11n
MCS0, -94
MCS3, -87
MCS8, -93
MCS9, -91
MCS12, -82
MCS15, -73

Operating Modes
AP
Client
WISP
WDS Bridge

Software
Site Survey
Bandwidth Control
SNMP v1/v2 Support
Adjustable Output Power
Distance Adjustment
Radius (802.1x)

Mounting
Pole Mount (Standard)
Adjustable Mounting Angle (Optional)

Dimensions: 27.5 x 9.3 x 4.5 cm
Temperature:
Operating: -30°C to 75°C
Storage: -40°C to 80°C
Humidity:
Operating: 5 to 95%
PoE: 12 to 24 V depending on cable length

This item is subject to GPL v2.

Note: Operate the device in Germany only in the "ETSI" zone! According to the regulations applicable in Germany, the effective isotropic radiated power (EIRP) of a WLAN device must not exceed 20 dBm...
