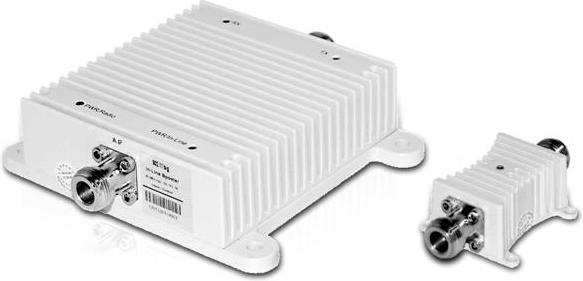

Alfa Network APAG05-2 - 2.4 GHz 2000 mW Outdoor Booster

Alfa APAG05-2 - Wi-Fi Signal Outdoor Booster

The APAG05-2 signal amplifier is a highly efficient and compact unit designed to increase the power and range of 2.4 GHz wireless devices. This includes Bluetooth, P2P, P2MP, 802.11b, 802.11b+, 802.11g, and 802.11b+g access points as well as WLAN routers.

The APAG05-2 expands the signal range to achieve greater coverage of the deployed wireless devices under certain conditions. This eliminates the need for an additional router or access point with extra data lines, power outlets, signal interference, and setup headaches.

The APAG05-2 is a quick and easy way to extend your signal range in any environment. Alternative antennas (e.g., for directional radio) can be easily attached via the N connector on the booster.

Features:

• High-speed power gain controller
• High gain and low noise

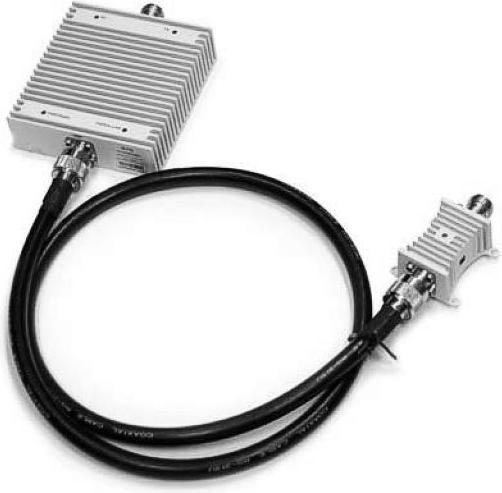

• Power supply via DC injector
• Low power consumption
• Low heat generation
• Lightweight

Applications:

• WLAN 802.11b, 802.11b+
• WLAN 802.11g
• WLAN 802.11n
• Bluetooth
• Digital Spread Spectrum over the ISM band

Absolute limit data:

• Supply voltage: 15 V
• Rx input power: -10 dBm
• Tx input power: +23 dBm
• Operating temperature: -10°C to +50°C
• Storage temperature: -40°C to +90°C

Model: APAG05-2
Frequency band: 2.4 to 2.5 GHz
Signal type: OFDM and DSSS
Switching time: Rx max. input power: -10 dBm
Rx power gain: 23 dB max.
Tx input power: 5 to 20 dBm
Supply voltage: DC 12 V / 1 A
Tx linear output power: 2 W (at) 11b
RF connector type: N female
Operating temperature: -10°C to +40°C
Storage temperature: -40°C to +90°C
Connections: N-standard

Dimensions of the booster (including connectors and mounting):

• Height: 3.7 cm
• Length: 12 cm
• Width: 14 cm

Dimensions of the injector (including connectors and mounting):

• Height: 8 cm
• Length: 4.5 cm
• Width: 2.5 cm

Note:
According to the regulations applicable in Germany, the effective isotropic radiated power (EIRP) of a WLAN device must not exceed 20 dBm (100 mW).
