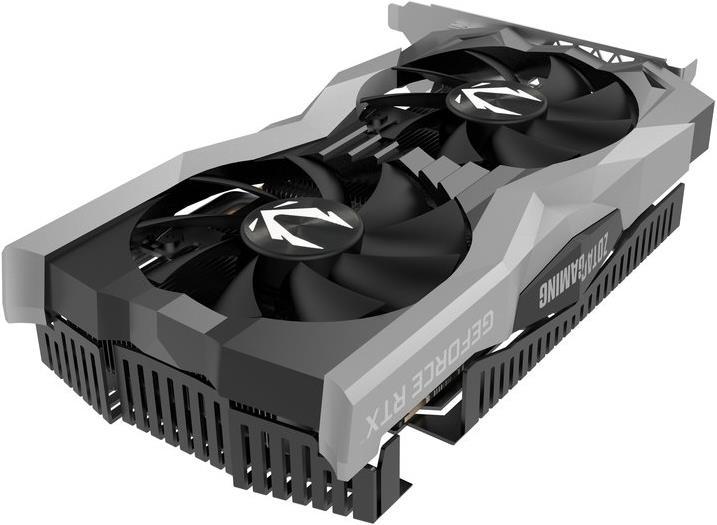

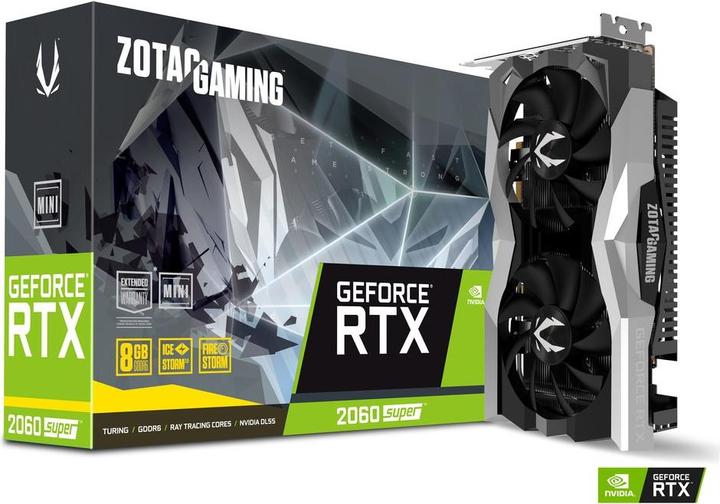

Equipped with a TU106 graphics chip, the graphics card enables real-time ray tracing for stunning light and shadow effects. The Turing GPU architecture, combined with a 12nm manufacturing process, also allows for particularly efficient operation of the graphics card. This super model from the GeForce RTX 2060 series is now equipped with 8 GB of video memory with GDDR6 specification. Additionally, both the base and boost clock speeds have been increased, and the shader units (CUDA cores) have been raised from 1,920 to 2,176.
Length | 20.90 cm |
Number of shaders | 2176 x |
Graphics card model | GeForce RTX 2060 Super |
Video memory clock | 14 GHz |
Max. connected monitors | 4 x |
Max. Video resolution | 4096 x 2160 pixels |
Power consumption | 175 W |
Item number | 11479027 |
Manufacturer | Zotac |
Category | Graphics card |
Manufacturer no. | ZT-T20610E-10M |
Release date | 16.7.2019 |
Max. connected monitors | 4 x |
PCI Express version | PCIe 3.0 |
Max. Video resolution | 4096 x 2160 pixels |
Expansion card form factor | 2 slots |
LED colour | without LED |
Graphics chip (GPU) | nVidia GeForce |
Graphics card model | GeForce RTX 2060 Super |
Clock frequency | 1470 MHz |
Boost frequency | 1650 MHz |
Number of shaders | 2176 x |
Video memory type | GDDR6 |
Storage capacity | 8 GB |
Video memory clock | 14 GHz |
Memory Interface | 256 bits |
Memory Bandwidth | 448 GB/s |
Graphics card cooling system | Active cooler |
Number of fans | 2 x |
DirectX version | 12 |
OpenGL version | 4.50 |

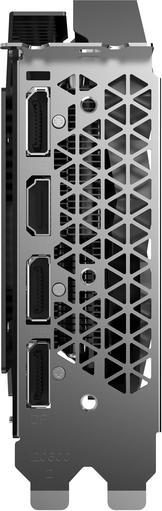

Video connections | DisplayPort (3x), HDMI (1x) |
HDMI version | 2.0 |
DisplayPort version | 1.4 |
Power consumption | 175 W |
Min. recommended system performance | 550 W |
Power connectors | 6-pin PCI-E, 8-pin PCI-E |
CO₂-Emission | |
Climate contribution |
Length | 20.90 cm |
Width | 4.10 cm |
Height | 11.90 cm |
Length | 28.30 cm |
Width | 21.80 cm |
Height | 8.40 cm |
Weight | 1.11 kg |
