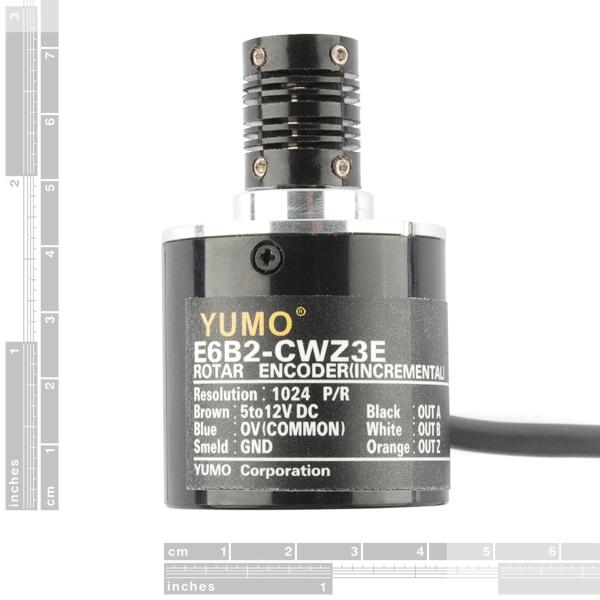

Yumo Rotary Encoder 1024 P/R (Quadrature)

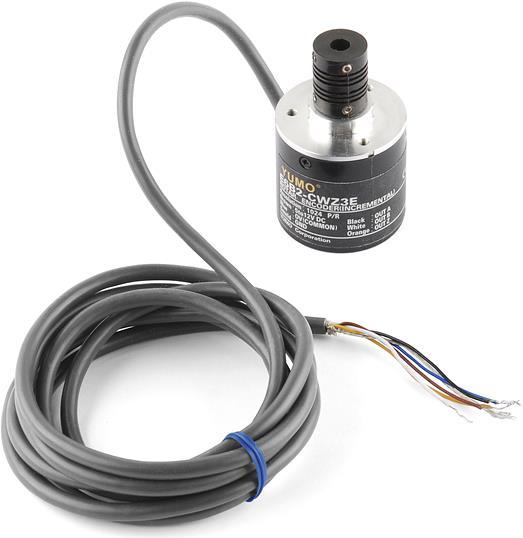

The Yumo Rotary Encoder 1024 P/R is a high-precision quadrature rotary encoder that offers a resolution of 1024 pulses per revolution. This device is ideal for applications where precise determination of rotation direction and distance is required. The encoder outputs a Gray code signal, which can be easily evaluated with a microprocessor. With a maximum rotational speed of 6000 revolutions per minute, this encoder is suitable for a variety of applications in electrical engineering. The input voltage can range from 5 to 12 VDC, making it flexible for different systems. The encoder comes with a 50 cm long cable and has a shaft diameter of 6 mm, facilitating integration into existing systems.

• Maximum rotational speed of 6000 RPM
• Input voltage of 5 to 12 VDC
• Radial load up to 5N
• Axial load up to 3N
• Outputs Gray code for easy microprocessor evaluation.
