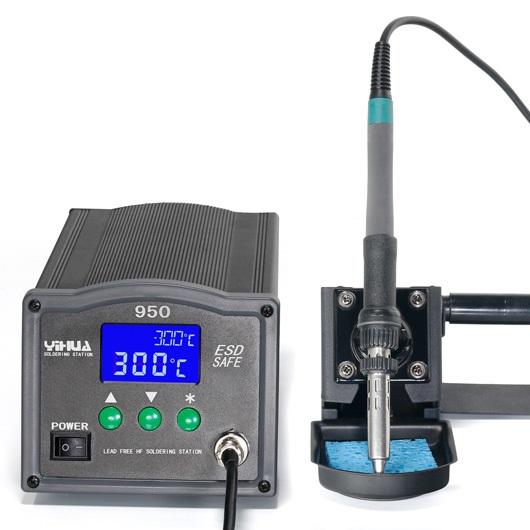

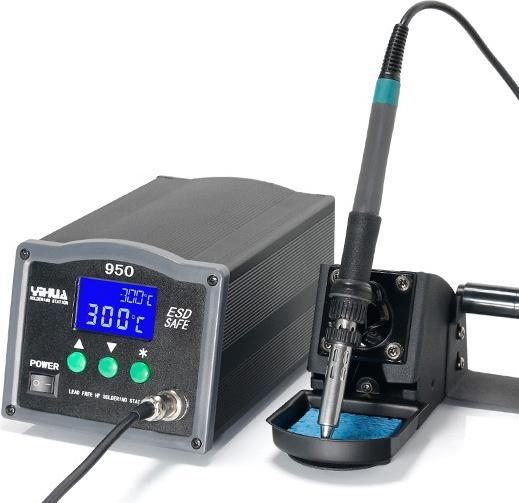

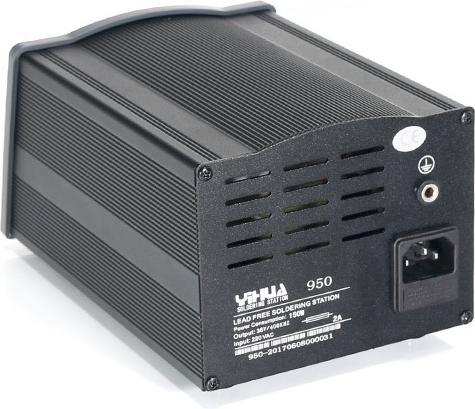

Yihua 950 150W Industrial High Frequency Soldering Station

Ratings
BrandMore from Yihua
Delivered Wed, 8.4.
Only 4 pieces in stock at third-party supplier
Supplied by
free shipping

Product details

This precision soldering station with 150W power is perfect if you want to do a lot of soldering. The heat is generated directly in the soldering tip by a high-frequency eddy current heating. This ensures a fast heat-up time.

Recommended accessories:
950-T-0.8C YiHUA high-frequency soldering tip
950-T-3.2D YiHUA high-frequency soldering tip
950-T-2.4D YiHUA high-frequency soldering tip
950-T-2C YiHUA High Frequency Soldering Tip
100g Solder lead free 0.8mm Sn96.5 Ag3 Cu0.5
Engineer SWF-08 Solder 14g lead free 0.8mm Sn96.5 Ag3 Cu0.5
Engineer SS-02 Desoldering suction pump
Engineer SWU-03 Desoldering wire 1.9mm / 1.5m with flux

Features
150W power
High temperature range adjustable 50-480°C
Microprocessor controlled for precise temperature control from +- 1°C static.
High quality high frequency eddy current heating for fast temperature control.
The soldering tip is heated directly for better temperature control
Large LCD display with backlight and very good contrast.
Automatic sleep mode and automatic power off function (optional)
Temperature calibration possible
Password protected temperature lock function, easy to manage and effective to secure the production process.
Integrated buzzer for warning signals
ESD Save
Sturdy metal housing

Technical details:
Manufacturer: Yihua
Model: Yihua 950
Operating voltage: AC 220V±10% 50Hz
Output power: <150W
Peak earth impedance: <2ohm
Peak earth voltage: <2mV
Ambient condition: 0-40°C relative humidity < 80%
Temperature range: 50-480°C
Metal soldering iron holder incl. soldering sponge
Soldering iron cable length: 1.1m
Soldering iron is made of heat-resistant material
Dimension: 200 x 126 x 98mm
Weight: 4.6Kg

Scope of delivery:
1x Yihua 950 150W Industrial High Frequency Soldering Station.
1x Soldering iron holder (with cleaning sponge)
1x Soldering iron incl. soldering tip.

Key specifications

Soldering device type
ward
Max. temperature
480 °C
Operating voltage
220 V
Nominal power
150 W

General information

Item number
37856543
Manufacturer
Yihua
Category
Soldering irons
Release date
4.9.2023

Soldering iron properties

Soldering device type
ward
Max. temperature
480 °C

Power supply

Operating voltage
220 V
Nominal power
150 W

Origin

Country of origin
China

Voluntary climate contribution

CO₂ emissions
29.26 kg
Climate contribution
CHF 0.70

Scope of delivery

Scope of delivery
1x soldering iron holder (with cleaning sponge), 1x soldering iron incl. soldering tip, 1x Yihua 950 150W industrial high-frequency soldering station

Product dimensions

Length
20 cm
Width
12.60 cm
Height
9.80 cm
Weight
4.60 kg

30-day right of return
24 Months Warranty (Bring-in)
