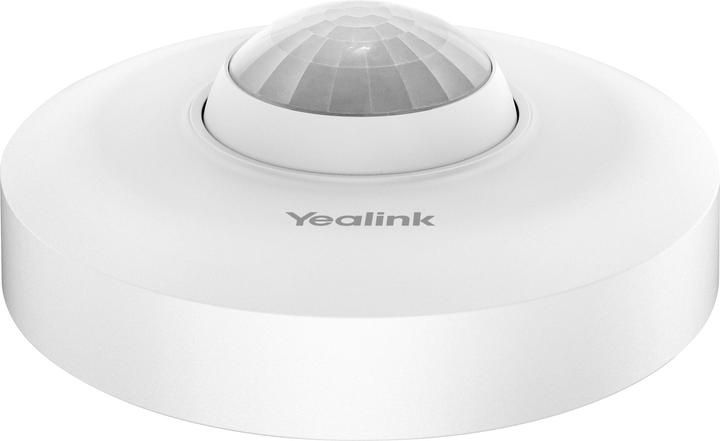

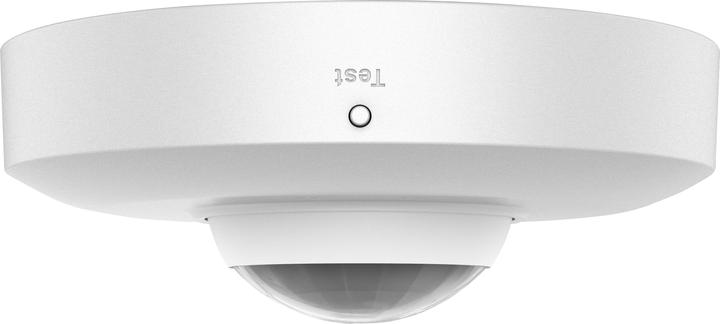

Yealink Room Sensor

The Yealink RoomSensor is a multifunctional room sensor for businesses that integrates functions for occupancy detection, temperature, humidity, and light. It connects to the Yealink RoomPanel via the BLE protocol and offers features such as automatic room release and automatic check-in. The passive infrared technology ensures excellent and precise motion detection. The wireless application and adjustable angle design allow for easy installation on all types of surfaces and can easily cover the entire meeting room. It supports real-time monitoring of device operation and provides centralized management through the Yealink WorkSpace platform.

Highlights

• Multifunctional room sensor with passive infrared technology
• Wireless and compact design with magnetic mounting
• Adjustable angle makes deployment even easier
• Detects room temperature and can automatically activate the air conditioning
• Room humidity detection ensures a pleasant environmental adjustment
• Room lighting detection allows for automatic adjustment in conjunction with dimmer or switch settings
• Device management via cloud server
• Bluetooth BLE connects directly to the RoomPanel

Delivery Contents

• Yealink RoomSensor

Technical Data
Basic Features

• Color: White
• Width: 95.3 mm
• Height: 36 mm
• Length/Depth: 95.3 mm
• Weight: 0.092 kg

Specifications

• Mounting Location: Ceiling, Wall
• Mounting Type: Magnetic

Specifications

• Protection Class: IP20 - Protection against foreign objects larger than 12.5 mm/not waterproof

Power Supply

• Power Supply: Battery
• Number of Batteries: 1
• Battery Type: Lithium Battery CR123
• Battery Installed: Built into the device
• Battery Technology: Li - Lithium
• Battery Voltage: 3 V
• Battery Life: 5 year(s)

Data Transmission

• Wireless Standard: Bluetooth.
