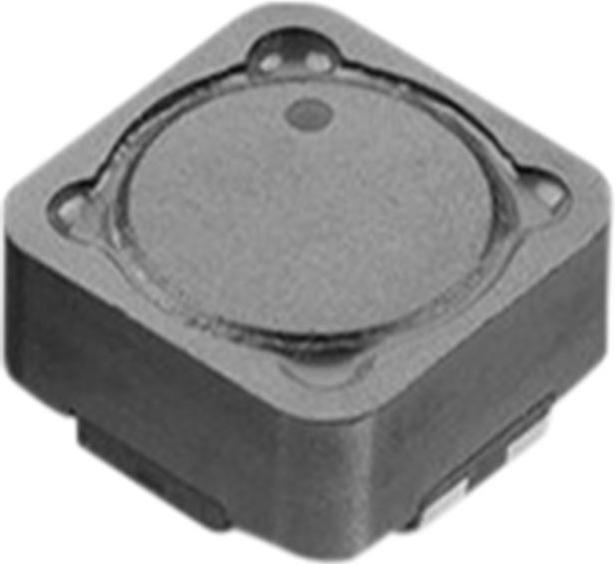

Würth Filter-SMD, 1.2kOhm @ 100kHz

The filter SMD type 744212100 is a highly advanced passive component specifically designed for applications in signal processing and noise suppression. With an impedance of 1.2 kΩ at 100 kHz, this current-compensated line filter provides effective attenuation of disturbances in electronic circuits. The filter is designed for a wide temperature range of -40 °C to 105 °C, making it suitable for various environments. With a maximum DC voltage of 80 V and a rated current of 300 mA, it is robust enough for demanding applications. The compact design, with a width of 3.6 mm, a height of 1.65 mm, and a length of 6.5 mm, allows for easy integration into modern electronic designs. The filter is supplied in a convenient tape and reel packaging, which facilitates handling and assembly.

• Temperature range of -40 °C to 105 °C
• Impedance of 1.2 kΩ at 100 kHz
• Maximum DC resistance of 240 mΩ
• Compact design for easy integration.
