Wooden Camera E-Mount to PL Mount Pro (Sony FX6)

Wooden Camera - E-Mount to PL Mount Pro (Sony FX6)

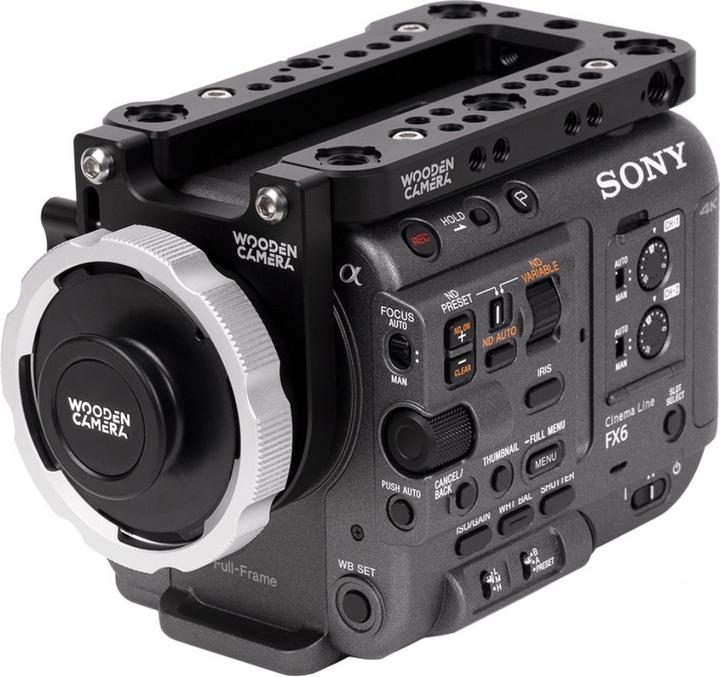

The E-Mount to PL Mount Pro adapter allows for the mounting of PL-Mount lenses on the Sony PXW-FX6 camera. The flange is factory set for the Sony FX6; you only need to adjust the shims if your camera is not calibrated. The adapter can be adjusted by loosening six internal hex screws around the collar, separating the two parts, and adding color-coded shims of varying thickness. The back focus should be checked with collimation tools or a wide-angle lens focused to infinity.

The mount includes a support ring that connects with our Top Plate (Sony FX6), which is a highly recommended addition to this system. Loosen the thumb screw on the support ring to quickly remove the mount and install a different adapter. The included PL cap prevents dust from entering the sensor area when the lens is not attached.

This adapter also works with any E-Mount camera, such as the FS7mkII, FX9, A7, A7r, A7s, A7II, FS100, FS700, NEX-5, NEX-6, NEX-7, etc., although the support ring would not be used.

Features:

• Support ring for integration with Top Plate (Sony FX6)

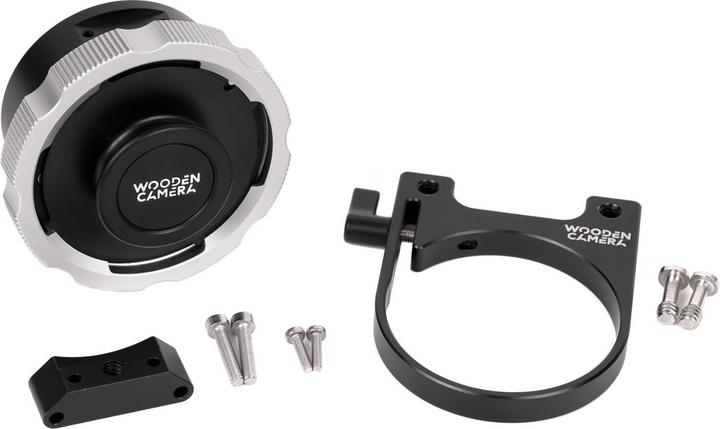

Includes:
(2) Support screws
Washer set (stackable to achieve the required thickness)
Silver 0.0127 mm (0.0005")
Amber 0.0254 mm (0.001")
Purple 0.0381 mm (0.0015")
Red 0.0508 mm (0.002")
Green 0.0762 mm (0.003")
Light Brown 0.1016 mm (0.004")
Blue 0.127 mm (0.005").
