Wooden Camera B-Box (RED Komodo)

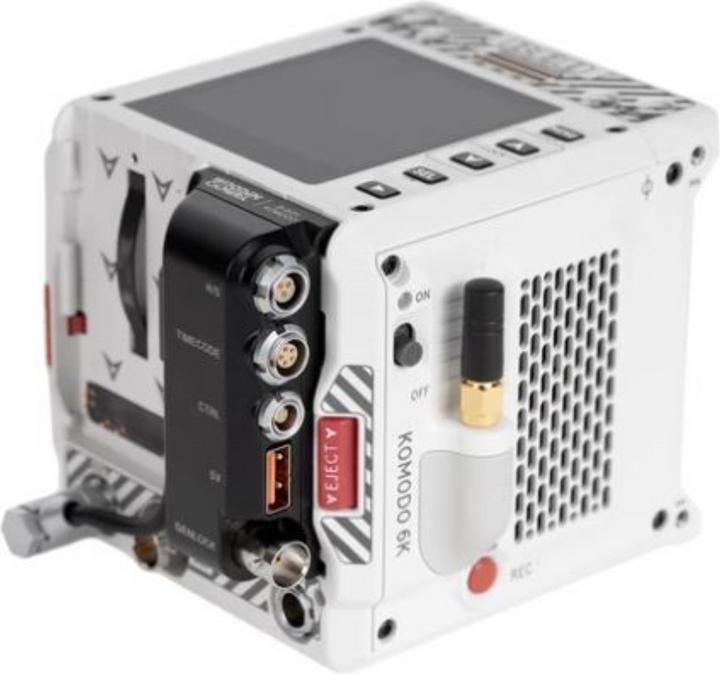

B-Box (RED Komodo) connects to the right BP-9 battery slot of the camera and provides an opening for the camera's EXT port. The Battery Slide Pro V-Mount or Gold Mount for RED Komodo can be used simultaneously, and the custom right-angle LEMO-compatible connector allows for clean cable management. Canon BP-9 batteries can also be mounted in the left slot of the camera when using the B-Box.

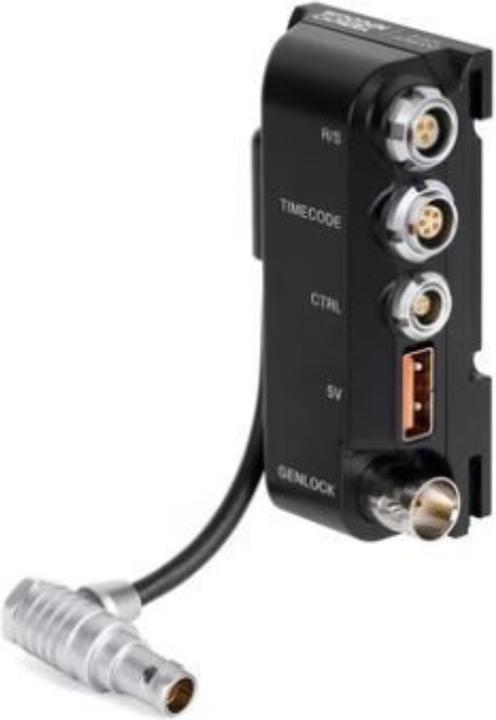

Available connections include:

• R/S (3-pin Fischer): simple run/stop for grip trigger box, simple 3-pin Fischer trigger cable, etc. No power available. Devices like ARRI WCU-4 may require a CTRL port interface with cable K2.0015758.
• Pin1: GND, Pin2: N/C, Pin3: GPI- Timecode (5-pin LEMO): standard wiring for timecode in/out. Pin1: GND, Pin2: LTC-IN, Pin3: N/C, Pin4: N/C, Pin5: LTC-OUT.
• CTRL (4-pin LEMO): standard wiring for RED CTRL. Pin1: GND, Pin2: UART-RX, Pin3: GPO, Pin4: UART-TX.
• 5V (USB): 5V available at a maximum of 500mA. Power may need to be enabled in the camera menu.
• Genlock (BNC): standard wiring for Genlock. Center: Signal, Shield: GND.

Specifications:
Weight: 100 g (0.23 lbs)
Dimensions: 107.95 x 82.5 x 25.4 mm (4.25 x 3.25 x 1 inch).
