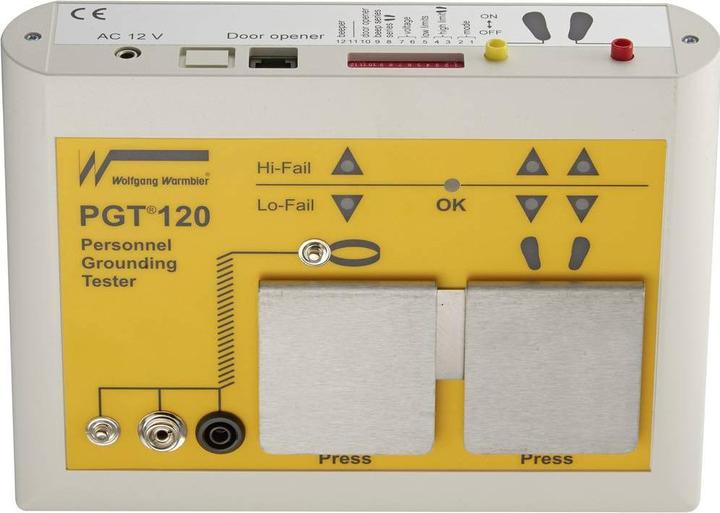

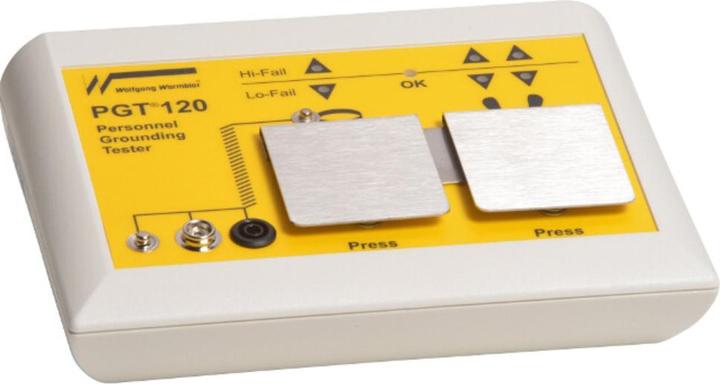

Wolfgang Warmbier Access monitoring PGT 120, ESD, PGT 120 without interface

The personal grounding tester checks the personal grounding resistance for wrist and/or footwear grounding. The PGT 120.COM also has an RS232 interface for further processing of the measured values and test results in ASCII format.

Features:

• Test result is signalled visually and acoustically
• Power supply via battery or plug-in power supply unit
• Wrist strap earthing test
• Separate testing of personal leakage resistance via left and right shoe
• Hands-free mode when using turnstiles, for example
• The lower limit values can be deactivated
• Can be used as a table-top and wall-mounted device (wall bracket optional)
• Limit values can be set via dip switches
• Potential-free changeover contact for external functions
• Data acquisition and further processing on the PC (only for PGT 120.COM/860510)

Scope of delivery:
1 piece PGT 120 or PGT 120.COM

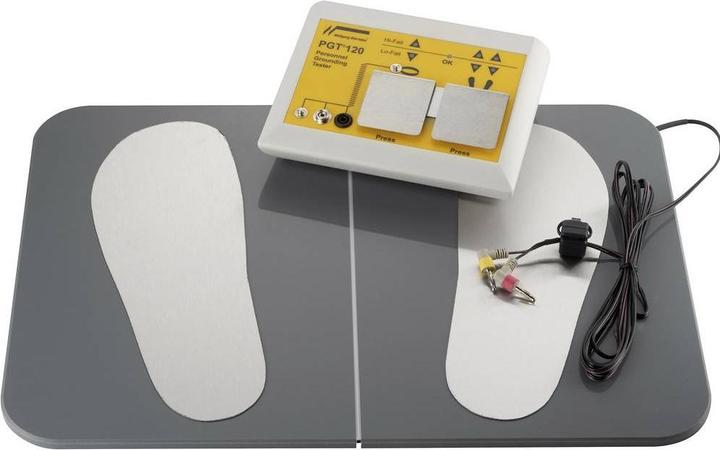

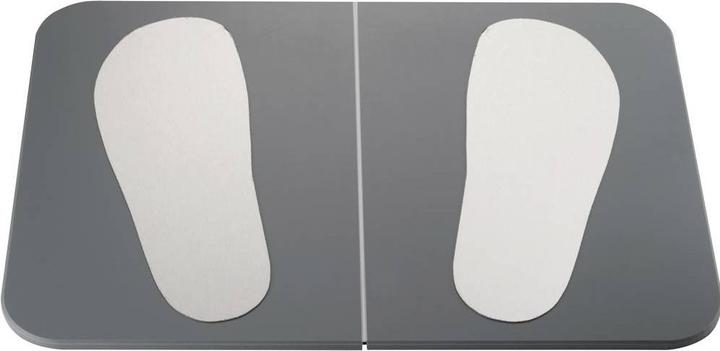

1 shoe electrode for separate measurement
1 factory calibration certificate
1 operating manual (German/English)
1 9V battery (PGT 120/860480 only)
1 plug-in power supply 230 VAC

Selection criteria:
Version: PGT 120 without interface

Technical Data:
Test voltage: 30/50/100 V/DC
Dimensions L x W x H: 200 x 150 x 65 mm
Weight: 2.64 kg

Item number: 7100.PGT120.
