Whadda Developer board ATmega328 for Arduino UNO

Minimum order 2
Ratings
Delivered Wed, 6.8.
More than 10 pieces in stock at third-party supplier
Supplied by
Conrad CH
Free shipping starting at 50.–

Product details

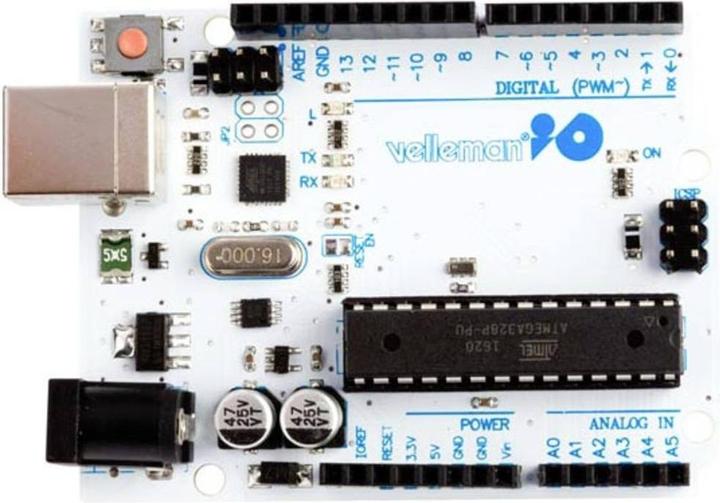

The ATmega328 UNO Development Board (compatible with Arduino Uno) is a microcontroller board based on the ATmega328. It features 14 digital input and output pins (6 of which can be used as PWM outputs), 6 analog inputs, a 16 MHz ceramic resonator, a USB port, a power jack, an ICSP header, and a reset button. It includes everything needed to support the microcontroller. Connect it to a computer using a USB cable or power it with an AC/DC adapter or a battery to get started.

Features: 100% compatible with Arduino UNO

Specifications:
Microcontroller: ATmega328
Operating Voltage: 5 VDC
Input Voltage (recommended): 7-12 VDC
Input Voltage (limits): 6-20 VDC
Digital I/O Pins: 14 (6 of which provide PWM output)
Analog Input Pins: 6
DC per I/O Pin: 40 mA
DC for 3.3 V Pin: 50 mA
Flash Memory: 32 kB (ATmega328), of which 0.5 kB is used by the bootloader
SRAM: 2 kB (ATmega328)
EEPROM: 1 kB (ATmega328)
Clock Rate: 16 MHz
Length: 68.6 mm
Width: 53.4 mm
Weight: 25 g.

Key specifications

Development board type
Kit
Memory
0.03 MB
Processor type
ATmega328
Clock speed
16 MHz
Number of cores
1
Item number
14560404

General information

Manufacturer
Whadda
Category
Development boards + Kits
Manufacturer no.
WPB100
Release date
5.1.2021
Minimum order
2
Minimum order
2

Target group

Target group
Adults, Youth

Development board properties

Development board type
Kit
Processor type
ATmega328
Clock speed
16 MHz
Memory
0.03 MB
Number of cores
1
Flash memory
32 kB

Power supply

Power supply
Electrical connection
Operating voltage
5 V

Connections

USB ports
USB-A
Exact USB ports
USB-A 2.0 (1x)
Analogue outputs
14
Analogue inputs
6
Digital outputs
14
Digital inputs
6
Number of I/O
14
Additional connections
GPIO

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1 piece

Product dimensions

Length
68.60 mm
Width
53.40 mm
Height
68.60 mm
Weight
25 g

Package dimensions

Length
16 cm
Width
8.40 cm
Height
4 cm
Weight
43 g

30-day right of return
24 Months Warranty (Bring-in)
