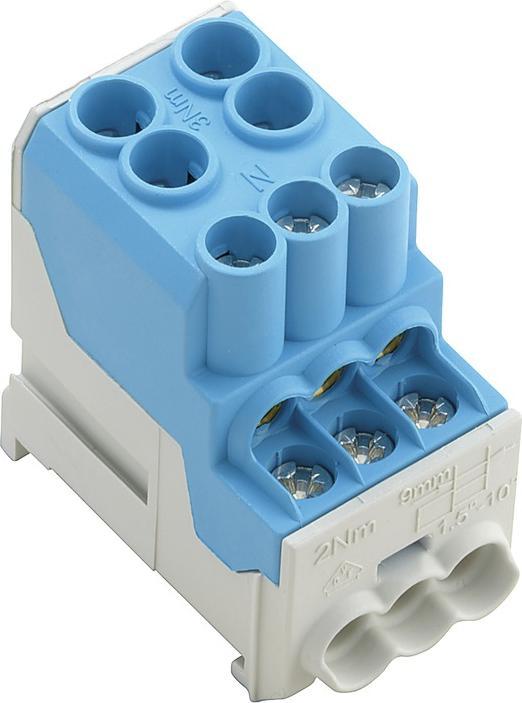

Weidmüller WPD 100 2X25/6X10 BL

Number of outlets: 2 (input), 6 (output)
Connection type: Screws
Housing material: Wemid
Rated current: 100A
Operating voltage: 690 V ac/dc
Cable cross section: 10 mm², 25 mm²
Length: 30.2 mm
Width: 49 mm
Height: 55.4 mm
Color: Blue
Operating temperature max: +130°C
Operating temperature min: -50°C

WPD distribution blocks. W series (WPD) distribution blocks from Weidmüller provide a wide range of options for your application, accommodating cable sizes from 0.05 mm² to 300 mm². These distribution blocks feature Wemid housings for increased safety and performance. With WPD distribution blocks, you can safely and efficiently distribute power to consumer locations. All models are very reliable and of excellent quality. Features and benefits include screw connection and connection rail/mounting plate.
