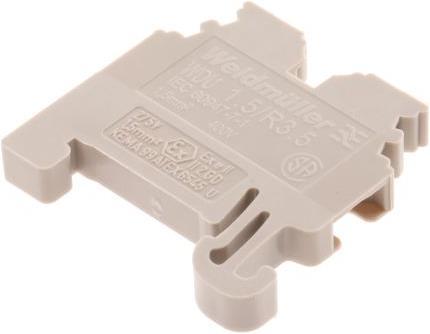

Weidmüller Standard WDU micro terminal,17.5A

Weidmüller Terminal Block WDU 1.5/R3.5

Manufacturer: Weidmüller
Designation: Terminal Block
Type: WDU 1.5/R3.5
Connectable conductor cross-section for fine-stranded without ferrule: 0.5..1.5 mm²
Connectable conductor cross-section for fine-stranded with ferrule: 0.5..1.5 mm²
Connectable conductor cross-section for single-stranded: 0.5..1.5 mm²
Connectable conductor cross-section for multi-stranded: 1.5 mm²
Rated current In: 17.5 A
Rated voltage: 400 V
Electrical connection type 1: Screw connection
Electrical connection type 2: Screw connection
Number of levels: 1
Number of terminal points per level: 2
Suitable for conductor material: Copper
Mounting type: TH15 DIN rail
Material of the insulating body: Thermoplastic
Operating temperature: -60..130 °C
Flammability class of the insulating material according to UL 94: V0
Width: 3.5 mm
Height: 24.5 mm
Depth: 24 mm
Explosion-proof version "Ex e": yes
End plate required: yes
Color: beige
Internally bridged levels: no

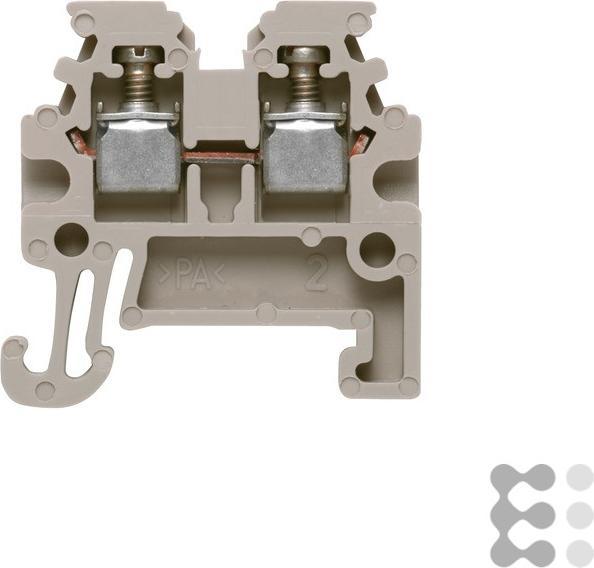

Weidmüller Terminal Block WDU 1.5/R3.5: additional details
Rail-mounted terminal for connecting or linking conductors with permanently secure contact. Hardened steel withstands mechanical forces, while tin-plated copper ensures optimal conductivity.
