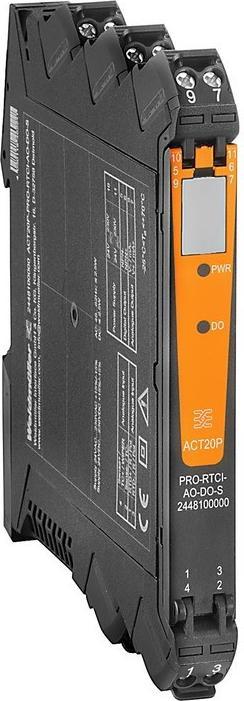

Weidmüller Isolating amplifier 20-30V passive 2channel 7760054117

Ratings
BrandMore from Weidmüller
Delivered between Fri, 19.9. and Thu, 9.10.
free shipping

Product details

Weidmüller Current transducer ACT20P-2CI-2CO-12-S Manufacturer :Weidmüller Designation :Current transducer dual-channel Type :ACT20P-2CI-2CO-12-S Rated supply voltage at AC :0 V Rated operating frequency :0 Hz Rated supply voltage at DC :24 V Number of input ranges 0 mA ... 20 mA :2 Number of input ranges 4 mA ... 20 mA :2 Number of output ranges 0 mA ... 20 mA :2 Number of output ranges 4 mA ... 20 mA :2 Fault signal output :no Galvanic isolation between the inputs :yes Galvanic isolation between input and output :yes Galvanic isolation between supply voltage and all other circuits :yes SIL according to IEC 61508 :none Height :117.2 mm Width :12.5 mm Depth :113.7 mm Power consumption :3 W Operating temperature :60 °C Device design :other Electrical connection design :screw connection Protection class (IP) :IP20 Weidmüller ACT20P-2CI-2CO-12-S current transducer: Further details Isolating amplifier for measuring electrical and physical quantities. With galvanic isolation, universally applicable. EAN: 6944169656576.

Key specifications

input voltage
24 V
Output voltage
20 V
Output current type
DC
Electric current output
0.02 A
Item number
34604655

General information

Manufacturer
Weidmüller
Category
Relays
Manufacturer no.
7760054117
Release date
17.5.2023

Relay properties

input voltage
24 V
Output voltage
20 V
Electric current output
0.02 A
Output current type
DC
Resistor
300 Ω (ohm)
Manufacturer Type
ACT20P-2CI-2CO-12-S

Smart home features

Smart Home
Not compatible

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
113.70 mm
Width
12.50 mm
Height
117.20 mm
