Weidmüller Fuse terminal block 0.5-10qmm 1014100000

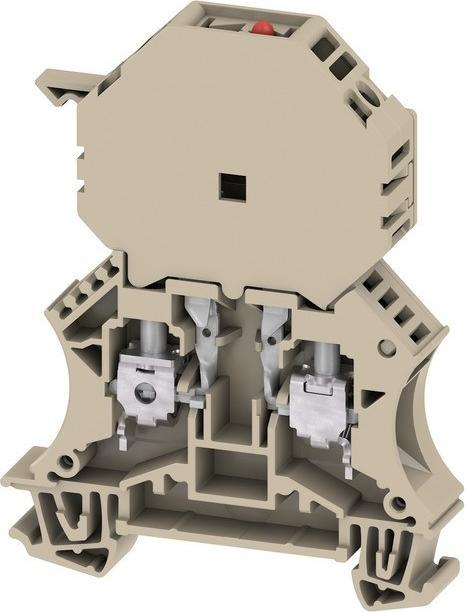

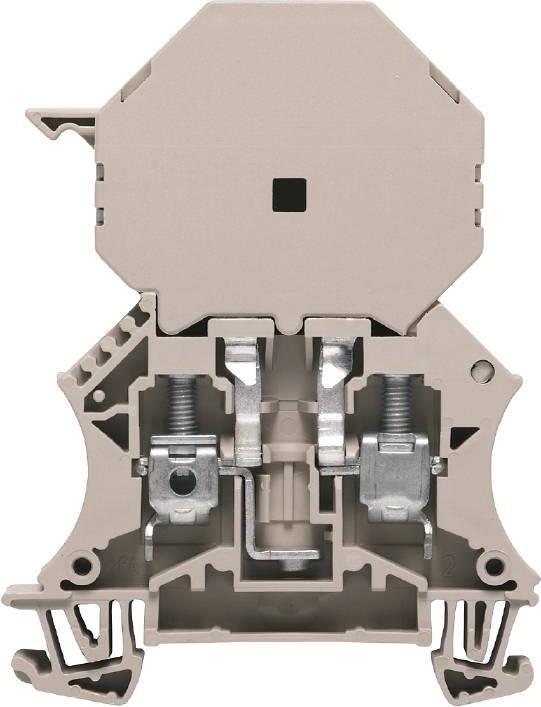

Weidmüller Fuse Terminal WSI 6/2/LD10-36VDCAC

Manufacturer: Weidmüller
Designation: Fuse Terminal
Type: WSI 6/2/LD10-36VDCAC
Fuse element design: other
Fuse holder design: swivel
Type of display element for fault indication: LED
Supply voltage for fault indication: 36 V
Voltage type for fault indication: AC/DC
Connectable conductor cross-section fine-stranded without ferrule: 0.5 - 10 mm²
Connectable conductor cross-section fine-stranded with ferrule: 0.5 - 6 mm²
Connectable conductor cross-section solid: 0.5 - 10 mm²
Connectable conductor cross-section multi-stranded: 1.5 - 10 mm²
Rated current In: 6.3 A
Rated voltage: 36 V
Electrical connection type 1: screw connection
Electrical connection type 2: other
Number of levels: 1
Mounting type: TH35 rail
Material of insulating body: thermoplastic
Operating temperature: -50 - 120 °C
Flammability class of insulating material according to UL 94: V0
Width: 11.9 mm
Height: 60 mm
Depth: 78.5 mm
End plate required: yes
Color: beige

Weidmüller Fuse Terminal WSI 6/2/LD10-36VDCAC: additional details
Rail-mounted terminal for connecting or linking conductors with permanently secure contact. Hardened steel withstands mechanical forces, and tin-plated copper ensures optimal conductivity. With removable carrier for a fuse element.
EAN: 4008190156954.
