Weidmüller Coupling relay 24 V/DC, 2

Minimum order 2
Ratings
BrandMore from Weidmüller
Delivered between Fri, 18.7. and Wed, 6.8.
More than 10 pieces in stock at third-party supplier
Supplied by
Free shipping starting at 50.–

Product details

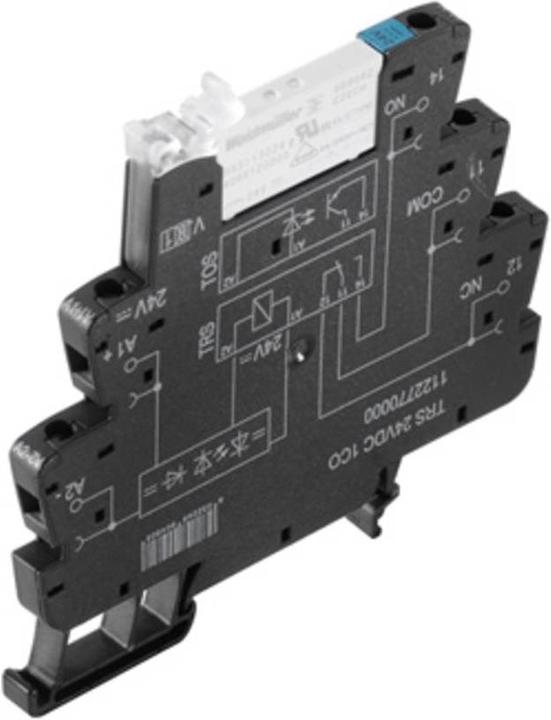

The Weidmüller coupling relay is a reliable switching relay designed for applications requiring separation of control and load circuits. It provides galvanic isolation between the two circuits, enhancing safety and efficiency in electrical systems. With a switching capacity of up to 1.5 kVA and a maximum switching voltage of 250 V for both AC and DC, this relay is versatile in its applications. Installation is straightforward on a DIN rail, making it easy to set up in various environments. The relay features a screw terminal that ensures a secure and stable connection. The contact configuration includes a changeover contact, allowing for flexible control. With a compact design and an IP20 protection rating, the relay is ideal for use in industrial applications.

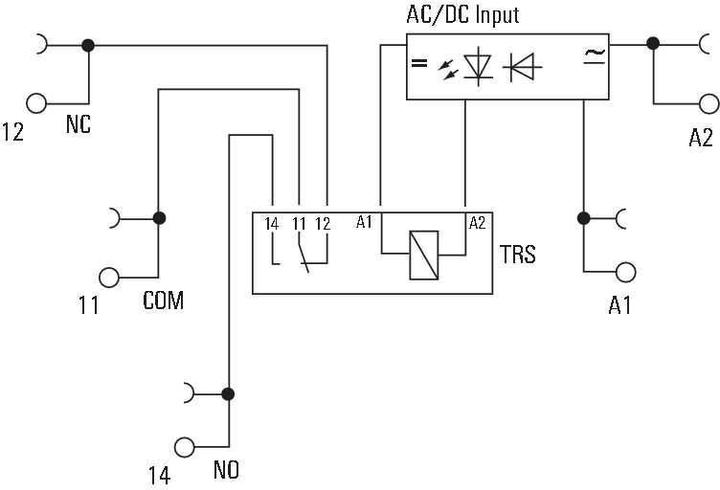

  • Galvanically isolated control and load circuits
  • Switching capacity of up to 1.5 kVA
  • Maximum switching voltage of 250 V for AC and DC
  • Easy installation on DIN rail
  • Contact material made of AgNi for high reliability.

Key specifications

input voltage
24 V
Scope of delivery
10
Output voltage
250 V
Output current type
DC
Electric current output
6 A
Relay type
Switching relay
Item number
8436532

General information

Manufacturer
Weidmüller
Category
Relays
Manufacturer no.
1122780000
Release date
20.4.2018
External links
Manufacturer's site (de)
Minimum order
2
Minimum order
2

Relay properties

Relay type
Switching relay
input voltage
24 V
Output voltage
250 V
Electric current output
6 A
Output current type
DC

Smart home features

Smart Home
Not compatible

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
10

Product dimensions

Length
70 mm
Width
6.40 mm
Height
90 mm
Weight
34 g

30-day right of return
24 Months Warranty (Bring-in)
