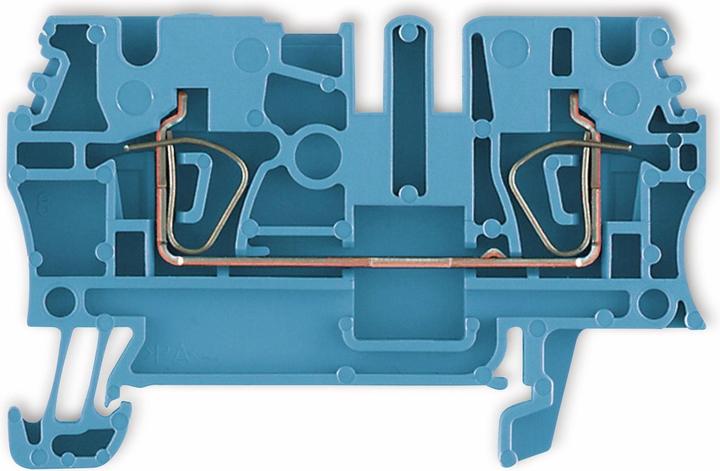

Weidmüller Blue ZDU2.5 standard DIN rail terminal

Series: ZDU
Wire size: 30 → 12 AWG
Wire gauge: 2.5mm²
Color: Blue
Rated current: 31A
Number of levels: Single
Connection type: Terminal
Operating voltage: 800 V
Operating temperature min.: -50°C
Operating temperature max.: +120°C

Feed-through terminal blocks, Z Series, Weidmüller. Modular terminal blocks with spring clamp connections - the Z Series - have been specially designed to meet customer requirements: compact design, surfaces with generous marking, integrated test contact, cross-connection options within the Z Series and with other modular terminal blocks from Weidmüller. The Z Series terminals have a large clamping range and can accommodate one or two cross-connection channels. The standard plug-in cross-connections allow potentials to be distributed across any number of terminals. Features and benefits: available with one, two, three, and four levels; spring clamp technology; available in a variety of colors.
