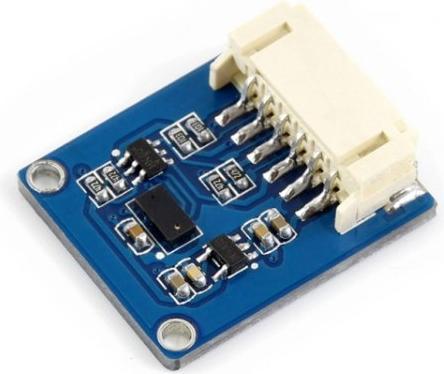

WaveShare VL53L0X ToF distance sensor up to 2m

The VL53L0X distance sensor is a Time-of-Flight (ToF) distance module based on the VL53L0X from ST. The distance sensor has a range of up to 2 meters and a fast sampling rate of up to 50 Hz. The sensor is controlled via the I2C interface and has low power consumption. It features a PH2.0 mm connector, allowing you to easily connect your own crimped cables to the sensor.

Features of the VL53L0X ToF distance sensor:
I2C communication interface, module on/off control via IO pins
Suitable for 3.3 V logic levels only
Detailed user manual available in English
Sample programs for Raspberry Pi/Arduino/STM32 available

Application examples for the VL53L0X ToF distance sensor:
Mobile robots (fast distance measurement, obstacle detection, wall tracking)
User detection for turning devices on and off and locking/unlocking devices like PCs, laptops, and tablets
Drones (landing assistance, hovering, ceiling detection)
Smart buildings and lighting (person detection, 1D gesture recognition)
Cameras (autofocus enhancement in low light conditions, video focus tracking assistance)

Technical details:
Supply voltage: 3.3 VDC to 5 VDC
Maximum level voltage: 3.3 V
Range: 30 mm to 2000 mm
Measurement range accuracy: ±5 %
Range time (min): 20 ms (short-range mode), 200 ms (accuracy mode)
Field of view: 25°
Laser wavelength: 940 nm
Operating temperature: -20 to 80 °C
Mounting hole diameter: 2.0 mm
Dimensions: 20 mm × 24 mm
Weight: 8.5 g

Included in the package:

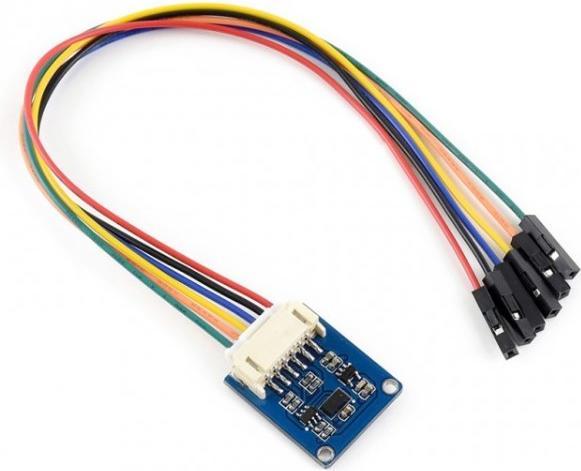

1x VL53L0X ToF distance sensor up to 2 m
1x PH2.0 / XH2.0 mm to 1x6Pin Female Dupont cable 20 cm.
