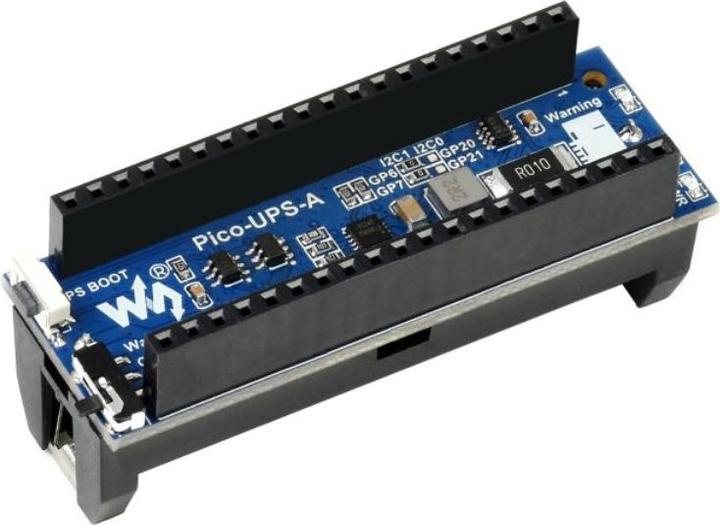

The Pico-UPS-A is a specialized UPS (uninterruptible power supply) module for the Raspberry Pi Pico. It includes a Li-ion battery charger with power management and a voltage/current monitoring chip that allows for monitoring and reading the battery voltage and current via the I2C bus.

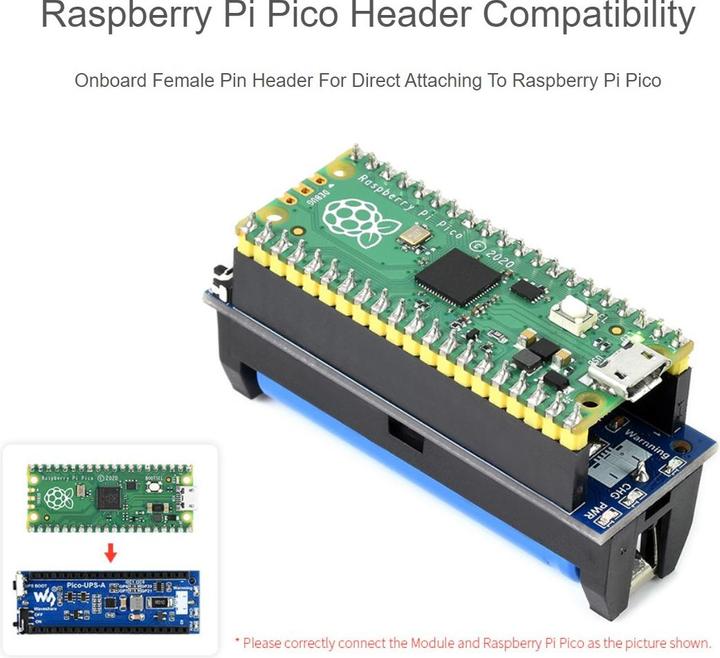

Warning: Make sure to insert the Raspberry Pi Pico on the correct side. Otherwise, the Pico may be damaged.

Recommended accessories:
Raspberry Pi Pico microcontroller
14500 3.7V Li-Ion battery 750mAh ICR14500

Features:

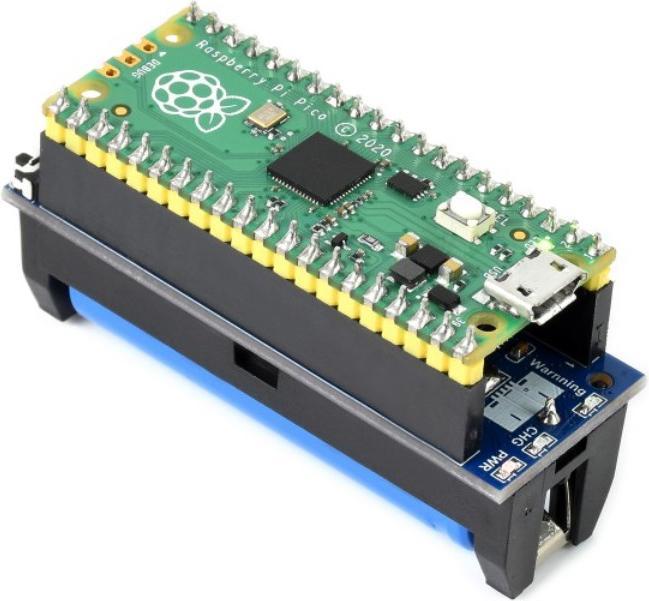

  • Standard Raspberry Pi Pico socket, supports the Raspberry Pi Pico series.
  • Includes a Li-ion battery charger with dynamic power management and more stable power supply.
  • I2C bus communication, real-time monitoring of battery voltage, current, power, and remaining capacity.
  • Battery protection circuits: overcharge/discharge protection, overcurrent protection, short circuit protection, and reverse polarity protection.

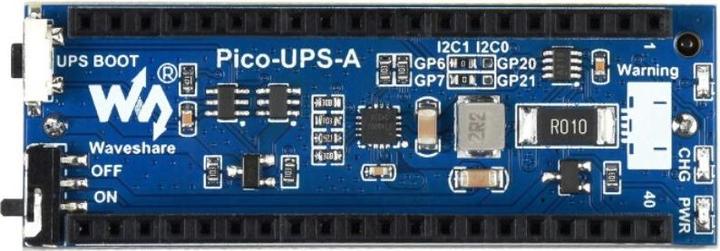

  • Onboard charging indicator, power indicator, and battery warning indicator to check if the battery is connected correctly.
  • Supports 14500 Li-ion battery (not included).
  • On/Off toggle switch.
  • Raspberry Pi Pico C/C++ and MicroPython examples available.

Technical details:
Manufacturer: Waveshare
Manufacturer SKU: 19694
Charging voltage: 5V
Interface: I2C

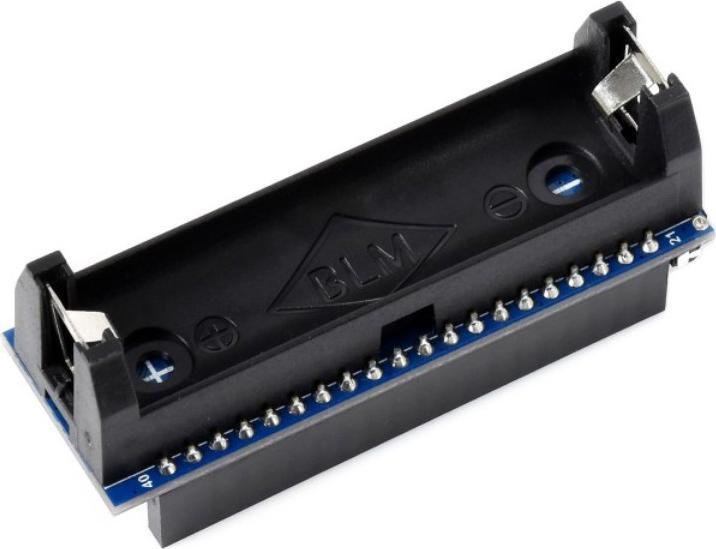

Battery support: 14500 battery (not included)
Dimensions: 60 x 21 x 26mm
Weight: 15g

Delivery includes:
1x UPS module for Raspberry Pi Pico uninterruptible power supply.

Key specifications

Item number
25007124

General information

Manufacturer
WaveShare
Category
Development boards + Kits
Release date
3.4.2023

Power supply

Operating voltage
5 V

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1x UPS module for Raspberry Pi Pico Uninterruptible power supply
Additionally required (not included)
14500 3.7V Li-Ion battery 750mAh ICR14500, 1x Raspberry Pi Pico microcontroller

Product dimensions

Weight
15 g
