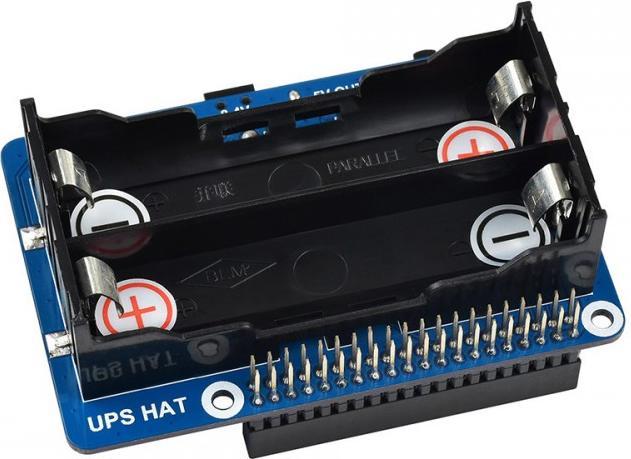

WaveShare UPS HAT for Raspberry Pi Uninterruptible Power Supply

Ratings
BrandMore from WaveShare
Delivered between Thu, 17.7. and Fri, 18.7.
More than 10 pieces in stock at third-party supplier
Supplied by
Free shipping starting at 50.–

Product details

With this UPS HAT, you can keep your Raspberry Pi running after a power outage until the battery is drained. When the power supply is turned back on, the UPS HAT charges in parallel.

Features:

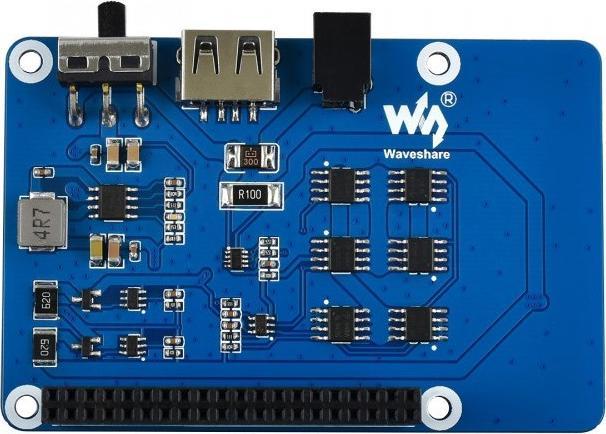

Standard Raspberry Pi 40PIN GPIO is passed through and can still be used with the HAT attached. I2C bus communication, real-time monitoring of battery voltage, current, power, and remaining capacity. Li-Ion battery protection circuit: overcharge/discharge protection, overcurrent protection, short circuit protection, and reverse polarity protection, along with a balancing charge function for safety and stability. Integrated 5V regulator, capable of up to 2.5A continuous output current. 5V USB output, convenient for powering other boards. Battery warning indicators make it easy to check if the battery is properly connected.

Recommended Accessories:
2x Li-Ion Battery 3.7V 3200mA NCR18650B 18650

Technical Details:
Manufacturer: Waveshare
Manufacturer SKU: 18306

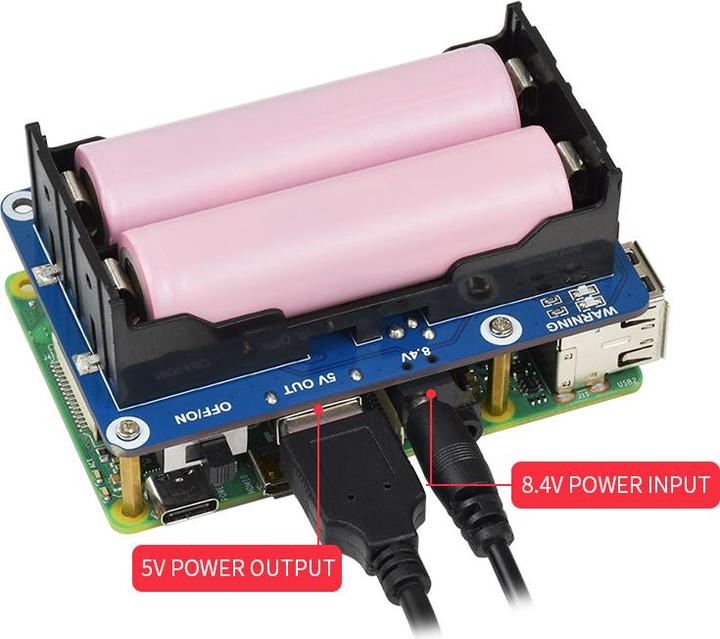

Output Voltage: 5V
Charger: 8.4V 2A (included)
Control Bus: I2C
Supported Battery: 18650 Li-Ion Battery (not included)
Dimensions: 56 × 85mm
Weight: 220g

Package Contents:
1x UPS HAT for Raspberry Pi Uninterruptible Power Supply
1x 8.4V Battery Charger
1x 20PIN Header
1x RPi Screw Set.

Key specifications

Item number
25007122

General information

Manufacturer
WaveShare
Category
Development boards + Kits
Release date
3.4.2023
Sales rank in Category Development boards + Kits
216 of 2682

Power supply

Operating voltage
5 V

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1x 20PIN socket strip, 1x 8.4V battery charger, 1x RPi screw set, 1x UPS HAT for Raspberry Uninterruptible power supply
Additionally required (not included)
2x Li-Ion battery 3.7V 3200mA NCR18650B 18650

Product dimensions

Weight
220 g
