WaveShare Universal Raw e-Paper Driver HAT Adapter

Practical universal e-Paper Driver HAT for direct connection of Raw E-Ink displays to a Raspberry Pi. You can also connect an ESP8266 or an Arduino using the included Dupont cables. With this adapter, you can directly connect our affordable Raw e-Paper displays (e-Paper raw panels without a circuit board) to your Arduino, Raspberry Pi, or ESP8266. The ePaper displays are not suitable for use with an Arduino UNO due to insufficient memory. Therefore, we recommend using the shield with an Arduino Leonardo, Mega, or ESP8266, ESP32, Raspberry Pi, etc.

Features:
Compatible with Raspberry Pi 2B/3B/3B+/Zero/Zero W (directly pluggable)
Compatible with Arduino and ESP32, ESP8266 via Dupont cables
On-board logic level converter for operation with 3.3V and 5V microcontrollers
Good documentation and example code available at Waveshare Wiki
Programming examples available for the following controllers: Arduino, STM32, and Raspberry Pi

Technical Details:
Operating voltage: 3.3-5 V DC
Interface: 3-wire SPI, 4-wire SPI (standard)
Mounting hole diameter: 3 mm
Dimensions: 65 x 30.2 mm
Weight: 21 g

Included in delivery:

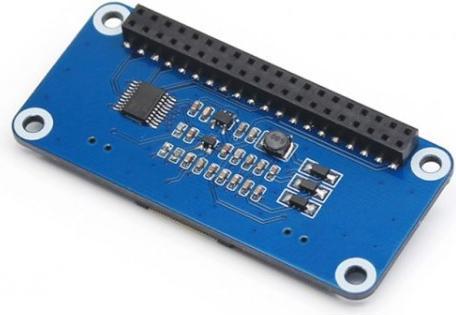

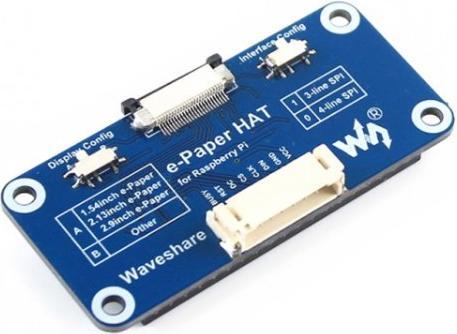

1x e-Paper Driver HAT
1x screw set for Raspberry Pi

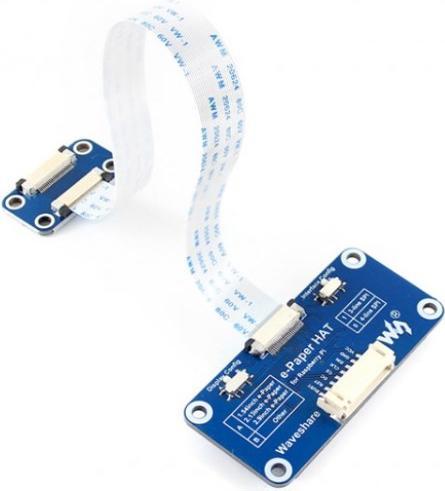

1x 24PIN FFC cable

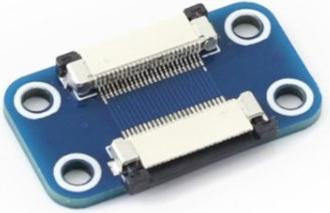

1x FFC adapter for display
1x PH2.0 to Dupont 2.54 mm adapter cable 20 cm

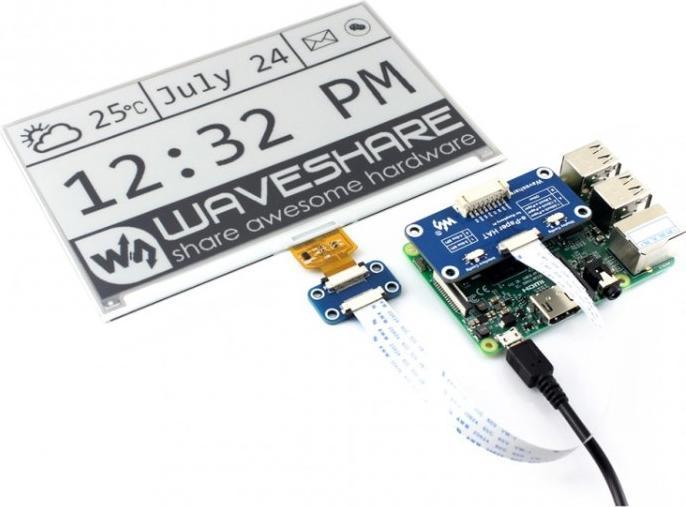

Note: The e-Paper display and the Raspberry Pi shown in the photos are not included in the delivery.
