WaveShare Universal Raw Driver e-Paper Shield for Arduino and NUCLEO

Ratings
Delivered between Tue, 27.5. and Wed, 28.5.
5 items in stock at third-party supplier
Supplied by

Product details

Practical universal e-Paper Driver Shield for direct connection of Raw E-Ink displays to an Arduino or Nucleo board. With this shield, you can connect our affordable Raw e-Paper displays (e-Paper raw panels without a circuit board) directly to your Arduino. The e-Paper displays are not suitable for use with an Arduino UNO due to insufficient memory. Therefore, we recommend using the shield with an Arduino Leonardo or NUCLEO, XNUCLEO, etc.

Features:
Compatible with Arduino boards such as UNO, Leonardo, NUCLEO, XNUCLEO, etc.
On-board logic level converter for operation with 3.3V and 5V microcontrollers
Integrated external RAM 1024K bits controllable via SPI
Micro SD slot, images can be saved on the TF card for display
Detailed user manual available in English

Technical details:
Operating voltage: 3.3VDC / 5VDC
Interface: 3-wire SPI, 4-wire SPI (standard)
Dimensions: 53.34 × 53.34mm
Weight: 29g

Delivery includes:
1x Universal Raw e-Paper Driver Shield for Arduino / NUCLEO
1x e-Paper Raw Adapter

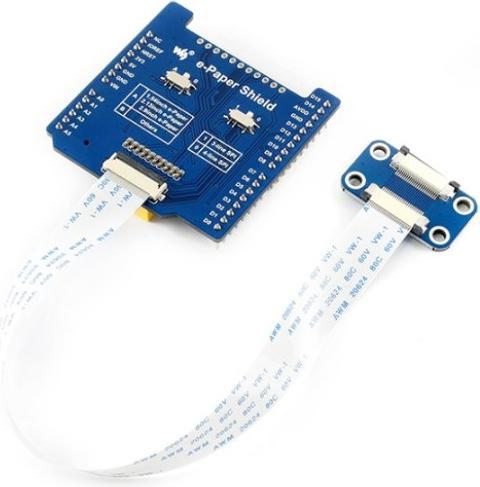

1x 24PIN FFC cable

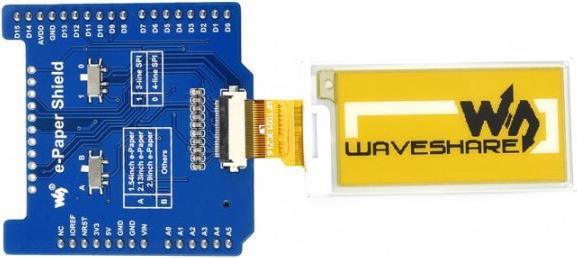

Note: The e-Paper display shown in the photos is not included.

Key specifications

Development board type
Kit
Memory
1.02 MB
Item number
24963575

General information

Manufacturer
WaveShare
Category
Development boards + Kits
Release date
31.3.2023

Development board properties

Development board type
Kit
Memory
1.02 MB
Flash memory
1024 kB

Power supply

Power supply
Electrical connection
Operating voltage
5 V

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1x 24PIN FFC cable, 1x e-Paper Raw Adapter, 1x Universal Raw e-Paper Driver Shield for Arduino / NUCLEO

Product dimensions

Length
53.34 mm
Width
53.34 mm
Weight
29 g

30-day right of return
24 Months Warranty (Bring-in)
