WaveShare ToF UART/I2C 15m Long Range Laser Distance Sensor

Ratings
BrandMore from WaveShare
Delivered between Thu, 10.7. and Fri, 11.7.
8 pieces in stock at third-party supplier
Supplied by
Free shipping starting at 50.–

Product details

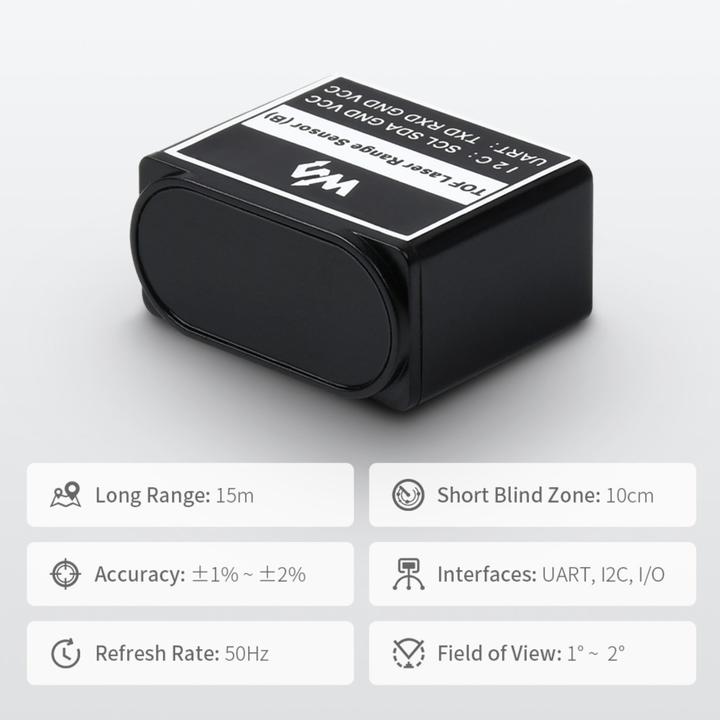

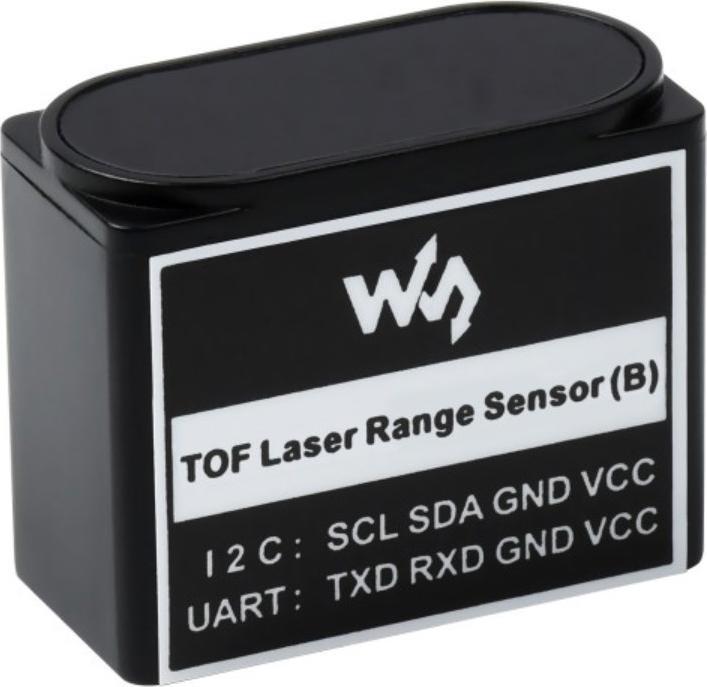

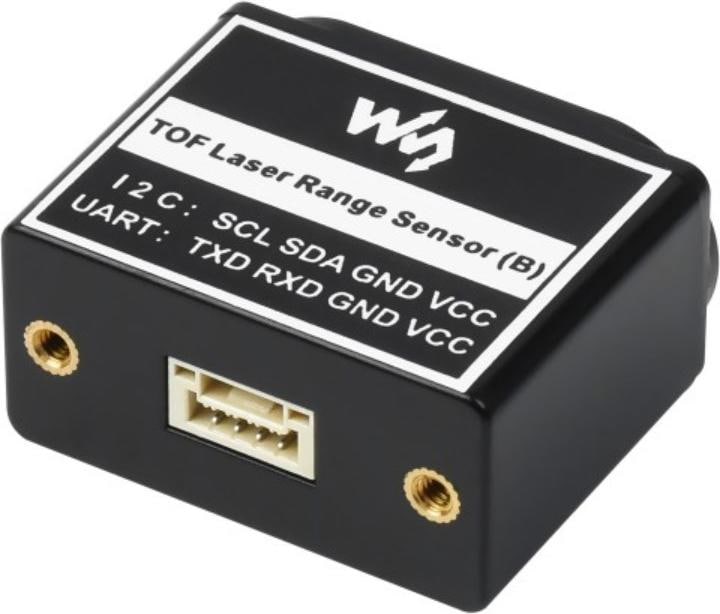

This is a Time of Flight distance sensor from Waveshare. The sensor measures the distance to objects up to 15 m away with a tolerance of ±2% and a resolution of 1 mm. It has a very small measurement angle of only 1°-2°, making it less prone to interference. The sensor communicates via UART or I2C interface and operates with an input voltage of 3.7-5.2 V. The distance sensor can be used in various applications, such as robotics or home electronics.

Features:

  • ToF laser distance sensor
  • Large measurement range of up to 15 m
  • Communication via UART or I2C interface
  • Tolerance of ±2%
  • Resolution of 1 mm

Technical Details:

  • Manufacturer: Waveshare
  • Manufacturer SKU: 21221
  • Input Voltage: 3.7-5.2 V
  • Measurement Range: 15 m
  • Measurement Angle: 1°-2°
  • Resolution: 1 mm
  • Communication Interface: UART or I2C
  • Baud Rate: UART 115200-3000000 bps, I2C up to 400 Kbps
  • Light Resistance: 100 KLUX
  • Dimensions: 22.7 x 28 x 13.6 mm
  • Weight: 18.5 g

Package Contents:

  • 1x ToF UART/I2C 15 m Long Range Laser Distance Sensor
  • 1x GH1.25 4PIN
  • 1x GH1.25 4PIN to Dupont.

Key specifications

Item number
25046318

General information

Manufacturer
WaveShare
Category
Development boards + Kits
Release date
6.4.2023

Power supply

Operating voltage
5.20 V

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1x GH1.25 4PIN, 1x GH1.25 4PIN on Dupont, 1x ToF UART/I2C 15m Long Range Laser Distance Sensor

Product dimensions

Weight
18.50 g

30-day right of return
24 Months Warranty (Bring-in)
