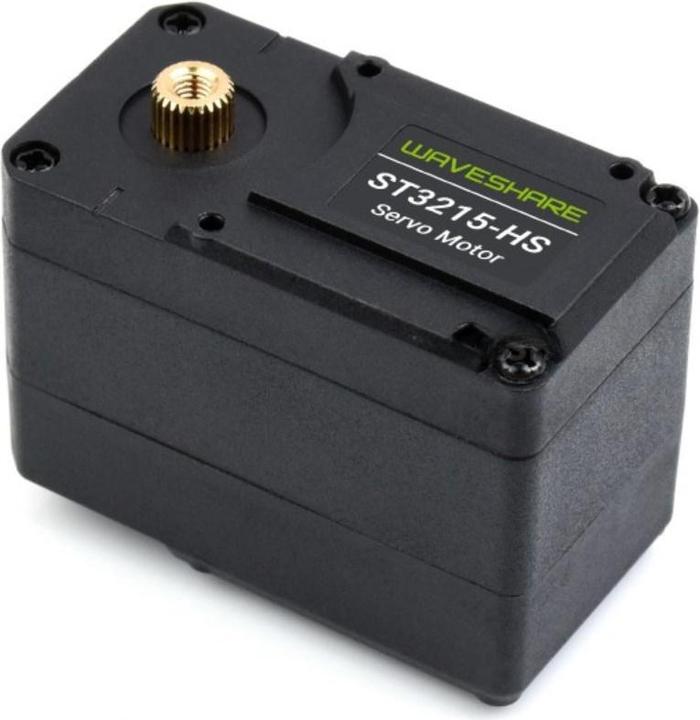

WaveShare ST3215-HS 20Kg Serial Bus Servo

Ratings
BrandMore from WaveShare
Delivered between Tue, 8.7. and Wed, 9.7.
More than 10 pieces in stock at third-party supplier
Supplied by
Free shipping starting at 50.–

Product details

This is a programmable ST3215-HS 360° bus servo with up to 20Kg*cm torque.Up to 253 of these servos can be connected in series via the UART interface to perform complex tasks, for example in robotics. To enable the servo to withstand loads of up to 20kg*cm, it has a robust metal gearbox. The serial bus servos provide various feedback signals such as position, load, speed and input voltage in real time.

Attention: This servo cannot be controlled via PWM like standard servos, but via UART!

Recommended accessories for control:
ESP32 Serial Bus Servo Driver Expansion Board
Serial Bus Servo Driver Adapter (A) USB/UART

Features:
Programmable serial bus servo
Metal gearbox
20kg*cm torque at 12V
UART interface
Real-time readout of position, load, speed and input voltage.
Up to 253x switchable in series

Application examples:
Robot arms
Hexapod robot
Wheeled robot
Open source 12-DOF robot dog model

Technical details:
Manufacturer: Waveshare
Manufacturer SKU: 25127
Input voltage: 6 ~ 12.6V
Load current: 240mA ~ 2.4A
Gear: High precision metal gear
Modes: Servo mode angle control, motor mode continuous rotation
Servo mode:
Rotation angle: 360°
Position sensor resolution: 360°/4096

Idle speed: 0.094sec/60° (106rpm) at 12V
Torque: 20kg*cm at 12V
ID range: 0-253
Baud rate: 38400bps ~ 1Mbps
Feedback: position, load, speed, input voltage
Dimensions: 24.72 x 45.22 x 35 mm
Weight: 68.1g

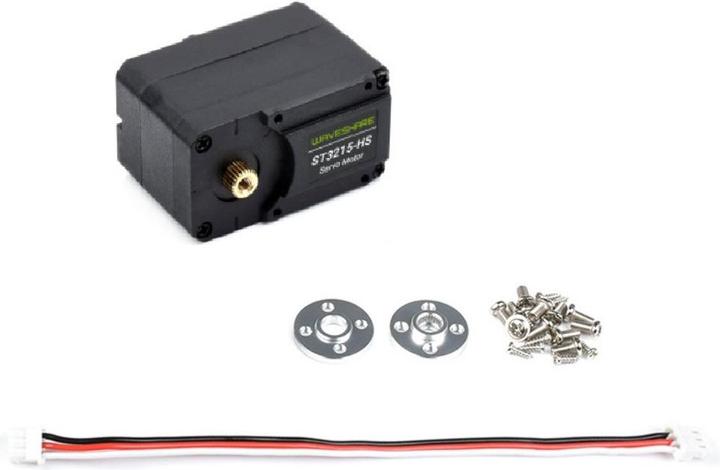

Scope of delivery:
1x ST3215-HS 20Kg Serial Bus Servo
1x 3p JST to 3p JST cable servo cable 15cm
1x screws
1x Aluminium servo wheel
1x Aluminium wheel (for double axis installation).

Key specifications

Item number
39538597

General information

Manufacturer
WaveShare
Category
Development boards + Kits
Release date
24.10.2023

Power supply

Operating voltage
12.60 V

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
1x 3p JST to 3p JST cable servo cable 15cm, 1x aluminium servo wheel, 1x aluminium wheel (for double axle installation), 1x screws, 1x ST3215-HS 20Kg Serial Bus Servo
Additionally required (not included)
ESP32 Serial Bus Servo Driver Expansion Board, Serial Bus Servo Driver Adapter (A) USB/UART

Product dimensions

Weight
68.10 g
