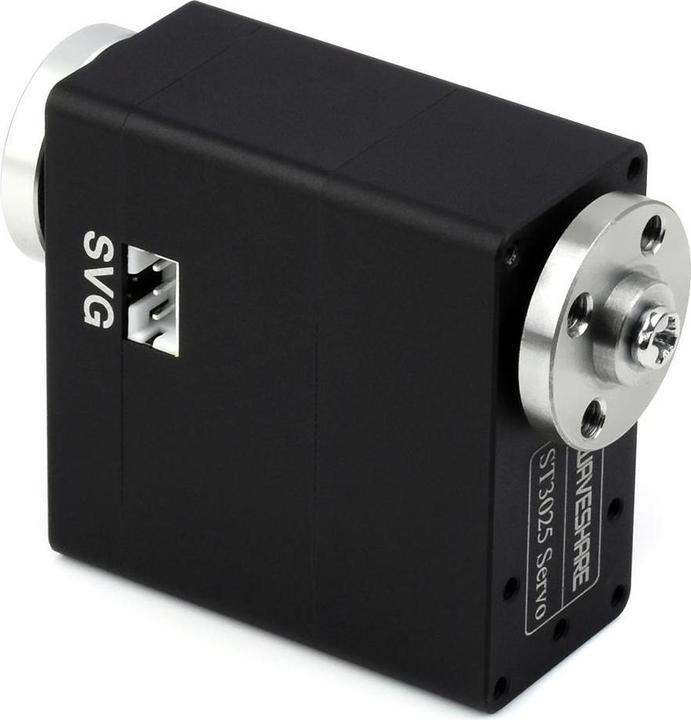

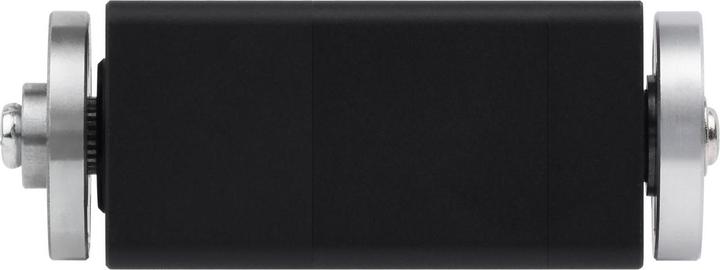

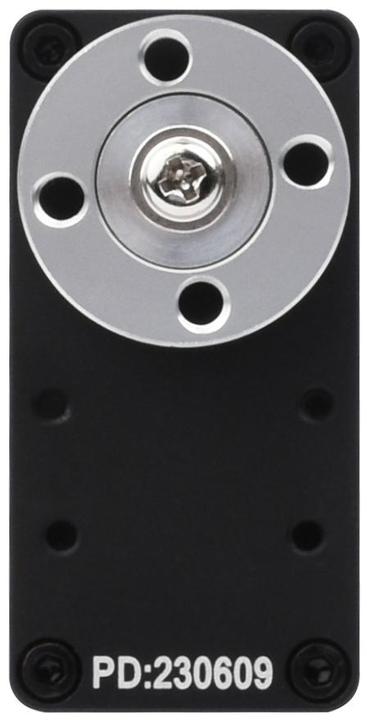

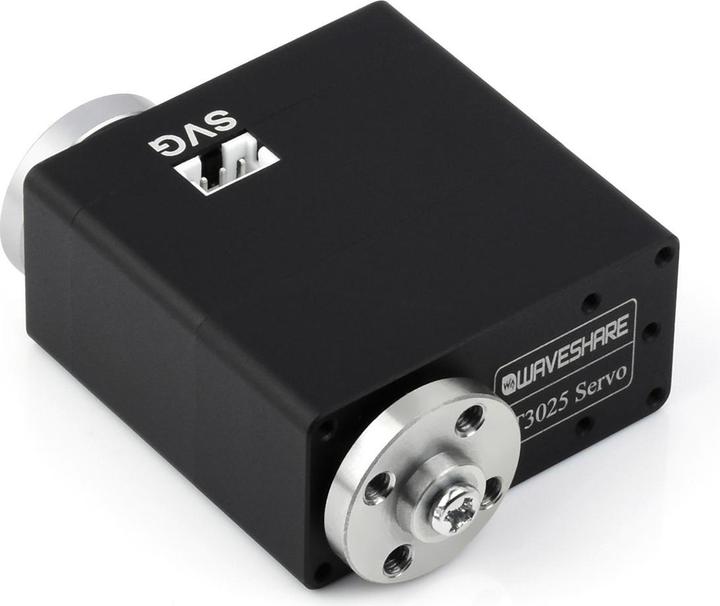

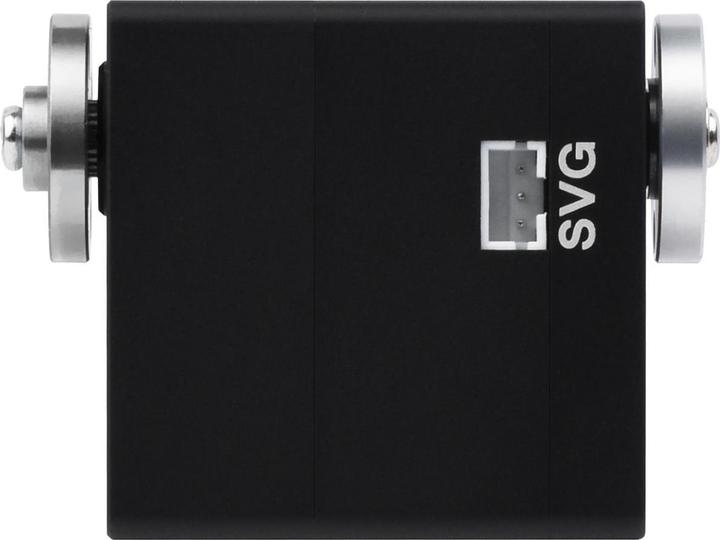

WaveShare ST3025 40kg Serial Bus Servo

This is a programmable ST3025 360° bus servo with up to 40 kg*cm torque. Up to 253 of these servos can be connected in series via the UART interface to perform complex tasks, such as in robotics. To enable the servo to withstand loads of up to 40 kg*cm, it has a robust metal gearbox. The serial bus servos provide various feedback signals, including position, load, speed, and input voltage in real time.

Attention: This servo cannot be controlled via PWM like standard servos, but via UART.

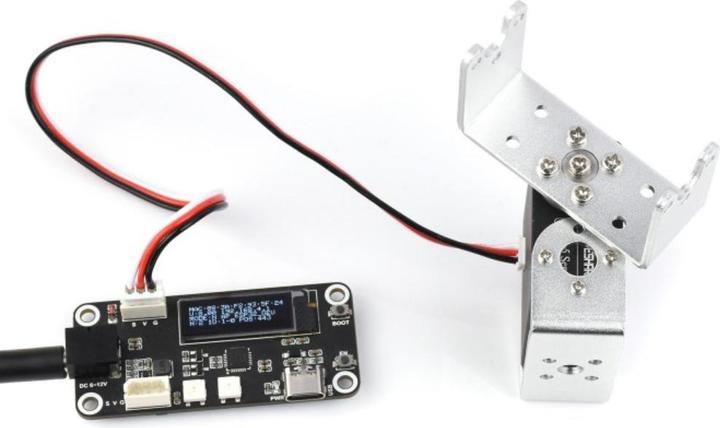

Recommended accessories for control:

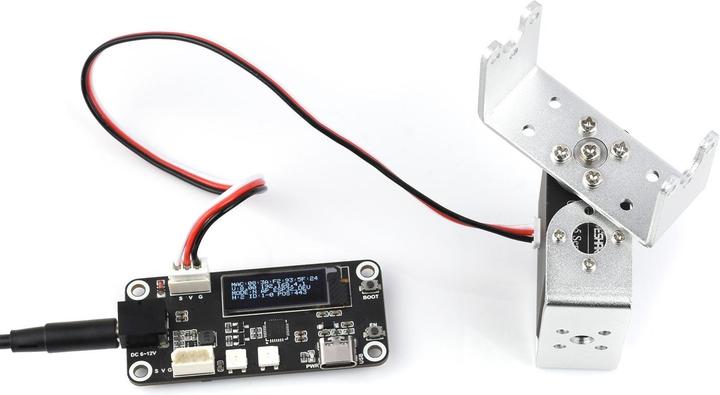

• ESP32 Serial Bus Servo Driver Expansion Board
• Serial Bus Servo Driver Adapter (A) USB/UART

Features:

• Programmable serial bus servo
• Metal gear
• 40 kg*cm torque
• UART interface
• Real-time readout of position, load, speed, and input voltage
• Up to 253 switchable in series

Application examples:

• Robot arms

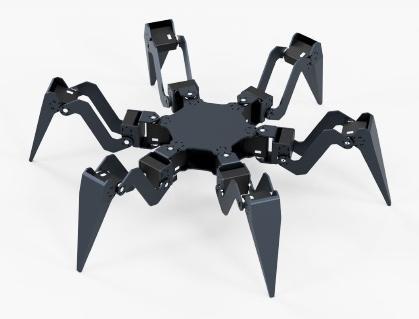

• Hexapod robot
• Wheeled robot
• Open source 12-DOF robot dog model

Technical details:

• Manufacturer: Waveshare
• Manufacturer SKU: 24702
• Input voltage: 6–12.6V DC
• Load current: 380mA – 4.4A

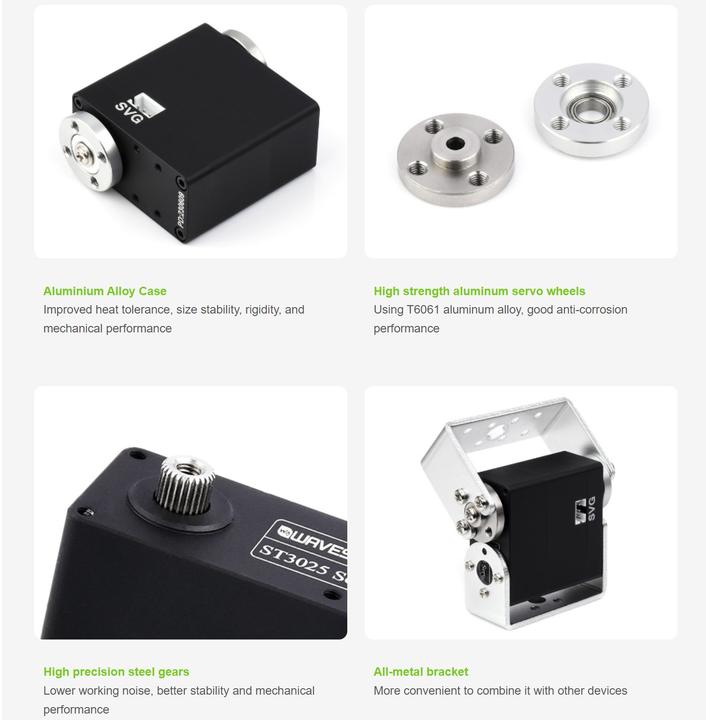

• Gear: High precision metal gear
• Modes: Servo mode angular control, motor mode continuous rotation
• Servo mode:
• Rotation angle: 360°
• Position sensor resolution: 360°/4096
• Idle speed: 0.117 sec/60° (85 RPM)
• Torque: 40 kg*cm
• ID range: 0-253
• Baud rate: 38400 bps – 1 Mbps
• Feedback: Position, load, speed, input voltage, current, temperature
• Dimensions: 40 x 20 x 40 mm
• Weight: 133.1 g

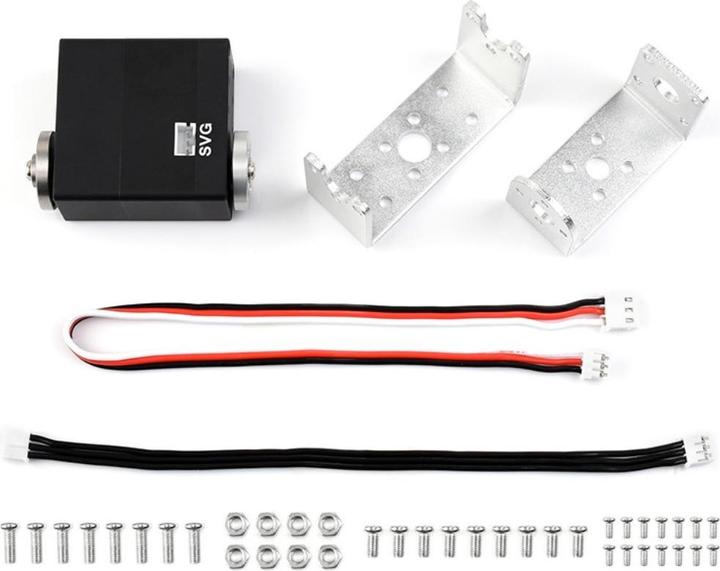

Scope of delivery:

• 1x ST3025 40 kg Serial Bus Servo
• 1x screw set
• 2x servo cable

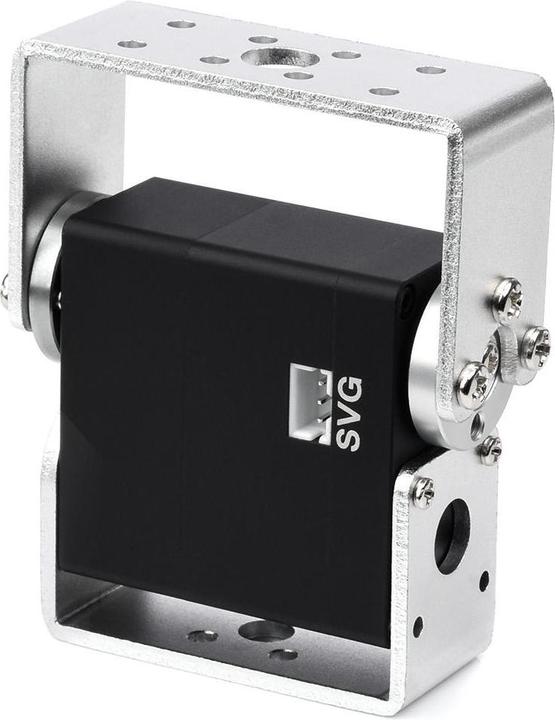

• 2x servo bracket.
